Model
Bosch NGM5453UC/01
Gas Cooktop
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
NGM5453UC/01Gas Cooktop
4 diagrams37 parts
Parts Sections (4)
Diagram

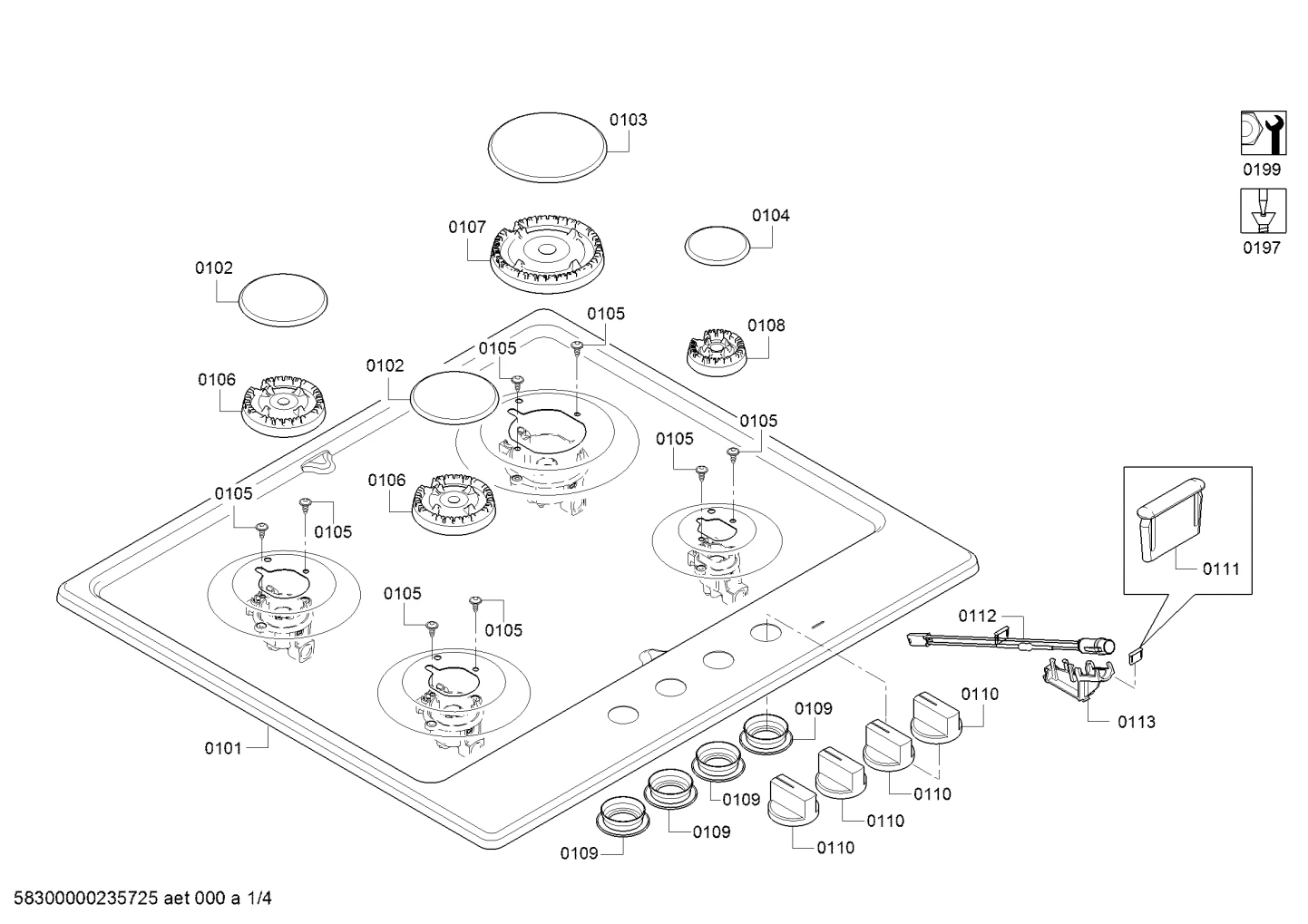

burnercaps rings, hobtops (0101-0199)
Parts in burnercaps rings, hobtops (0101-0199)
15 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 | – | 10029078 Hob top | - |
| 0102 |  | Burner cap | $12.80 PartSelect |
| 0103 |  | Burner cap | $5.75 RepairClinic |
| 0104 |  | Burner cap | - |
| 0105 |  | Screw | $24.27 Part Advantage |
| 0106 |  | Diffuser | $27.00 ApplianceParts Pro |
| 0107 |  | Diffuser | - |
| 0108 |  | Diffuser | - |
| 0109 |  | Sealing | - |

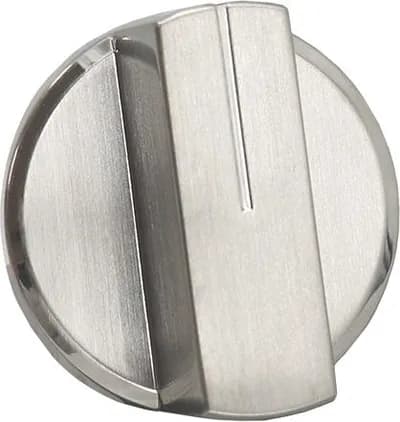

| 0110 |  | Knob-cooking area | $50.58 Parts Dr |
| 0111 |  | Lens | - |
| 0112 |  | Lamp | - |
| 0113 | | Lightguide | - |
| 0114 |  | Simmer Cap | - |
| 0199 | | Part not included in this appliance | - |
