Model
Bosch NGP942UC/01
Gas Cooktop
Parts Sections (3)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
NGP942UC/01Gas Cooktop
3 diagrams49 parts
Parts Sections (3)
Diagram

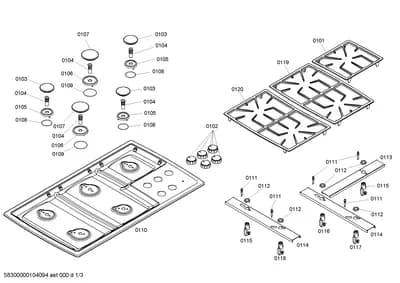

Flaps & Holders, shelves trays (0101-0154)
Parts in Flaps & Holders, shelves trays (0101-0154)
25 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | 00142542NLA Grille | Discontinued |
| 0102 | | Knob | - |
| 0103 |  | Burner cap | $66.94 Parts Dr |
| 0104 |  | Tube | $27.62 Part Advantage |

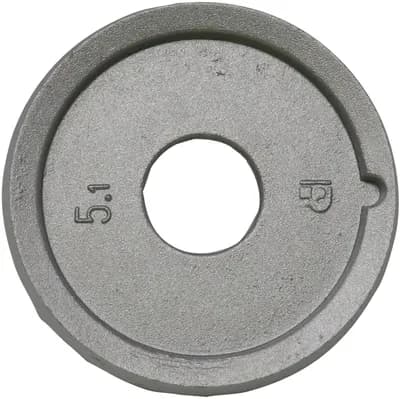

| 0105 |  | Base | $60.44 Part Advantage |
| 0106 |  | Base | $33.90 Part Advantage |
| 0107 |  | Burner cap | $99.37 Part Advantage |
| 0108 |  | Seal | $6.00 RepairClinic |
| 0109 |  | 00189317NLA Seal | Discontinued |
| 0110 | | Hob top | - |
| 0111 |  | Ignition head | $25.53 Part Advantage |
| 0112 |  | Nut | - |
| 0113 | | Bracket | - |
| 0114 |  | Bracket | $70.01 ApplianceParts Pro |
| 0115 |  | Jet Holder | $35.08 RepairClinic |
| 0116 |  | Jet Holder | $54.23 Part Advantage |

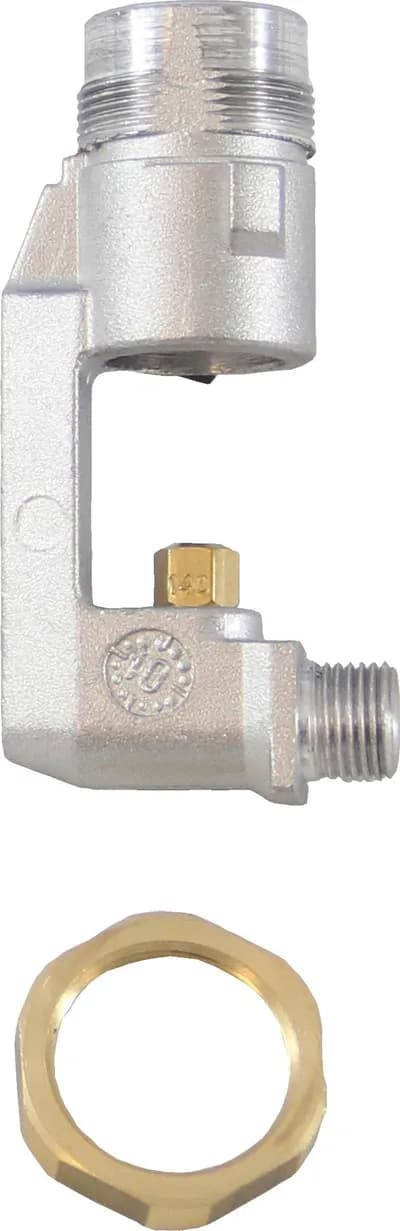

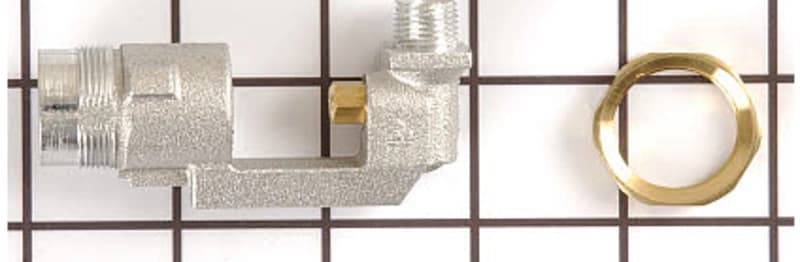

| 0117 |  | Holder | $57.55 Part Advantage |
| 0118 |  | Holder | - |
| 0119 | | Grille | - |
| 0120 | | 00664947NLA Grid | Discontinued |

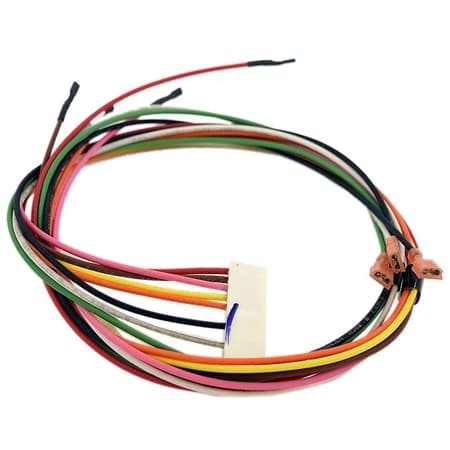

| 0150 | | Cable harness | - |
| 0151 |  | Cable harness | - |
| 0152 |  | Bracket | $33.18 Parts Dr |
| 0153 |  | Ring | $4.19 Part Advantage |
| 0154 |  | Grate Feet | $16.74 Part Advantage |
