Model
Bosch NIT5066UC/01
Induction Cooktop
Parts Sections (2)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
NIT5066UC/01Induction Cooktop
2 diagrams41 parts
Parts Sections (2)
Diagram

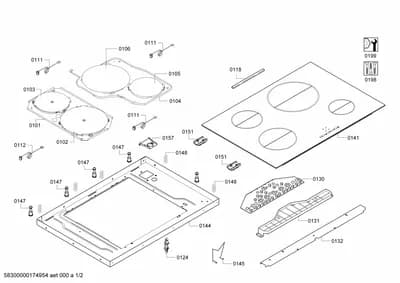

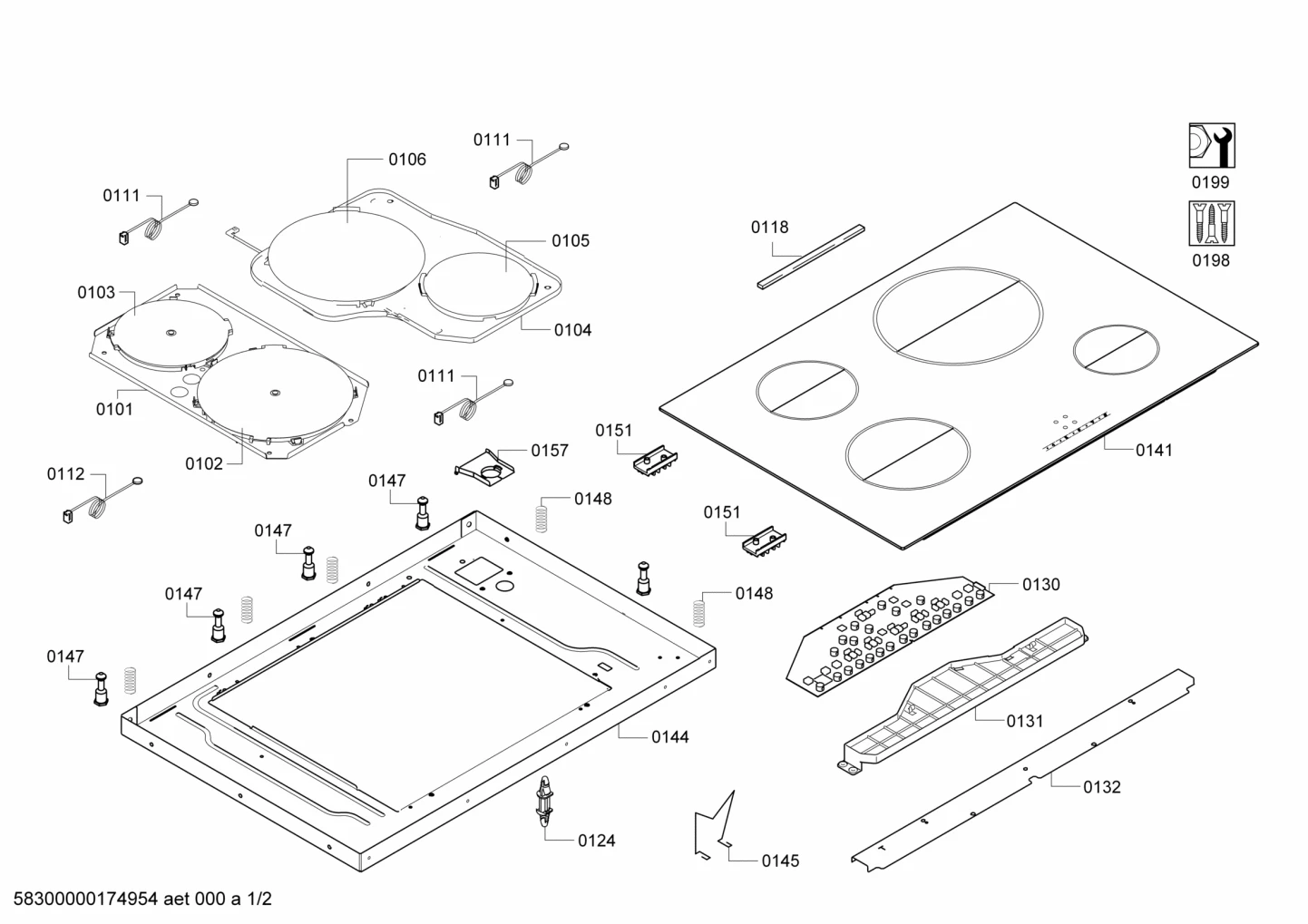

Door & Housing, doors & housing (0101-0199)
Parts in Door & Housing, doors & housing (0101-0199)
27 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | Induction hotplate | - |
| 0102 |  | Cover | - |
| 0103 |  | Cover | - |
| 0104 |  | 00673378NLA Induction hotplate | Discontinued |
| 0105 | | Cover | - |
| 0106 |  | Cover | - |
| 0111 |  | Sensor-NTC | - |
| 0112 | | Sensor-NTC | - |
| 0118 |  | Sealing | $6.41 PartSelect |
| 0121 |  | Cover | - |
| 0124 |  | Holder | - |
| 0130 |  | Operating module | $169.49 PartSelect |
| 0131 |  | Cover | - |
| 0132 | | Rail | - |
| 0141 |  | Glass ceramic hob top | - |
| 0144 | | Frame | - |
| 0145 |  | Spring | - |
| 0147 | | Bolt | $9.48 ApplianceParts Pro |
| 0148 |  | Spring | $3.77 Part Advantage |
| 0151 |  | Fixing kit | - |
| 0152 |  | 00491594NLA Glass scraper | Discontinued |
| 0157 |  | Locking cap | - |
| 0199 |  | Sealant | - |
| 0199 |  | Sealant | - |
| 0199 |  | Sealing strip | $19.48 Parts Dr |
| 0199 |  | Screw-set | - |
| 0199 |  | Lubricant | - |
