Model
Bosch PCH615FAU/03
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
PCH615FAU/03
1 diagram21 parts
Parts Sections (1)
Diagram

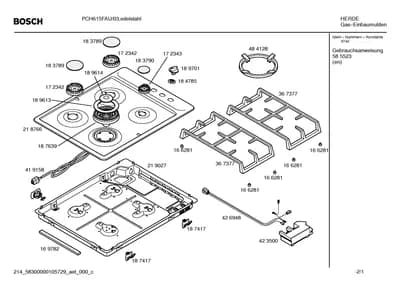

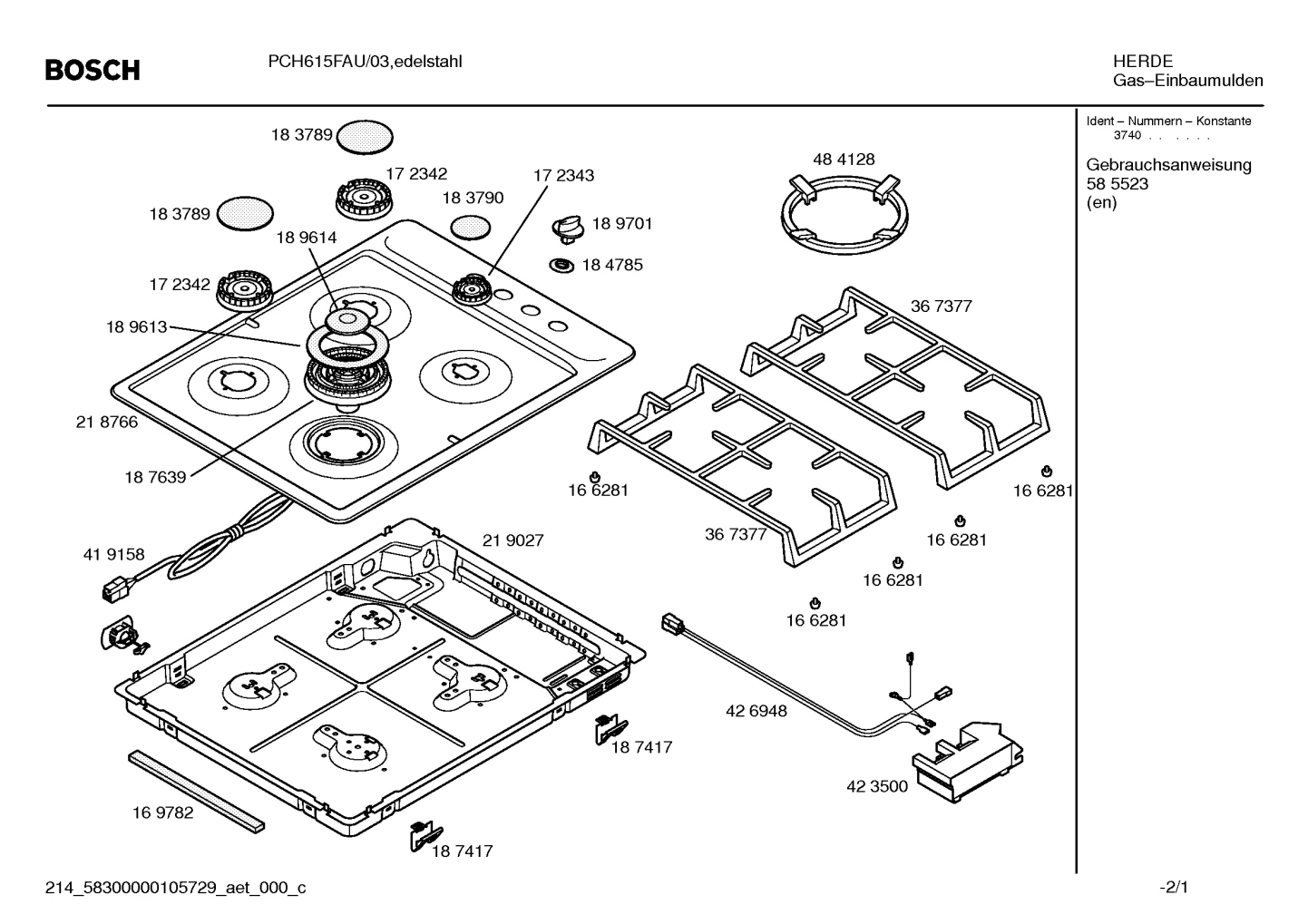

Seals & Gaskets, burnercaps rings (0005-0291)
Parts in Seals & Gaskets, burnercaps rings (0005-0291)
21 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0005 |  | Burner tip | - |
| 0010 |  | Burner tip | - |
| 0015 |  | Burner tip | - |
| 0020 |  | Burner cap | - |
| 0025 |  | Burner cap | $23.44 Part Advantage |
| 0030 |  | Burner cap | $18.41 Part Advantage |
| 0035 |  | Burner cap | - |
| 0095 |  | Ignition head | $14.13 Parts Dr |
| 0100 |  | Sealing | - |
| 0105 |  | Holder | - |
| 0110 |  | Wok Thermocouple | $24.16 ApplianceParts Pro |
| 0115 |  | Thermocouple | $36.59 Parts Dr |
| 0120 |  | Sealing | - |
| 0145 |  | Sealing | - |
| 0150 |  | Sealing | - |
| 0197 | – | 12015189 Adapter | - |
| 0205 |  | Sealing | - |
| 0210 |  | Retaining washer | $4.19 Part Advantage |
| 0225 |  | Connection | - |
| 0230 |  | Sealing | - |
| 0291 |  | Nut | - |
