Model
Bosch PCK755FAU/06
Cooktop
Parts Sections (2)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
PCK755FAU/06Cooktop
2 diagrams40 parts
Parts Sections (2)
Diagram

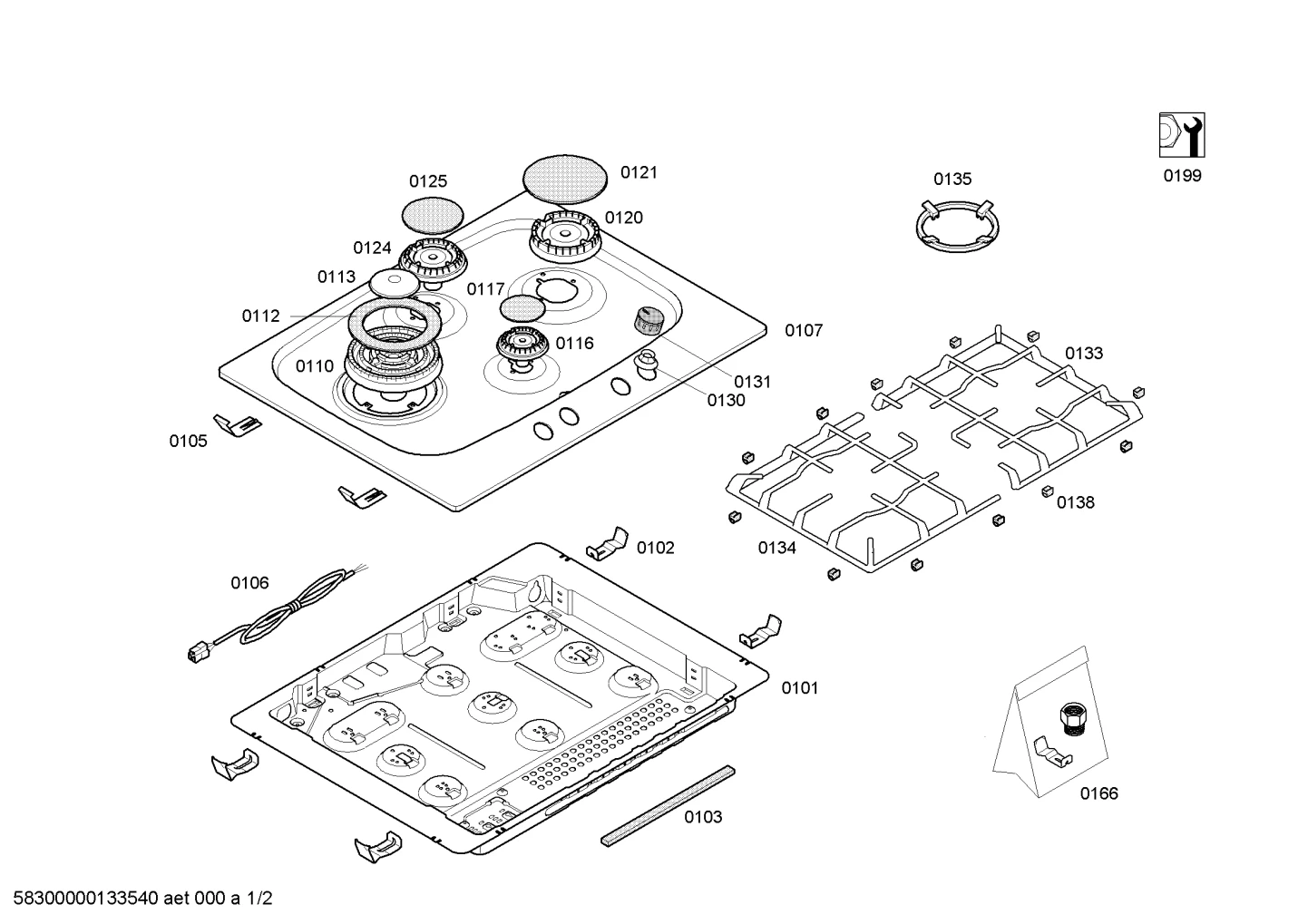

burnercaps rings, othergasparts (0102-0199)
Parts in burnercaps rings, othergasparts (0102-0199)
16 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0102 |  | Fixing kit | - |
| 0103 |  | Sealing | - |
| 0105 |  | 00418805NLA Cable strap | Discontinued |
| 0110 |  | Burner tip | - |
| 0112 |  | Burner cap | - |
| 0113 |  | Burner cap | $23.44 Part Advantage |
| 0116 |  | Burner tip | - |
| 0117 |  | Burner cap | - |
| 0120 |  | Burner tip | - |
| 0121 |  | Burner cap | - |
| 0124 |  | Burner tip | - |
| 0125 |  | Burner cap | $18.41 Part Advantage |
| 0130 |  | Sealing | - |
| 0138 |  | Rubber foot | - |
| 0197 | – | 12015189 Adapter | - |
| 0199 | | Part not included in this appliance | - |
