Model
Gaggenau RB292310/02
Refrigerator
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGaggenau
RB292310/02Refrigerator
4 diagrams31 parts
Parts Sections (4)
Diagram

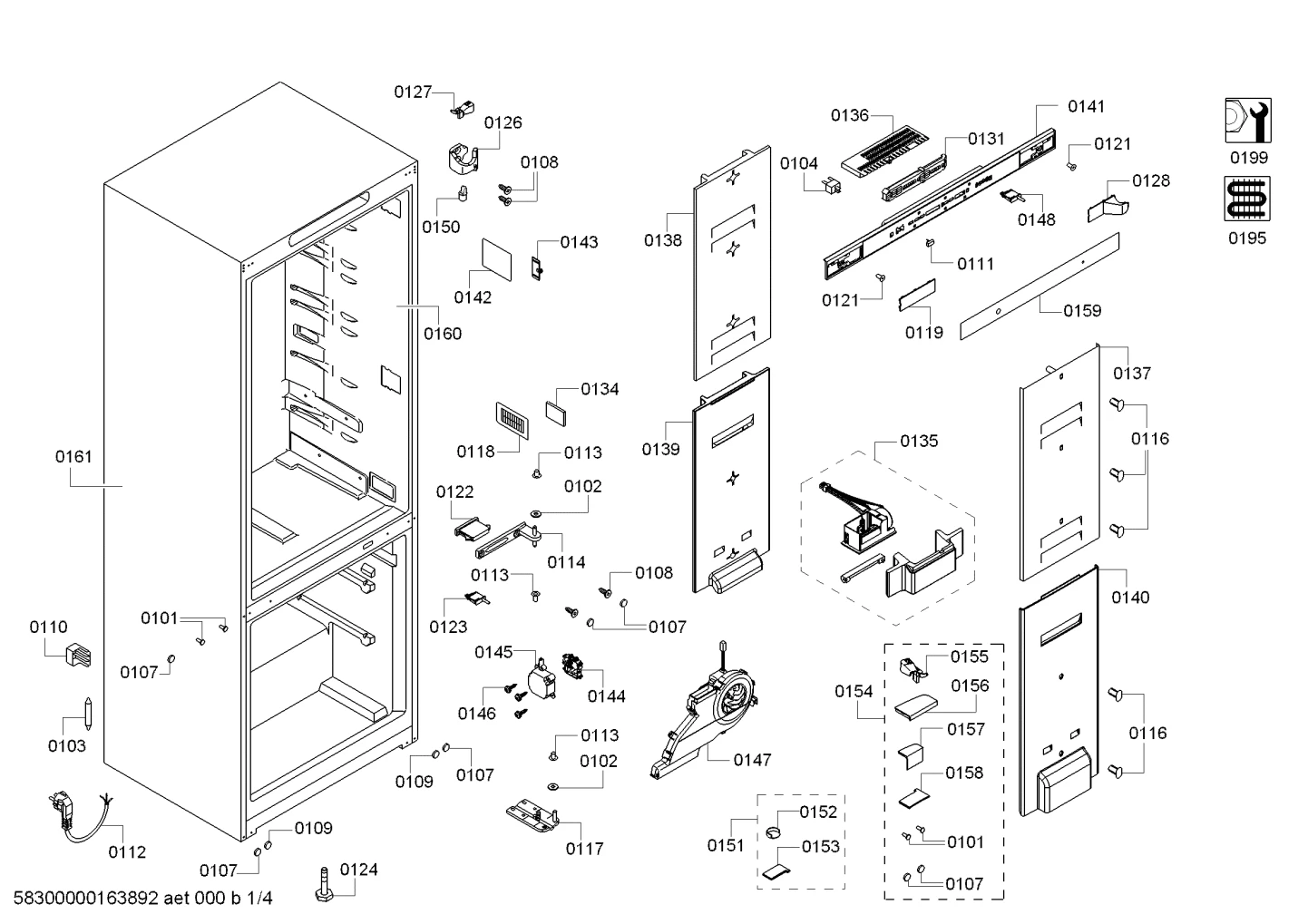

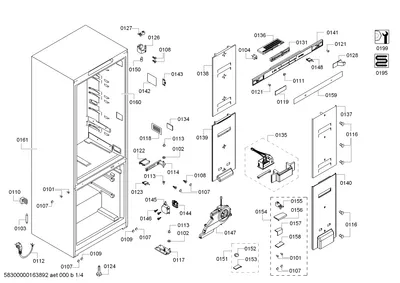

Screws, Hinges (0101-0195)
Parts in Screws, Hinges (0101-0195)
19 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | Plug | - |
| 0104 |  | Switch | $17.95 Parts Dr |
| 0108 |  | Screw | - |
| 0112 |  | Power cord | - |
| 0114 |  | Door hinge | - |
| 0116 |  | Screw | $5.40 ApplianceParts Pro |
| 0117 |  | Hinge | - |
| 0118 |  | Air grid | - |
| 0122 |  | Door latch | - |
| 0124 |  | Foot | - |
| 0126 |  | Door bearing | - |
| 0127 |  | Hinge-cover | - |
| 0134 |  | Charcoal Air Filter | $73.39 Parts Dr |
| 0142 |  | Cover | $9.67 ApplianceParts Pro |
| 0146 |  | Screw | - |
| 0150 |  | Huls | - |
| 0160 | – | 00984471 Inner liner | - |
| 0161 | – | 00984470 Panel side | - |
| 0195 | – | 00984472 Cooling circuit | - |
