Model
Gaggenau RB492301/54
Refrigerator
Parts Sections (8)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGaggenau
RB492301/54Refrigerator
8 diagrams222 parts
Parts Sections (8)
Diagram

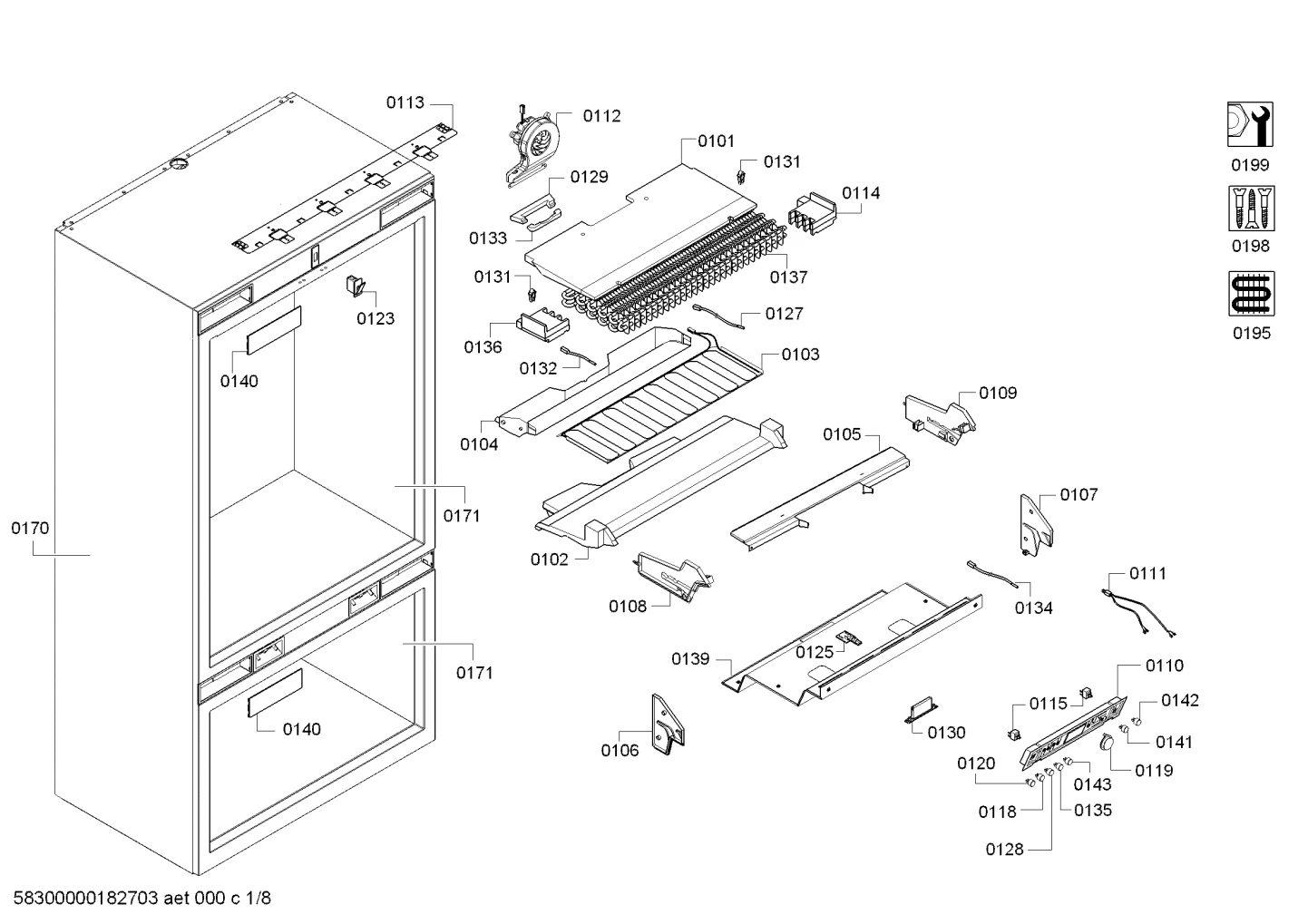

Flaps & Holders, Mounting & Fixing (0101-0199)
Parts in Flaps & Holders, Mounting & Fixing (0101-0199)
37 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | Insulating part | $21.76 PartSelect |
| 0102 |  | Insulating part | $33.14 ApplianceParts Pro |
| 0106 |  | Fixture | - |
| 0107 | | Fixture | - |
| 0108 | | Holder | - |
| 0109 | | Holder | - |
| 0111 | | Cable harness | - |
| 0113 |  | Fixture | $12.16 ApplianceParts Pro |
| 0114 | | Foam piece | - |
| 0115 |  | Switch | $17.95 Parts Dr |
| 0118 | | Key | - |
| 0119 | | Key | - |
| 0120 | | Key | - |
| 0123 |  | Door Switch | $9.21 Part Advantage |
| 0125 | | Holder | - |
| 0127 |  | Limiter-temperature | $48.13 Part Advantage |
| 0128 | | Key | - |
| 0129 |  | Support | - |
| 0130 |  | Charcoal Air Filter | $32.20 RepairClinic |
| 0131 | | Holder | $4.18 ApplianceParts Pro |
| 0132 |  | Sensor | $14.65 Part Advantage |
| 0133 |  | Support | - |
| 0134 |  | Sensor-NTC | $12.14 Part Advantage |
| 0135 | | Key | - |
| 0136 |  | Foam piece | $7.68 PartSelect |
| 0137 |  | Evaporator | $127.32 ApplianceParts Pro |
| 0139 | | Screw | $4.67 ApplianceParts Pro |
| 0139 | | Worktop | - |
| 0140 |  | Cover | $2.88 RepairClinic |
| 0141 | | Key | - |
| 0142 | | Key | - |
| 0143 | | Key | - |
| 0170 | – | 00984470 Panel side | - |
| 0171 | – | 00984471 Inner liner | - |
| 0199 |  | Insulating part | $6.47 Parts Dr |
| 0199 |  | Hose | - |
| 0199 |  | Nut | $1.73 RepairClinic |
