Model
Gaggenau RC282203/02
Refrigerator
Parts Sections (4)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGaggenau
RC282203/02Refrigerator
4 diagrams30 parts
Parts Sections (4)
Diagram

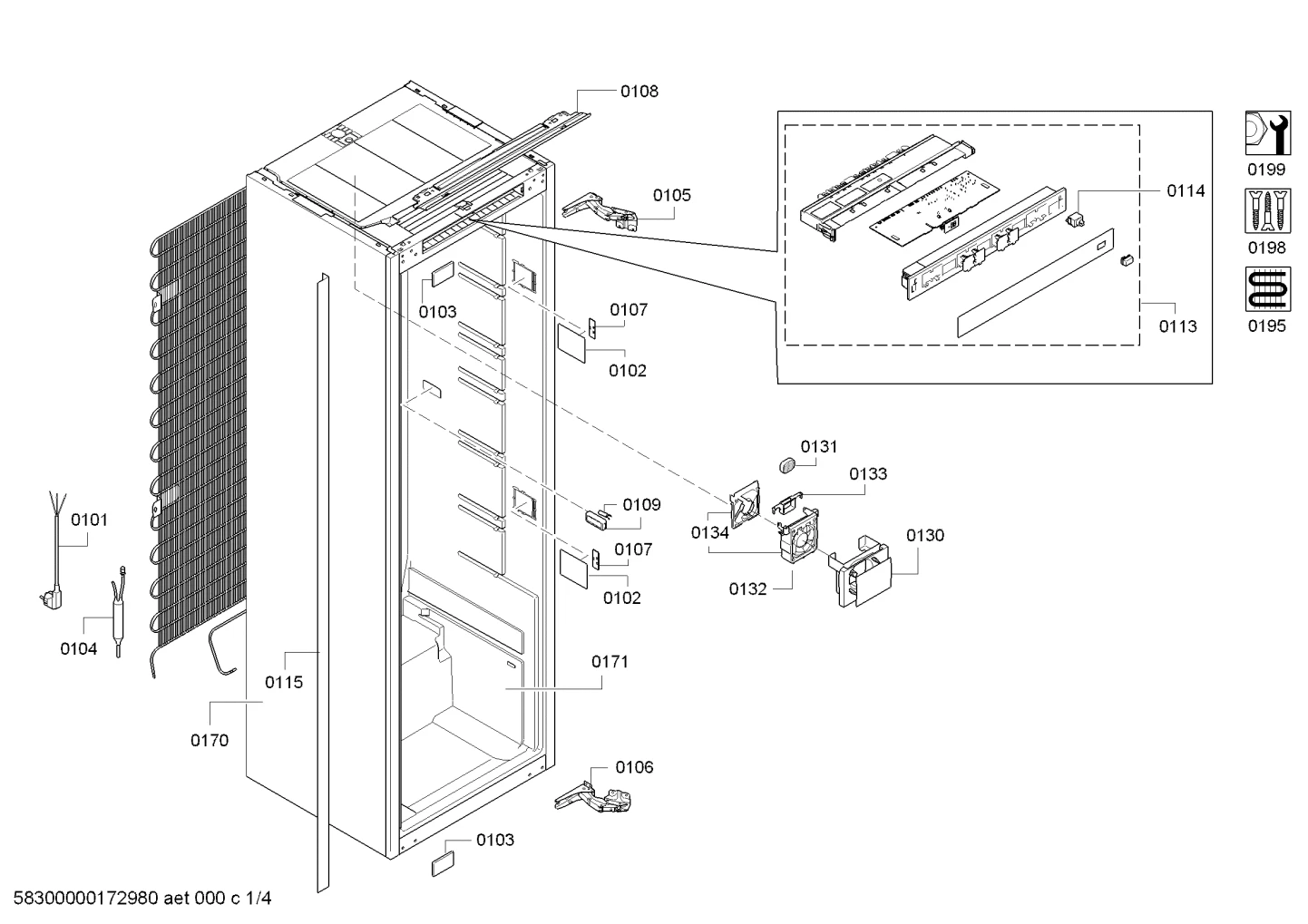

Hinges, Door & Housing (0102-0199)
Parts in Hinges, Door & Housing (0102-0199)
15 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0102 |  | Cover | $9.67 ApplianceParts Pro |
| 0103 |  | Cover | - |
| 0104 |  | Dryer | $77.42 Part Advantage |
| 0105 |  | Door hinge | - |
| 0106 |  | Door hinge | - |
| 0109 |  | Chamber temperature sensor | $37.25 Part Advantage |
| 0114 |  | Switch | $17.95 Parts Dr |
| 0115 |  | 23001273NLA Strip | Discontinued |
| 0131 |  | Charcoal Air Filter | $73.39 Parts Dr |
| 0198 |  | Hinge pin | - |
| 0198 |  | Fixing kit | - |
| 0199 |  | Repair-set | - |
| 0199 |  | Fixture | - |
| 0199 |  | Repair-set | - |
| 0199 | – | 10026699 Repair-set | - |
