Model
Gaggenau RC282305/01
Refrigerator
Parts Sections (5)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGaggenau
RC282305/01Refrigerator
5 diagrams51 parts
Parts Sections (5)
Diagram

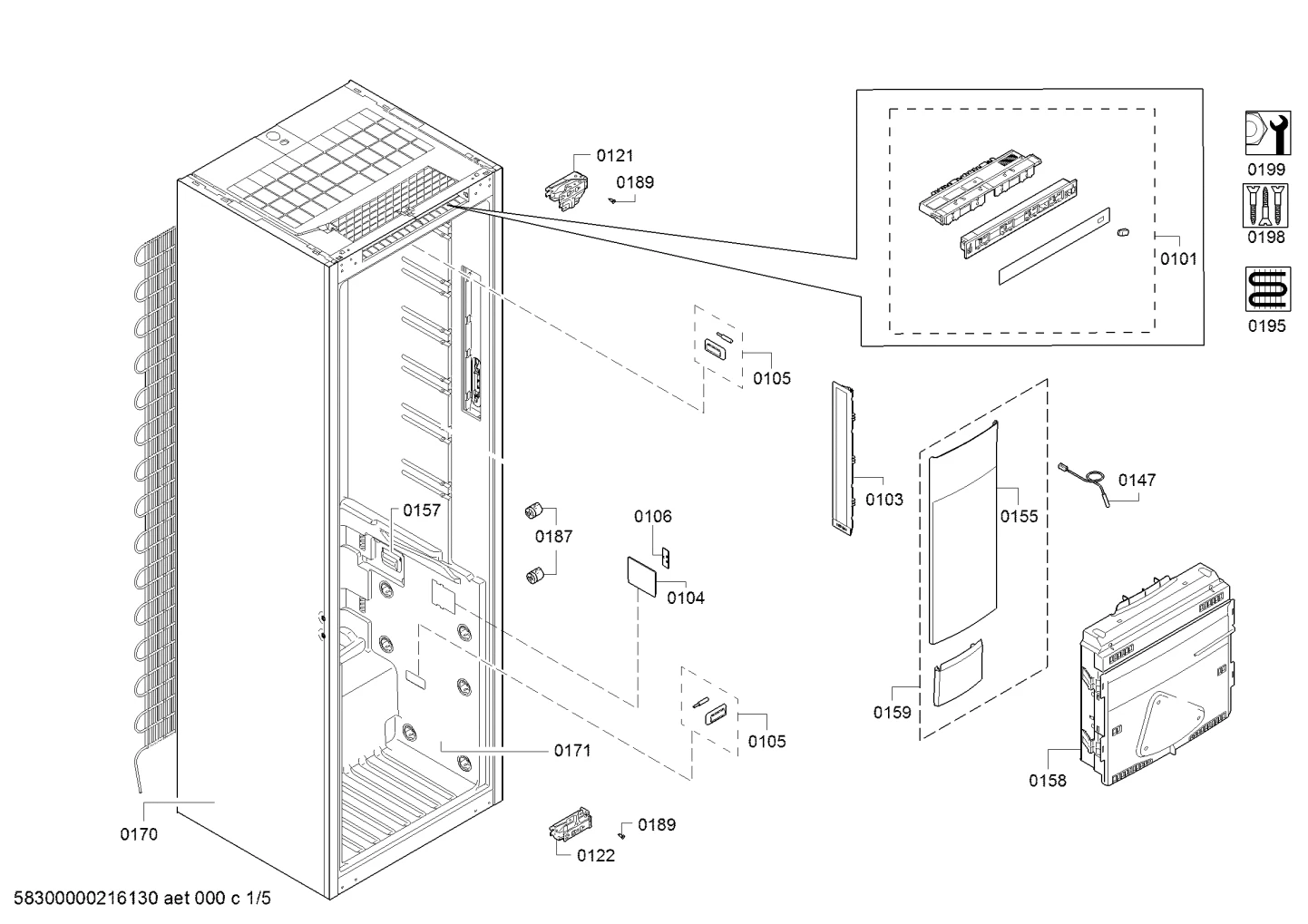

Door & Housing, Mounting & Fixing (0103-0199)
Parts in Door & Housing, Mounting & Fixing (0103-0199)
18 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0103 |  | Diode-led | - |
| 0104 |  | Cover | $9.67 ApplianceParts Pro |
| 0105 |  | Chamber temperature sensor | $37.25 Part Advantage |
| 0106 |  | LED-plate | - |
| 0121 |  | Door hinge | - |
| 0122 |  | Door hinge | - |
| 0155 |  | Cover | - |
| 0157 |  | Cover | - |
| 0158 |  | Pressure chamber | - |
| 0170 | – | 00984470 Panel side | - |
| 0171 | – | 00984471 Inner liner | - |
| 0187 |  | Fixture | - |
| 0189 |  | Screw | $6.40 PartSelect |
| 0195 | – | 00984472 Cooling circuit | - |
| 0198 |  | Mounting set | - |
| 0199 |  | Fixture | - |
| 0199 |  | Repair-set | - |
| 0199 | – | 10026699 Repair-set | - |
