Model
Gaggenau RC462200/10
Refrigerator
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelGaggenau
RC462200/10Refrigerator
6 diagrams163 parts
Parts Sections (6)
Diagram

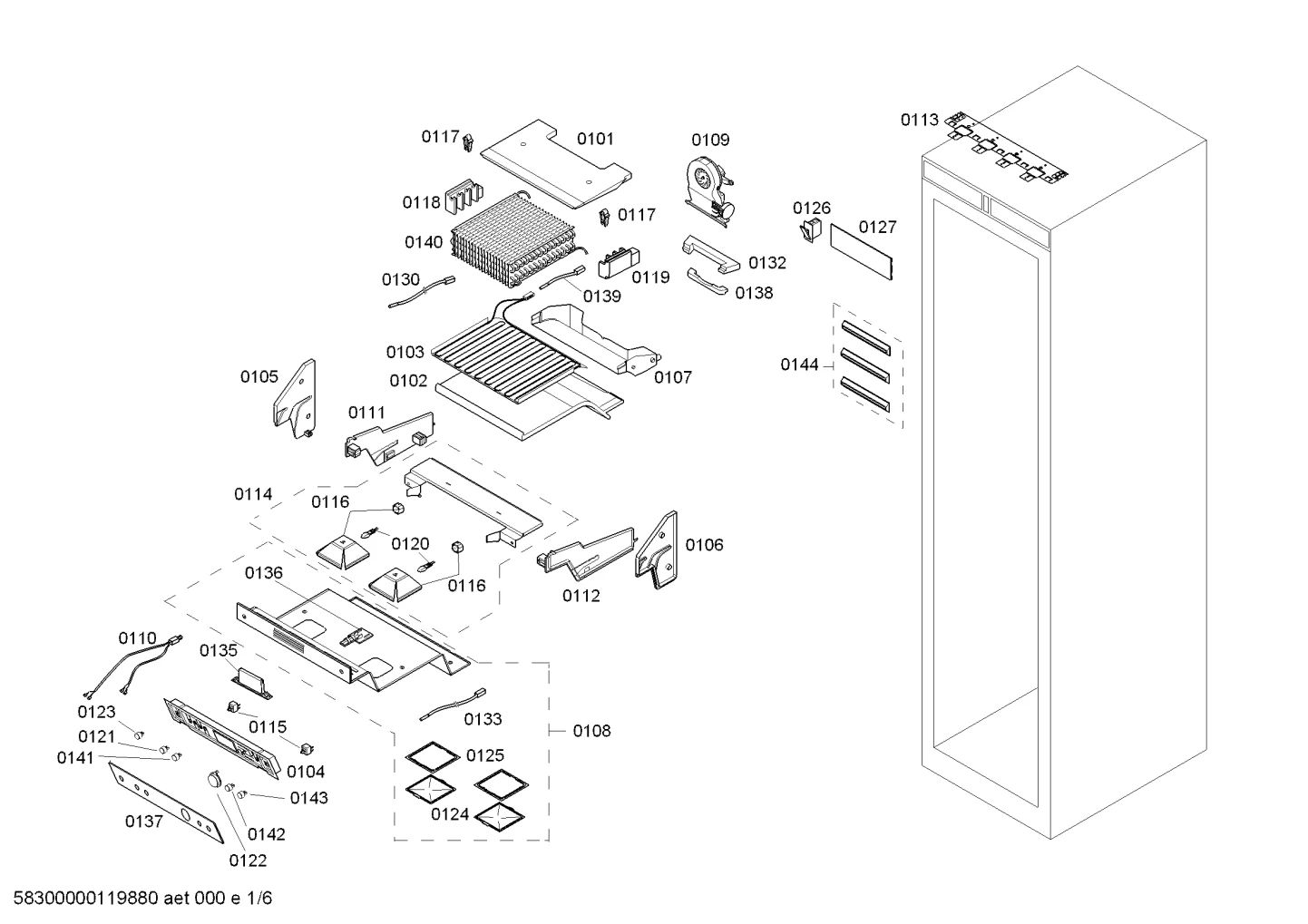

Flaps & Holders, Door & Housing (0101-0199)
Parts in Flaps & Holders, Door & Housing (0101-0199)
40 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | Insulating part | - |
| 0102 |  | Insulating part | - |
| 0104 |  | Operating module | - |
| 0105 | | Holder | - |
| 0106 |  | Holder | - |
| 0108 | | Worktop | - |
| 0109 |  | Fan motor | - |
| 0111 | | Holder | - |
| 0112 | | Holder | - |
| 0113 |  | Fixture | $11.45 ApplianceParts Pro |
| 0115 |  | Switch | $17.95 Parts Dr |
| 0116 | | Reflector | - |
| 0117 |  | Holder | $6.41 PartSelect |
| 0118 |  | Insulating part | - |
| 0119 |  | Insulating part | - |
| 0120 |  | Halogen lamp | $15.95 ApplianceParts Pro |
| 0121 | | Button | - |
| 0122 | | Key | - |
| 0123 | | Button | - |
| 0124 |  | Cover | - |
| 0125 |  | Holder | - |
| 0126 |  | Door Switch | $9.21 Part Advantage |
| 0127 | | Cover | $5.57 ApplianceParts Pro |
| 0130 |  | Sensor | $14.65 Part Advantage |
| 0132 |  | Support | - |
| 0133 |  | Sensor-NTC | $12.48 Parts Dr |
| 0135 |  | Charcoal Air Filter | $32.20 RepairClinic |
| 0136 | | Cover | - |
| 0137 | | Panel | - |
| 0138 |  | Support | - |
| 0139 |  | Fuse-thermal | $65.00 Part Advantage |
| 0140 | | Installation set | - |
| 0141 | | Button | - |
| 0142 | | Button | - |
| 0143 | | Button | - |
| 0144 |  | Air grid | - |
| 0199 |  | Screw | $3.34 ApplianceParts Pro |
| 0199 |  | Screw | $4.19 Part Advantage |
| 0199 | | Insulating part | - |
| 0199 |  | Nut | $1.73 RepairClinic |
