Model
Bosch SHE23R56UC/64
Dishwasher
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
SHE23R56UC/64Dishwasher
6 diagrams134 parts
Parts Sections (6)
Diagram

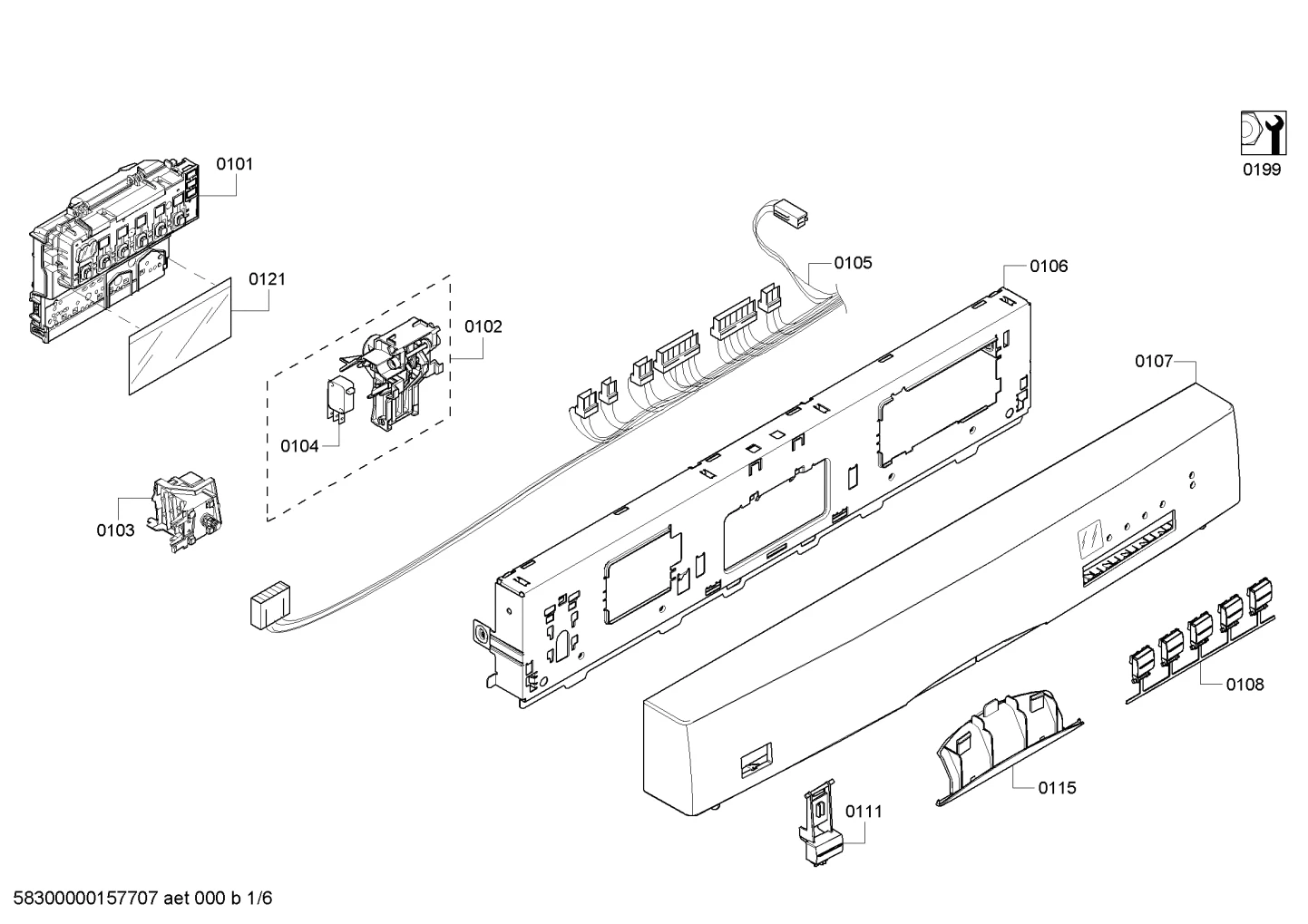

Switches, Flaps & Holders (0101-0199)
Parts in Switches, Flaps & Holders (0101-0199)
13 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | Controller unit | $172.50 PartSelect |
| 0102 |  | 00654621NLA Door latch | Discontinued |
| 0103 |  | On/Off Main Switch | $48.55 Part Advantage |
| 0104 |  | Switch | - |
| 0105 |  | Cable harness | - |
| 0106 |  | Holder | $44.36 Part Advantage |
| 0107 |  | Panel-facia | $68.86 PartSelect |
| 0108 |  | Push button set | $19.67 Part Advantage |
| 0111 |  | Key | $10.04 Part Advantage |
| 0115 |  | Latch Cover | $17.58 Part Advantage |
| 0120 |  | Support | - |
| 0121 |  | Insulating-/protection sleeve | - |
| 0199 |  | 00617210NLA Hard Water Test Strip | Discontinued |
