Model
Bosch SHE3AR76UC/27
Dishwasher
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
SHE3AR76UC/27Dishwasher
6 diagrams111 parts
Parts Sections (6)
Diagram

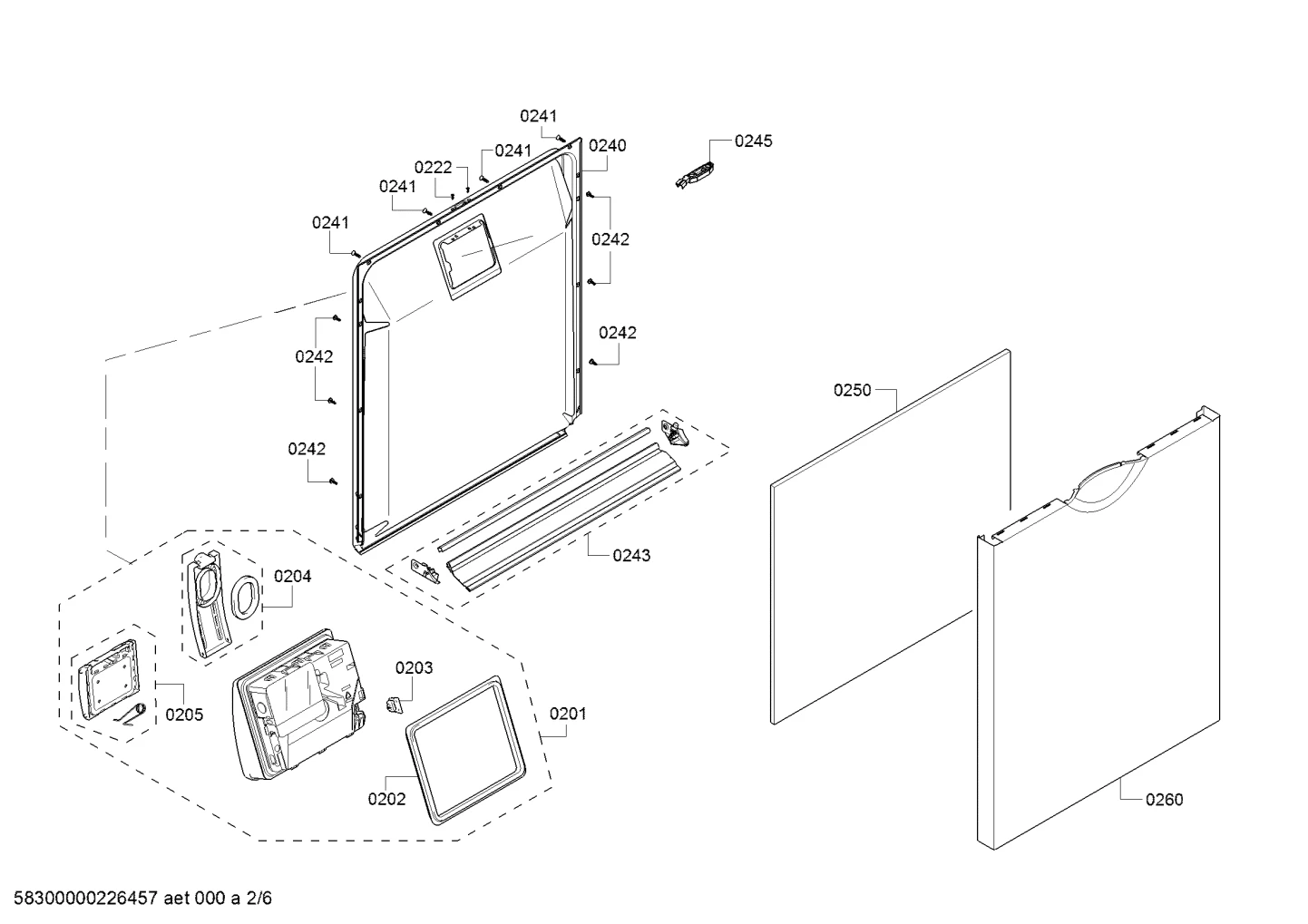

Seals & Gaskets, Lids & Covers (0201-8110)
Parts in Seals & Gaskets, Lids & Covers (0201-8110)
16 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0201 |  | Dispenser | $46.87 Part Advantage |
| 0202 |  | Sealing | $14.59 Parts Dr |
| 0203 |  | Sensor | $23.02 Part Advantage |
| 0204 |  | Lid | $19.67 Part Advantage |
| 0205 |  | Lid | - |
| 0222 |  | Screw | $3.35 Part Advantage |
| 0240 |  | Door-inner | $105.89 Part Advantage |
| 0241 |  | Screw | $9.21 Part Advantage |
| 0242 |  | Screw | $6.70 Part Advantage |
| 0243 |  | Seal-door | $20.51 Part Advantage |
| 0245 |  | Lock | $19.25 Part Advantage |
| 0246 |  | Guide | - |
| 0250 |  | Insulating part | - |
| 0260 |  | Door-outer | $70.93 Parts Dr |
| 8102 |  | Micro-Filter | $11.95 ApplianceParts Pro |
| 8110 |  | Tall/Large Item Sprinkler Head | $13.96 Parts Dr |
