Model
Bosch SHE46C05UC/48
Dishwasher
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
SHE46C05UC/48Dishwasher
6 diagrams137 parts
Parts Sections (6)
Diagram

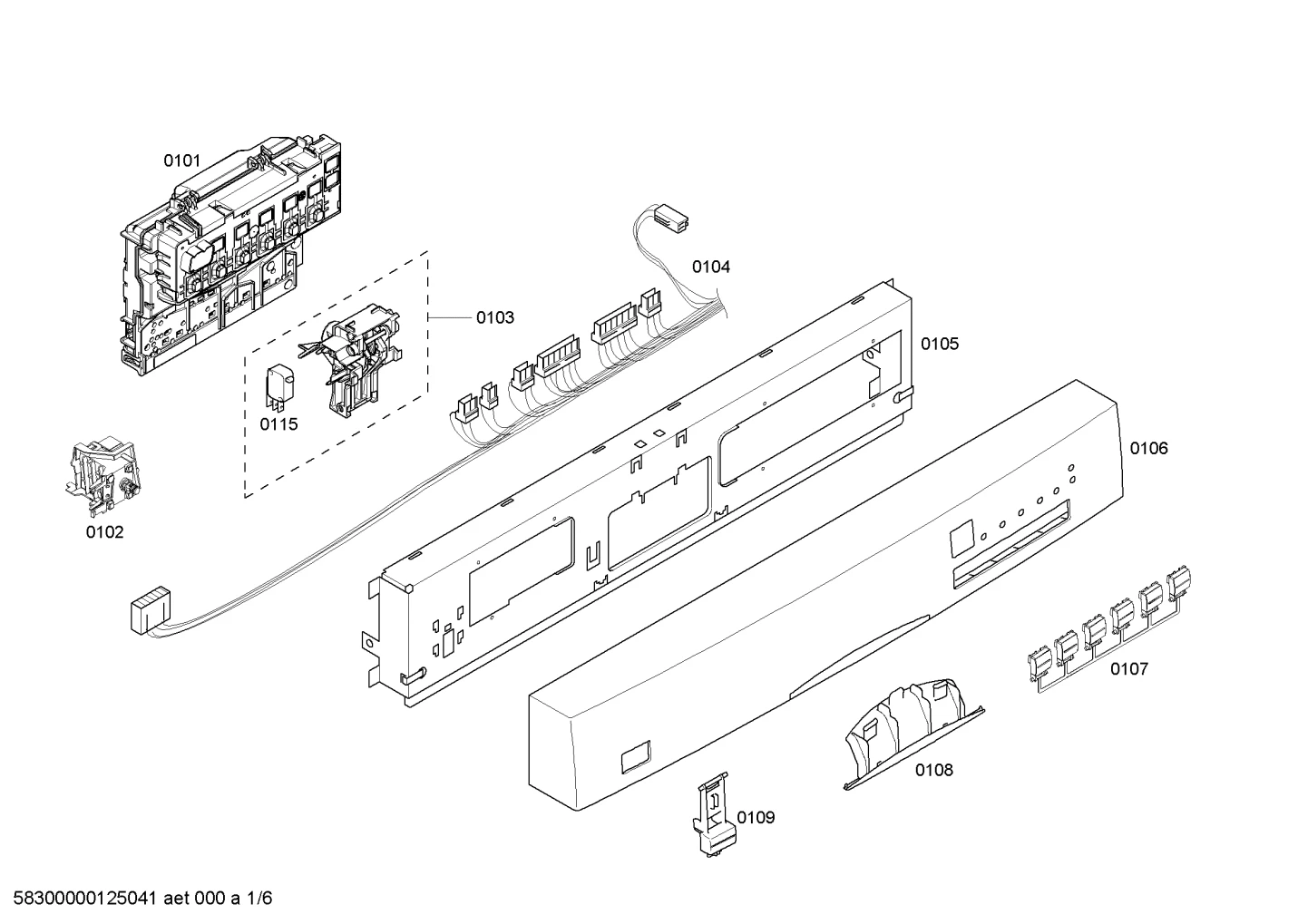

Switches, Flaps & Holders (0101-8102)
Parts in Switches, Flaps & Holders (0101-8102)
12 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | Controller unit | $279.99 Parts Dr |
| 0102 |  | On/Off Main Switch | $48.55 Part Advantage |
| 0103 |  | Ball Bearing Door Latch | $48.55 Part Advantage |
| 0104 |  | Cable harness | - |
| 0105 |  | Holder | $44.36 Part Advantage |
| 0106 |  | Panel-facia | $145.51 PartSelect |
| 0107 |  | 00600071NLA Key | Discontinued |
| 0108 |  | Latch Cover | $17.58 Part Advantage |
| 0109 |  | Pushbutton | $16.74 Part Advantage |
| 0115 |  | Switch | - |
| 8101 |  | Micro-Filter | $11.95 ApplianceParts Pro |
| 8102 |  | Power cord extended | $38.40 PartSelect |
