Model
Bosch SHE56C02UC/17
Dishwasher
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
SHE56C02UC/17Dishwasher
6 diagrams133 parts
Parts Sections (6)
Diagram

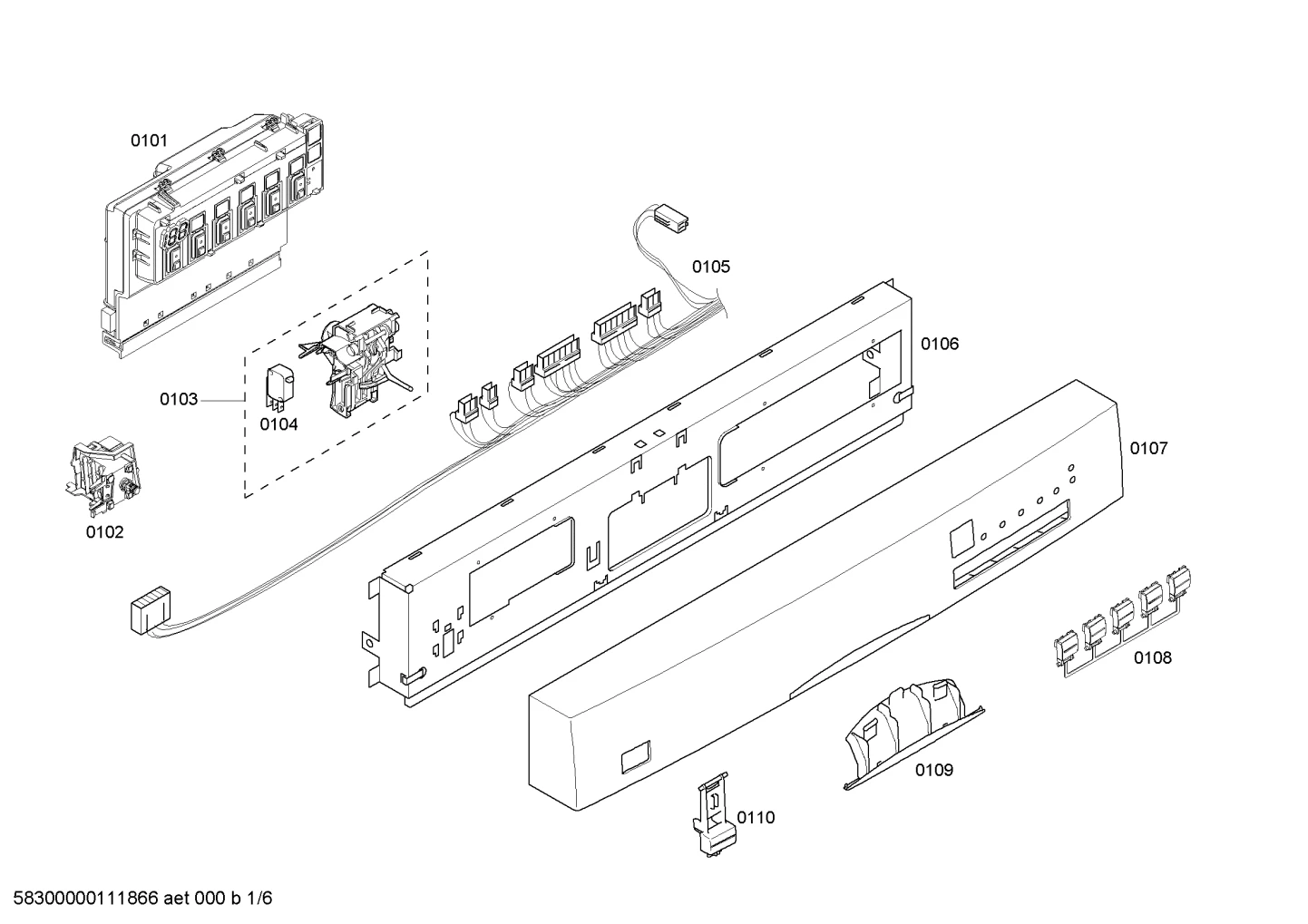

Switches, Flaps & Holders (0101-0110)
Parts in Switches, Flaps & Holders (0101-0110)
10 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | Control unit | $269.96 ApplianceParts Pro |
| 0102 |  | On/Off Main Switch | $48.55 Part Advantage |
| 0103 |  | Ball Bearing Door Latch | $48.55 Part Advantage |
| 0104 |  | Switch | - |
| 0105 |  | 00444844NLA Cable harness | Discontinued |
| 0106 |  | Holder | $44.36 Part Advantage |
| 0107 |  | 00444917NLA Panel-facia | Discontinued |
| 0108 |  | Push button set | $30.92 Parts Dr |
| 0109 |  | Latch Cover | $17.58 Part Advantage |
| 0110 |  | Key | $12.07 Parts Dr |
