Model
Bosch SHE58C06UC/50
Dishwasher
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
SHE58C06UC/50Dishwasher
6 diagrams152 parts
Parts Sections (6)
Diagram

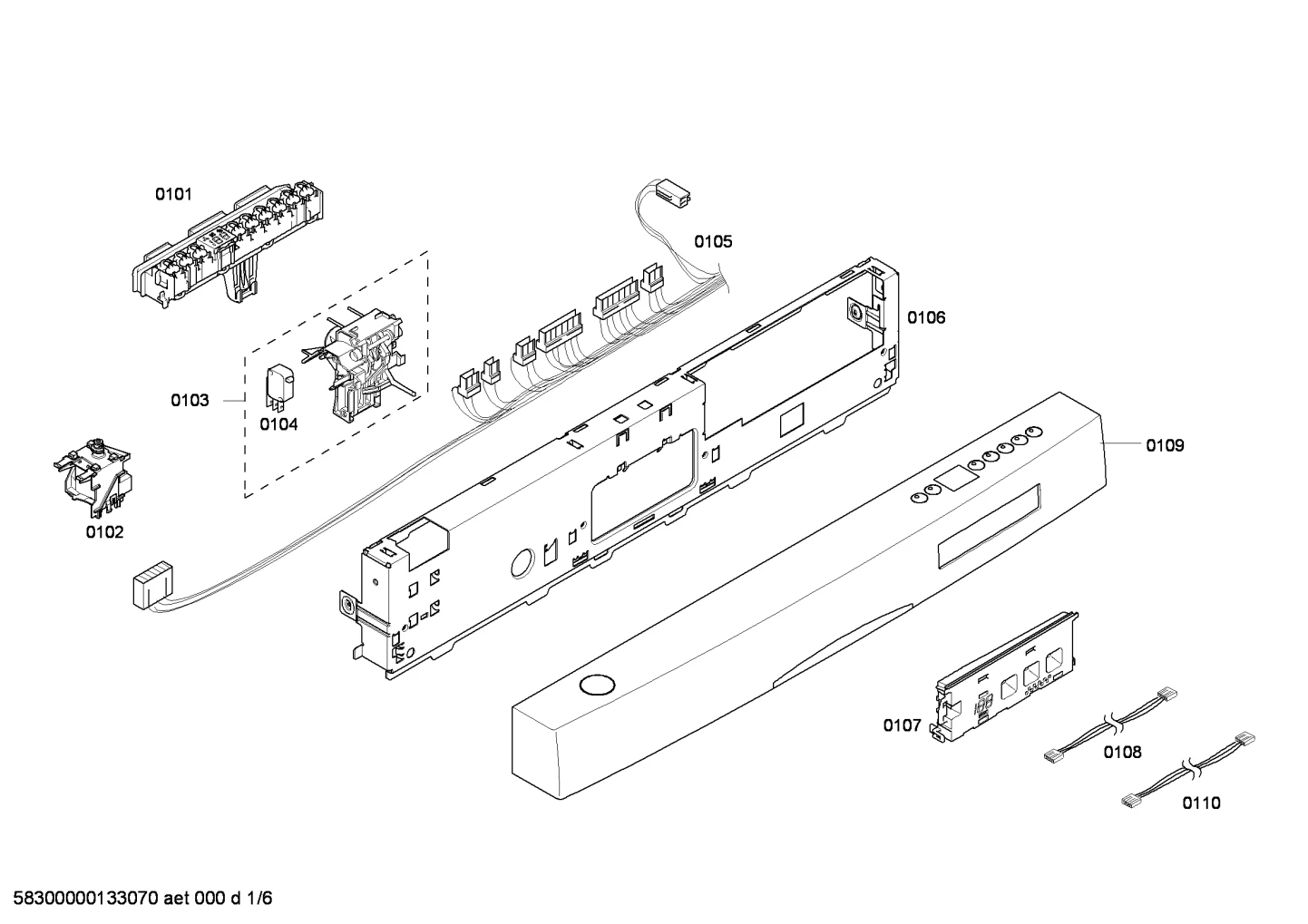

Switches, Door & Housing (0101-8103)
Parts in Switches, Door & Housing (0101-8103)
13 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | Controller unit | - |
| 0102 |  | On/Off Main Switch | $48.55 Part Advantage |
| 0103 |  | Lock | $109.78 Parts Dr |
| 0104 |  | Switch | - |
| 0105 |  | Cable harness | - |
| 0106 |  | Frame | - |
| 0107 |  | 00424674NLA PC board | Discontinued |
| 0108 |  | Cable harness | - |
| 0109 |  | 00477283NLA Panel-facia | Discontinued |
| 0110 |  | Cable harness | - |
| 8101 |  | Micro-Filter | $11.95 ApplianceParts Pro |
| 8102 |  | Drain Hose Extension Kit | $18.84 Part Advantage |
| 8103 |  | Power cord extended | $38.40 PartSelect |
