Model
Bosch SHE99C05UC/48
Dishwasher
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
SHE99C05UC/48Dishwasher
6 diagrams156 parts
Parts Sections (6)
Diagram

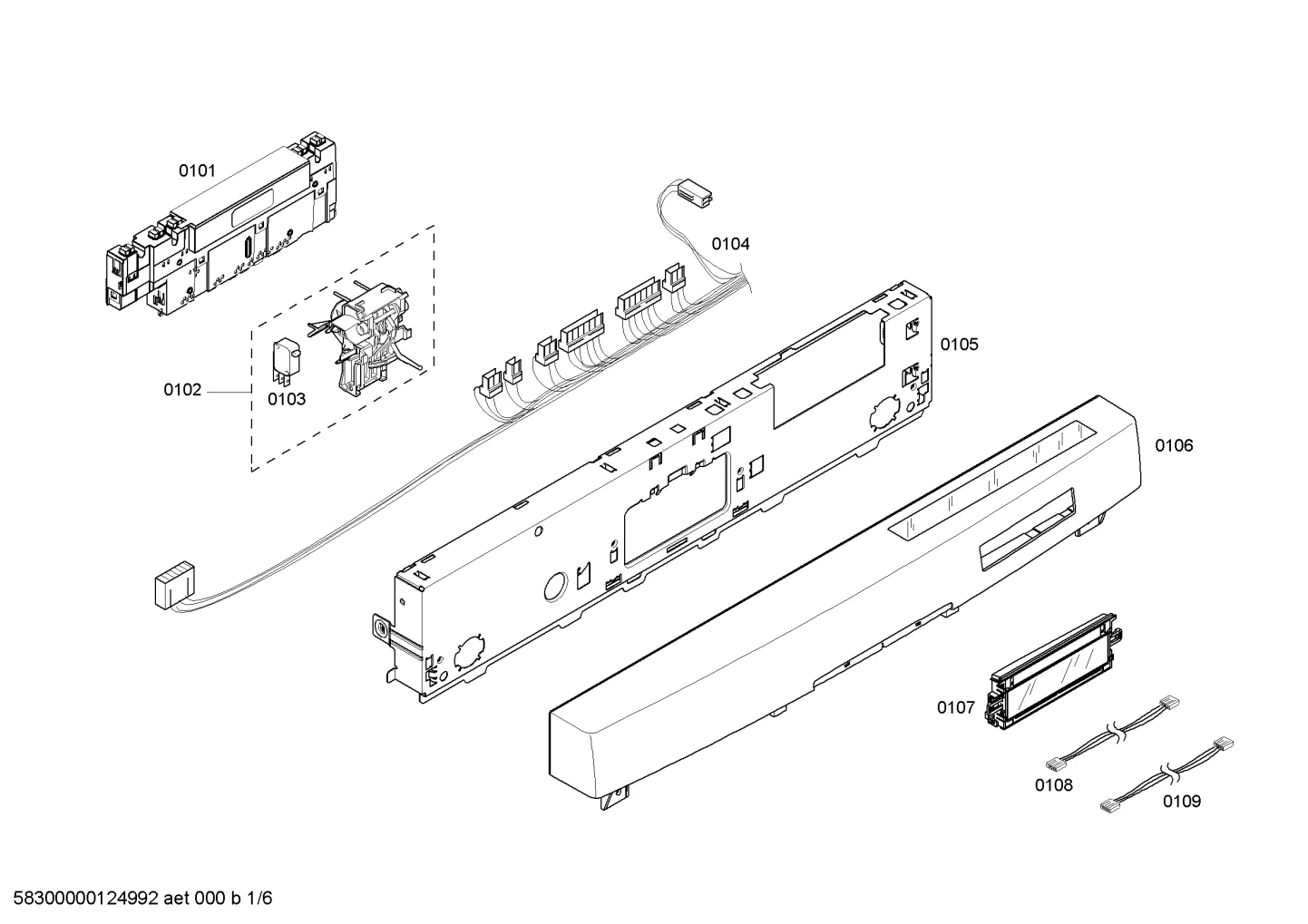

Switches, Door & Housing (0101-8101)
Parts in Switches, Door & Housing (0101-8101)
10 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | Operating module | - |
| 0102 |  | Lock | $109.78 Parts Dr |
| 0103 |  | Switch | - |
| 0104 |  | Cable harness | - |
| 0105 |  | Frame | - |
| 0106 |  | Panel-facia | $110.25 RepairClinic |
| 0107 |  | Display module | - |
| 0108 |  | Cable harness | - |
| 0109 |  | Cable harness | - |
| 8101 |  | Micro-Filter | $11.95 ApplianceParts Pro |
