Model
Bosch SHI4306UC/12
Dishwasher
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
SHI4306UC/12Dishwasher
1 diagram131 parts
Parts Sections (1)
Diagram

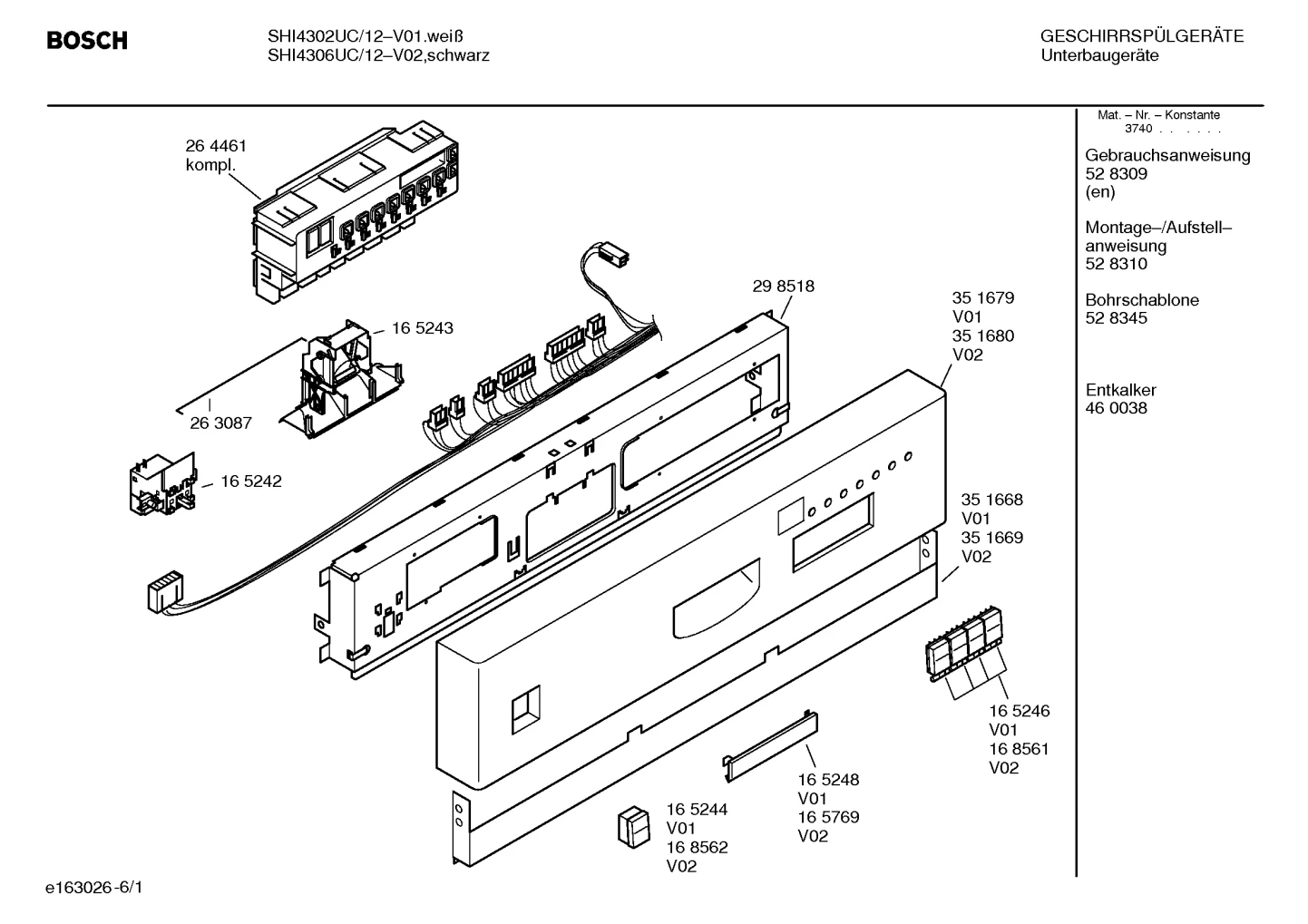

Seals & Gaskets, Flaps & Holders (0001-3001)
Parts in Seals & Gaskets, Flaps & Holders (0001-3001)
138 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0001 |  | 00264461NLA Control module | Discontinued |
| 0004 |  | 00165242NLA Switch | Discontinued |
| 0005 |  | Rod | - |
| 0006 |  | Lock | $70.95 ApplianceParts Pro |
| 0007 |  | Frame | $37.23 ApplianceParts Pro |
| 0008 | | 00351680NLA Panel frame | Discontinued |
| 0009 | | 00168562NLA Key | Discontinued |
| 0010 |  | Key | - |
| 0011 |  | Cover | $10.88 Part Advantage |
| 0012 | | Strip | - |
| 0014 | | 00528309NLA Instruction manual | Discontinued |
| 0015 | | Installation instructions | - |
| 0016 | | Installation instructions | - |
| 0020 |  | 00490467NLA Dispenser | Discontinued |
| 0021 |  | Sealing | $12.20 Parts Dr |
| 0022 |  | Detergent Lid | $39.34 Part Advantage |
| 0023 |  | Lid | $7.96 Part Advantage |
| 0024 |  | Repair-set | $9.63 Part Advantage |
| 0025 |  | Adjusting device | - |
| 0026 |  | Lever, Wrap, Seal | $11.72 Part Advantage |
| 0027 |  | Plunger | - |
| 0030 |  | Actuator | $21.56 Parts Dr |
| 0031 |  | Repair-set | - |
| 0032 |  | Switch | $20.93 Part Advantage |
| 0033 |  | Door-inner | - |
| 0035 |  | Door Seal | $55.48 Part Advantage |
| 0037 |  | Insulating plate | - |
| 0038 | | 00213953NLA Door-outer | Discontinued |
| 0039 |  | Screw | $6.70 Part Advantage |
| 0041 |  | Holder | $5.45 Part Advantage |
| 0043 |  | Plug | - |
| 0044 | | Installation set | - |
| 0047 |  | Attachment Brackets | $12.41 Part Advantage |
| 0050 |  | Holder | $29.33 RepairClinic |
| 0051 | | 00268589NLA Holder | Discontinued |
| 0052 |  | Holder | - |
| 0053 |  | Insulating plate | $82.95 ApplianceParts Pro |
| 0055 | | Insulating part | - |
| 0056 | | Panel side | - |
| 0057 |  | Latch | - |
| 0058 |  | Seal | $65.83 Part Advantage |
| 0059 |  | Rack guide rail | $38.03 PartSelect |
| 0060 |  | Front/Rear End Cap Set | $9.63 Part Advantage |
| 0061 | | Panel side | - |
| 0062 |  | Strip | $51.91 Parts Dr |
| 0063 | | Strip | $51.91 Parts Dr |
| 0064 |  | Strip | - |
| 0065 |  | Cover sheet | $52.90 RepairClinic |
| 0066 |  | Bushing | - |
| 0067 | | Axis | - |
| 0068 |  | Foot | - |
| 0069 |  | Repair set-role | $63.01 Parts Dr |
| 0070 |  | Water inlet | $117.47 Parts Dr |
| 0071 |  | Regulator-water level | - |
| 0072 |  | Complete Water Level System | $57.80 Parts Dr |
| 0073 |  | Switch | $20.51 Part Advantage |
| 0076 |  | Inlet Hose | $12.14 Part Advantage |
| 0077 |  | O-Ring | $9.21 Part Advantage |
| 0078 | | O-Ring | $9.21 Part Advantage |
| 0079 |  | Fixture | - |
| 0080 |  | Sump Drain Hose | $10.47 Part Advantage |
| 0086 |  | Hose | - |
| 0087 |  | Pump-drain | $84.67 Part Advantage |
| 0088 |  | Valve-non return | $7.53 Part Advantage |
| 0089 |  | Cover | $10.95 ApplianceParts Pro |
| 0090 |  | Screw | $1.67 Part Advantage |
| 0091 | | O-Ring | $9.21 Part Advantage |
| 0092 |  | Holder | - |
| 0093 |  | Sealing | $27.08 Parts Dr |
| 0095 |  | Sump | $77.40 Parts Dr |
| 0096 |  | Hose clamp | $17.16 Part Advantage |
| 0097 |  | Case-upper part | - |
| 0098 |  | Sealing | $22.19 Part Advantage |
| 0099 |  | 00167085NLA Sealing kit | Discontinued |
| 0100 |  | 00239144NLA Pump-circulating | Discontinued |
| 0101 |  | Pump Housing | $35.48 RepairClinic |
| 0102 |  | Suspension | $2.88 RepairClinic |
| 0103 |  | 00167235NLA Capacitor | Discontinued |
| 0109 |  | Sealing | $8.79 Part Advantage |
| 0110 |  | Sensor-NTC | $54.05 Parts Dr |
| 0111 |  | Sealing | $8.79 Part Advantage |
| 0112 |  | Switch | - |
| 0113 |  | Heater Assembly | $235.23 Parts Dr |
| 0115 |  | Cover | - |
| 0116 |  | Cover | $15.36 ApplianceParts Pro |
| 0117 | | 00165283NLA Cover | Discontinued |
| 0120 |  | Adapter | $12.98 Part Advantage |
| 0128 |  | Water Inlet Valve | $46.04 Part Advantage |
| 0129 |  | Drain Hose | $23.02 Part Advantage |
| 0130 | | O-Ring | $9.21 Part Advantage |
| 0131 |  | Stress-relief | - |
| 0133 | | 00167080NLA Housing | Discontinued |
| 0136 |  | Hinge | $45.10 Parts Dr |
| 0137 |  | Hinge | $41.85 Part Advantage |
| 0138 |  | Plate | - |
| 0139 |  | Hinge Bushing | $10.88 Part Advantage |
| 0140 | | 00168568NLA Spring | Discontinued |
| 0141 |  | Roller-tension | - |
| 0142 |  | Foot | $14.59 Parts Dr |
| 0143 |  | Tube | $8.89 RepairClinic |
| 0144 |  | Hood | - |
| 0145 |  | Lever | $4.73 RepairClinic |
| 0146 |  | Float | $5.45 Part Advantage |
| 0147 | | Case-bottom | - |
| 0148 |  | 00446633NLA Panel-base | Discontinued |
| 0149 |  | Plate | - |
| 0150 |  | Hinge | $43.11 Part Advantage |
| 0151 |  | Hinge | $49.45 ApplianceParts Pro |
| 0152 | | Roller-tension | - |
| 0155 |  | Screw | $3.35 Part Advantage |
| 0156 |  | Bracket | $54.07 ApplianceParts Pro |
| 0169 |  | Insulating part | $6.41 PartSelect |
| 0170 |  | Tube | $80.57 Parts Dr |
| 0171 |  | Spray Arm | $33.18 Parts Dr |
| 0172 |  | 00359976NLA Spray arm | Discontinued |
| 0173 |  | Coarse Filter & Micro-Filter | $42.69 Part Advantage |
| 0174 |  | 00353507NLA Filter-fine | Discontinued |
| 0176 |  | Cutlery Basket | $38.50 Part Advantage |
| 0177 |  | 00249277NLA Crockery basket | Discontinued |
| 0178 |  | Lower Dishwasher Rack | $255.35 Part Advantage |
| 0179 | | Cutlery Basket | $38.50 Part Advantage |
| 0180 | | Cutlery Basket | $38.50 Part Advantage |
| 0181 |  | Dishwasher Rack Wheel | $8.37 Part Advantage |
| 0182 |  | Dishwasher Rack Wheel | $6.30 Part Advantage |
| 0183 |  | Anti-Tarnish Silverware Holder | $52.36 PartSelect |
| 0184 |  | Tall/Large Item Sprinkler Head | $15.93 RepairClinic |
| 0186 | | Insert | - |
| 0187 | | 00167292NLA Cover | Discontinued |
| 0188 |  | Holder | $13.64 Parts Dr |
| 0189 | | 00268256NLA Cup rack | Discontinued |
| 0190 | | 00264484NLA Cutlery basket | Discontinued |
| 0191 | | 00359608NLA Insert | Discontinued |
| 0192 |  | Clamp, Flip Tine | $9.21 Part Advantage |
| 0200 |  | Hose-vent | - |
| 0201 |  | Cover | - |
| 0202 | | Sealing | - |
| 0203 |  | Cover | - |
| 3001 |  | Quick descaler | - |
