Model
Bosch SHP53EM6N/01
Dishwasher
Parts Sections (8)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
SHP53EM6N/01Dishwasher
8 diagrams100 parts
Parts Sections (8)
Diagram

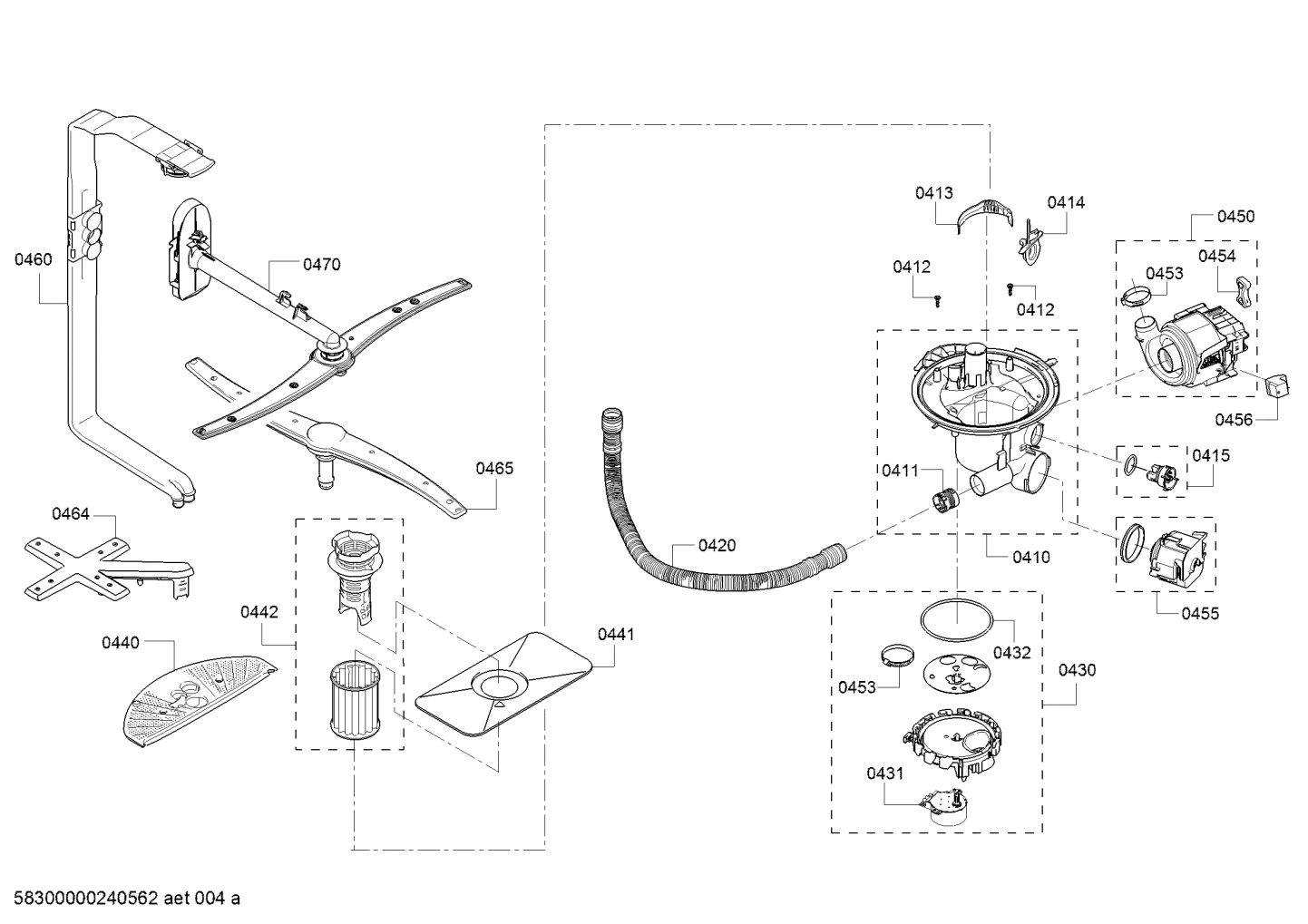

Spray Arms, Door & Housing (0410-0470)
Parts in Spray Arms, Door & Housing (0410-0470)
22 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0410 | – | 12053349 Sump | - |
| 0411 |  | Valve-non return | $15.07 Part Advantage |
| 0412 |  | Screw | $1.67 Part Advantage |
| 0413 |  | Cover | $14.23 Part Advantage |
| 0414 |  | Lid | $15.49 Part Advantage |
| 0415 |  | Sensor | $31.01 Parts Dr |
| 0420 |  | Hose | $9.63 Part Advantage |
| 0430 | – | 12053354 Altern.water distributor | - |
| 0431 |  | Water switch motor | $32.50 Part Advantage |
| 0432 |  | Sealing | $3.35 Part Advantage |
| 0440 | – | 12053356 Cover | - |
| 0441 |  | Drain Mesh Filter | $20.51 Part Advantage |
| 0442 |  | Coarse Filter & Micro-Filter | $30.13 Part Advantage |
| 0450 |  | Heat pump | $95.37 Part Advantage |
| 0453 |  | Hose clamp | $17.16 Part Advantage |
| 0454 |  | Suspension | $6.41 PartSelect |
| 0455 |  | Pump-drain | $29.81 Part Advantage |
| 0456 |  | Protective cover | - |
| 0460 |  | Tube | $31.81 Part Advantage |
| 0464 | – | 11065236 Spray arm | - |
| 0465 |  | Spray arm bottom | $10.04 Part Advantage |
| 0470 |  | Spray arm top | $20.93 Part Advantage |
