Model
Bosch SHP88C75N/01
Dishwasher
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
SHP88C75N/01Dishwasher
9 diagrams144 parts
Parts Sections (9)
Diagram

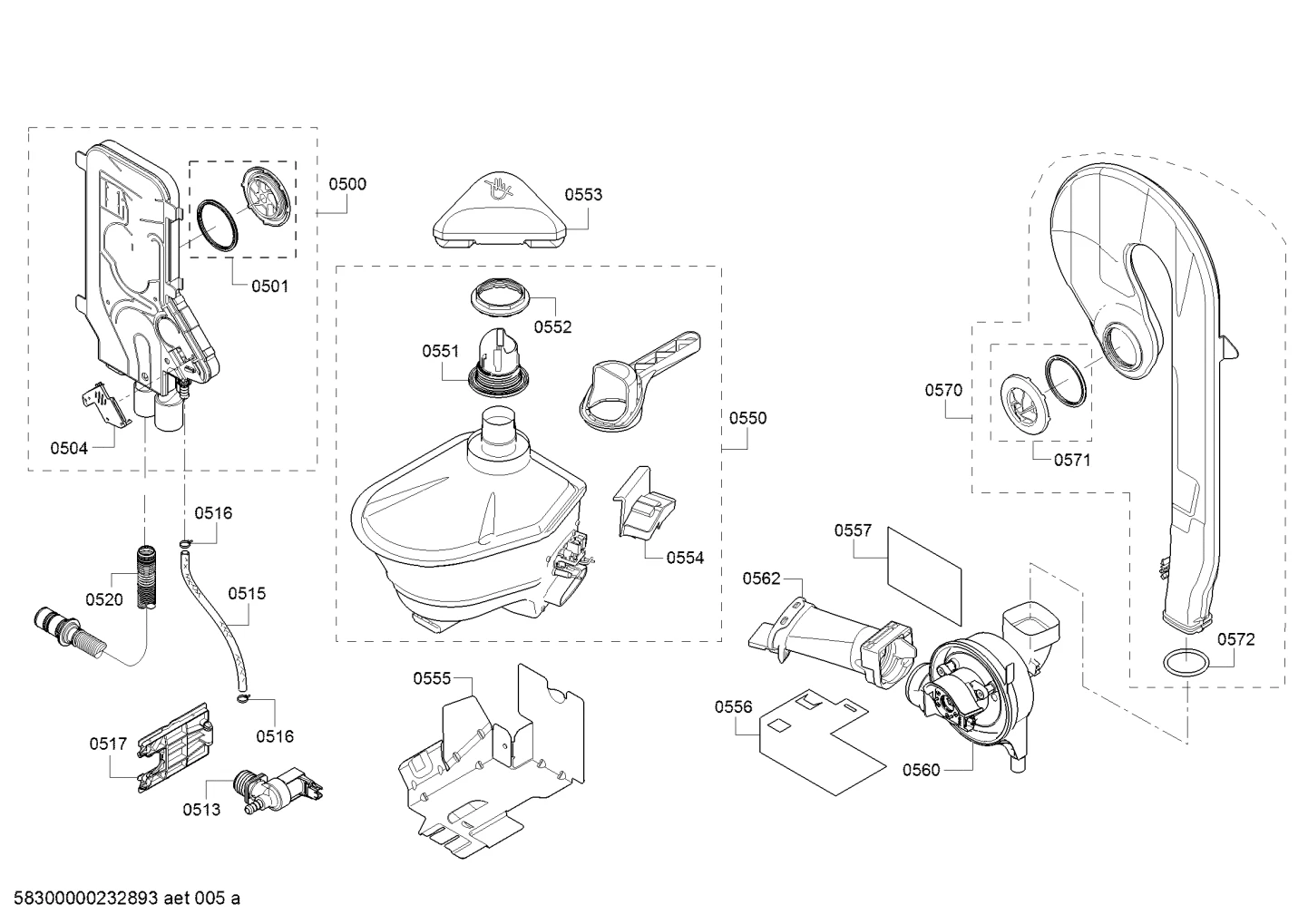

Door & Housing, Hoses (0500-0572)
Parts in Door & Housing, Hoses (0500-0572)
21 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0500 |  | Water inlet | $35.58 Part Advantage |
| 0501 |  | Cover | $23.44 Part Advantage |
| 0504 |  | Cover | $4.58 Parts Dr |
| 0513 |  | Valve access | $20.51 Part Advantage |
| 0515 |  | Hose | $3.75 Part Advantage |
| 0516 |  | Hose clamp | $4.19 Part Advantage |
| 0517 |  | Support | $4.19 Part Advantage |
| 0520 |  | Drain hose | $18.41 Part Advantage |
| 0550 |  | Container | $254.54 Part Advantage |
| 0551 |  | Stud | $23.86 Part Advantage |
| 0552 |  | Nut | $16.74 Part Advantage |
| 0553 |  | Cap | $45.93 Parts Dr |
| 0554 |  | Protective cover | $6.95 Parts Dr |
| 0555 |  | Sheet | - |
| 0556 |  | Insulating-/protection sleeve | $6.41 PartSelect |
| 0557 |  | Insulating-/protection sleeve | $6.41 PartSelect |
| 0560 |  | Fan | $62.03 ApplianceParts Pro |
| 0562 |  | Ventilation duct | $20.81 Parts Dr |
| 0570 |  | Ventilation duct | $48.91 Parts Dr |
| 0571 |  | Cover | $21.35 Part Advantage |
| 0572 |  | Sealing | $9.21 Part Advantage |
