Model
Bosch SHU3016UC/06
Dishwasher
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
SHU3016UC/06Dishwasher
1 diagram119 parts
Parts Sections (1)
Diagram

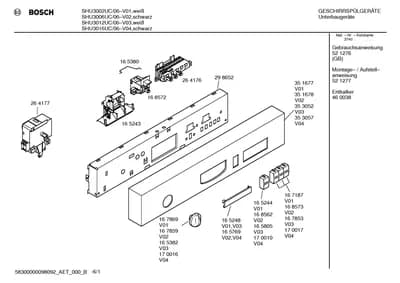

Door & Housing, Baskets & Wheels (0001-3001)
Parts in Door & Housing, Baskets & Wheels (0001-3001)
124 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0001 |  | Control unit | - |
| 0002 | | 00264176NLA Switch-selector | Discontinued |
| 0003 |  | Knob | - |
| 0004 | | Switch | - |
| 0005 | | 00165380NLA Rod | Discontinued |
| 0006 |  | Lock | $70.95 ApplianceParts Pro |
| 0008 | | 00353057NLA Panel frame | Discontinued |
| 0009 | | Key | - |
| 0010 | | Key | - |
| 0011 |  | Cover | $10.88 Part Advantage |
| 0020 |  | Dispenser | - |
| 0021 |  | Sealing | $12.20 Parts Dr |
| 0022 |  | Detergent Lid | $39.34 Part Advantage |
| 0023 |  | Lid | $7.96 Part Advantage |
| 0024 |  | Repair-set | $9.63 Part Advantage |
| 0025 |  | Adjusting device | - |
| 0026 |  | Lever, Wrap, Seal | $11.72 Part Advantage |
| 0027 |  | Plunger | - |
| 0030 |  | Actuator | $21.56 Parts Dr |
| 0031 |  | Repair-set | - |
| 0032 |  | Switch | $20.93 Part Advantage |
| 0033 |  | Door-inner | - |
| 0034 |  | Repair-set | - |
| 0035 |  | Door Seal | $55.48 Part Advantage |
| 0036 | | Support | - |
| 0037 | | Insulating plate | - |
| 0038 | | Door-outer | - |
| 0039 |  | Screw | $6.70 Part Advantage |
| 0043 |  | Adapter | $12.98 Part Advantage |
| 0050 |  | Steam Safety Sheet | - |
| 0051 |  | Holder | $18.43 ApplianceParts Pro |
| 0052 |  | Holder | $20.57 ApplianceParts Pro |
| 0053 |  | Insulating plate | $82.95 ApplianceParts Pro |
| 0056 | | Panel side | - |
| 0057 |  | Latch | - |
| 0058 |  | Seal | $65.83 Part Advantage |
| 0059 |  | Rack guide rail | $38.03 PartSelect |
| 0060 |  | Front/Rear End Cap Set | $9.63 Part Advantage |
| 0061 | | 00214484NLA Panel side | Discontinued |
| 0062 |  | Strip | $51.91 Parts Dr |
| 0063 | | Strip | $51.91 Parts Dr |
| 0064 |  | Strip | - |
| 0065 |  | Cover sheet | $52.90 RepairClinic |
| 0066 |  | Bushing | - |
| 0067 |  | Axis | $7.68 PartSelect |
| 0068 |  | Foot | - |
| 0069 | | Insulating part | - |
| 0070 |  | Water inlet | $117.47 Parts Dr |
| 0071 |  | Regulator-water level | - |
| 0072 |  | Complete Water Level System | $57.80 Parts Dr |
| 0073 |  | Switch | $20.51 Part Advantage |
| 0076 |  | Hose | $14.83 RepairClinic |
| 0077 |  | O-Ring | $9.21 Part Advantage |
| 0079 |  | Fixture | - |
| 0080 |  | Sump Drain Hose | $10.47 Part Advantage |
| 0087 |  | Pump-drain | $84.67 Part Advantage |
| 0088 |  | Valve-non return | $7.53 Part Advantage |
| 0089 |  | Cover | $10.95 ApplianceParts Pro |
| 0090 | | Instruction manual | - |
| 0091 | | O-Ring | $9.21 Part Advantage |
| 0092 |  | Holder | - |
| 0093 |  | Sealing | $27.08 Parts Dr |
| 0095 | | Sump | - |
| 0096 |  | Sealing | - |
| 0097 |  | Case-upper part | - |
| 0098 |  | 00165269NLA Sealing | Discontinued |
| 0099 |  | 00167085NLA Sealing kit | Discontinued |
| 0100 |  | Pump-housing | $40.95 ApplianceParts Pro |
| 0101 |  | Motor | $279.11 Part Advantage |
| 0102 | | 00167244NLA Foot | Discontinued |
| 0103 |  | 00167235NLA Capacitor | Discontinued |
| 0109 |  | Sealing | $8.79 Part Advantage |
| 0110 |  | Regulator-temperature | $77.22 PartSelect |
| 0111 |  | Sealing | $8.79 Part Advantage |
| 0112 |  | Switch | - |
| 0113 | | 00264463NLA Instantaneous water heater | Discontinued |
| 0115 |  | Cover | - |
| 0116 |  | Cover | $15.36 ApplianceParts Pro |
| 0117 | | 00165283NLA Cover | Discontinued |
| 0119 | | Installation instructions | - |
| 0128 |  | Water Inlet Valve | $46.04 Part Advantage |
| 0129 |  | Drain Hose | $23.02 Part Advantage |
| 0131 |  | Stress-relief | - |
| 0133 | | 00167080NLA Housing | Discontinued |
| 0136 |  | Hinge | $45.10 Parts Dr |
| 0137 |  | Hinge | $41.85 Part Advantage |
| 0138 |  | Plate | - |
| 0139 |  | Hinge Bushing | $10.88 Part Advantage |
| 0140 |  | Spring | - |
| 0141 |  | Roller-tension | - |
| 0142 |  | Foot | $14.59 Parts Dr |
| 0143 |  | Tube | $8.89 RepairClinic |
| 0144 |  | Hood | - |
| 0145 |  | Lever | $4.73 RepairClinic |
| 0146 |  | Float | $5.45 Part Advantage |
| 0147 | | Case-bottom | - |
| 0148 |  | 00446633NLA Panel-base | Discontinued |
| 0149 |  | Plate | - |
| 0150 |  | Hinge | $43.11 Part Advantage |
| 0151 |  | Hinge | $49.45 ApplianceParts Pro |
| 0152 | | Roller-tension | - |
| 0153 |  | Insulating part | $6.41 PartSelect |
| 0154 | | Regulator-temperature | - |
| 0156 |  | Bracket | $54.07 ApplianceParts Pro |
| 0170 |  | Tube | $80.57 Parts Dr |
| 0171 |  | Spray arm | - |
| 0172 |  | Upper Spray Arm Assembly | $53.41 Part Advantage |
| 0173 | | Steam Safety Sheet | - |
| 0175 |  | Sieve | - |
| 0176 |  | 00093044NLA Cup rack | Discontinued |
| 0177 |  | 00249277NLA Crockery basket | Discontinued |
| 0178 |  | Lower Dishwasher Rack | $255.35 Part Advantage |
| 0179 |  | Dishwasher Rack Wheel | $8.37 Part Advantage |
| 0180 |  | Cutlery Basket | $38.50 Part Advantage |
| 0181 |  | Attachment Brackets | $12.41 Part Advantage |
| 0182 |  | Screw | $1.67 Part Advantage |
| 0183 |  | Dishwasher Rack Wheel | $6.30 Part Advantage |
| 0184 | | Cutlery Basket | $38.50 Part Advantage |
| 0185 |  | Hose | - |
| 0186 |  | Flip tine | - |
| 0188 |  | Holder | $13.64 Parts Dr |
| 0189 | | 00264484NLA Cutlery basket | Discontinued |
| 0199 |  | Cable harness | - |
| 3001 |  | Quick descaler | - |
