Model
Bosch SHU3032UC/14
Dishwasher
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
SHU3032UC/14Dishwasher
6 diagrams122 parts
Parts Sections (6)
Diagram

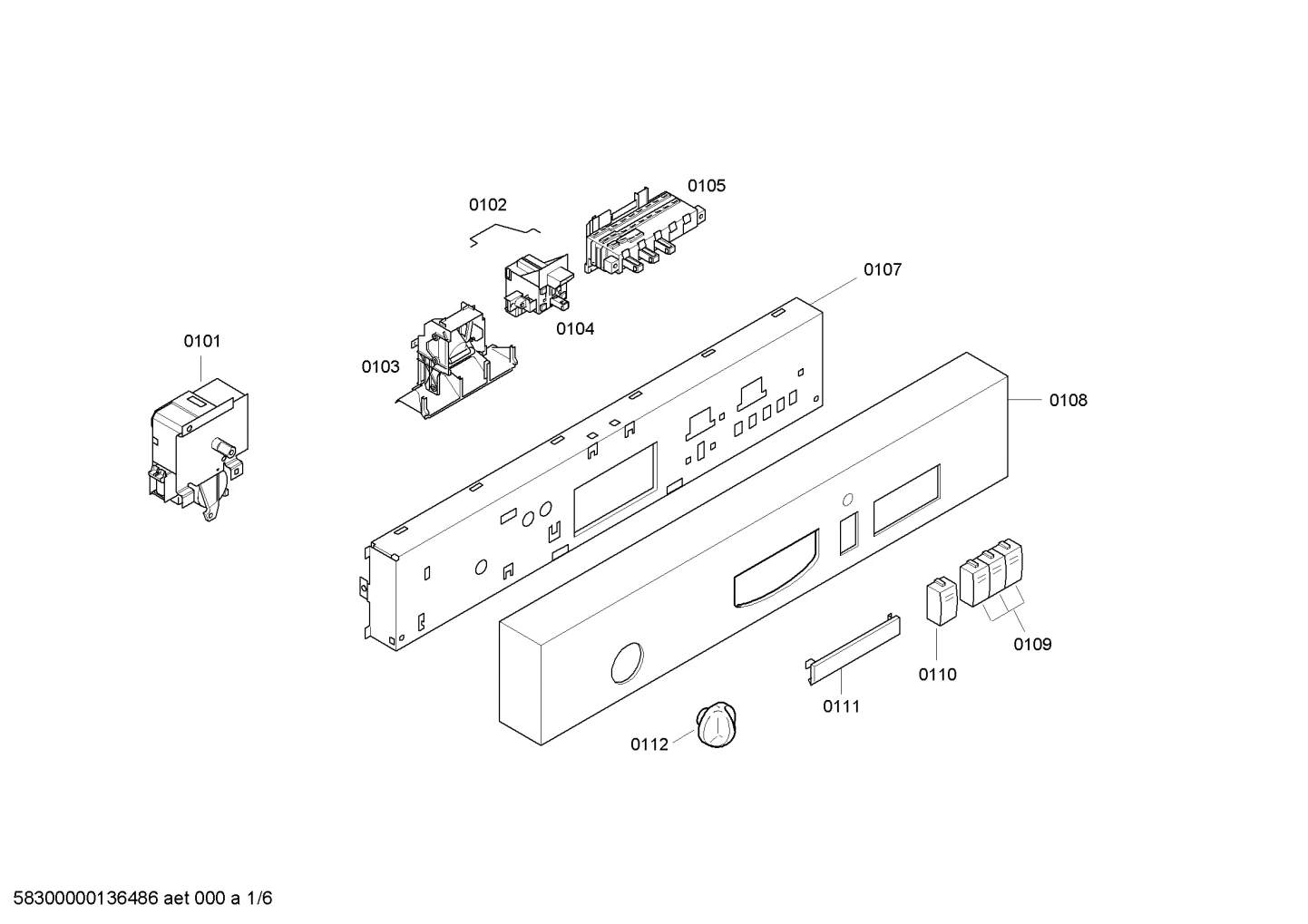

Diagram 1
Parts in Diagram 1
11 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | Control unit | - |
| 0102 | | 00165380NLA Rod | Discontinued |
| 0103 |  | Lock | $70.95 ApplianceParts Pro |
| 0104 | | Switch | - |
| 0105 | | Switch-selector | - |
| 0107 | | Support | - |
| 0108 | | 00359468NLA Panel frame | Discontinued |
| 0109 | | 00167187NLA Key | Discontinued |
| 0110 |  | Key | $18.95 ApplianceParts Pro |
| 0111 |  | Worktop | - |
| 0112 |  | Knob | - |
