Model
Bosch SHU3136UC/12
Dishwasher
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
SHU3136UC/12Dishwasher
6 diagrams124 parts
Parts Sections (6)
Diagram

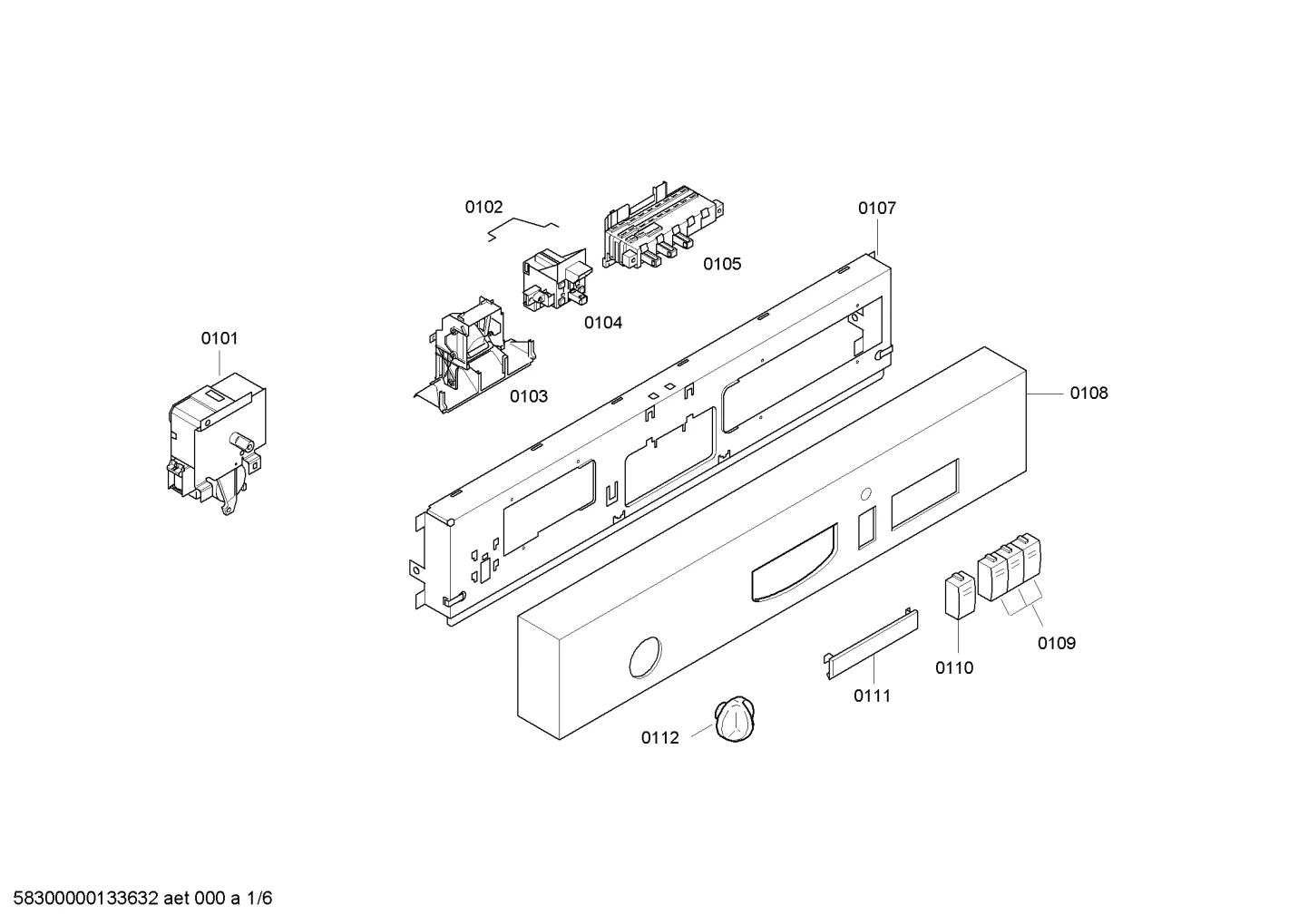

latches, handles knobs (0101-0112)
Parts in latches, handles knobs (0101-0112)
12 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | Control unit | - |
| 0102 | | 00165380NLA Rod | Discontinued |
| 0103 |  | Latch | $24.65 RepairClinic |
| 0104 | | Switch | - |
| 0105 | | Switch-selector | - |
| 0106 | | Cable harness | - |
| 0107 | | Support | - |
| 0108 | | 00359469NLA Panel frame | Discontinued |
| 0109 | | 00168573NLA Key | Discontinued |
| 0110 | | 00168562NLA Key | Discontinued |
| 0111 |  | Cover | $10.88 Part Advantage |
| 0112 |  | Knob | - |
