Model
Bosch SHU33A02UC/17
Dishwasher
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
SHU33A02UC/17Dishwasher
1 diagram131 parts
Parts Sections (1)
Diagram

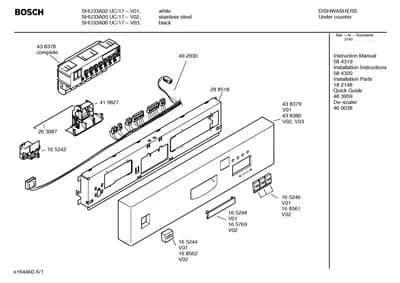

Screws, Flaps & Holders (0001-0612)
Parts in Screws, Flaps & Holders (0001-0612)
139 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0001 |  | Instruction manual | - |
| 0002 | | 00584320NLA Installation instructions | Discontinued |
| 0003 |  | Installation set | - |
| 0004 | | Brochure | - |
| 0005 |  | Quick descaler | - |
| 0101 |  | 00647477NLA Control unit | Discontinued |
| 0102 |  | 00165242NLA Switch | Discontinued |
| 0103 |  | Rod | - |
| 0104 |  | Latch | $24.65 RepairClinic |
| 0105 | | 00492930NLA Cable harness | Discontinued |
| 0106 |  | Frame | $37.23 ApplianceParts Pro |
| 0107 | | Panel-facia | - |
| 0108 |  | Key | $50.92 Part Advantage |
| 0109 |  | Worktop | - |
| 0110 |  | Key | $18.95 ApplianceParts Pro |
| 0201 |  | Screw | $6.70 Part Advantage |
| 0202 |  | Door-inner | - |
| 0203 |  | Door Seal | $27.62 Part Advantage |
| 0205 |  | Door-outer | $183.70 Parts Dr |
| 0206 |  | Sealing | $12.20 Parts Dr |
| 0207 |  | Detergent Lid | $39.34 Part Advantage |
| 0208 |  | Lever, Wrap, Seal | $11.72 Part Advantage |
| 0209 |  | Plunger | - |
| 0210 |  | Lid | $7.96 Part Advantage |
| 0211 |  | Adjusting device | - |
| 0212 |  | Dispenser | $199.36 Part Advantage |
| 0213 |  | Repair-set | - |
| 0214 |  | Actuator | $21.56 Parts Dr |
| 0215 |  | Repair-set | $9.63 Part Advantage |
| 0216 |  | Switch | $20.93 Part Advantage |
| 0301 | | Panel side | - |
| 0301 |  | Screw | $6.41 PartSelect |
| 0302 |  | Strip | - |
| 0303 |  | Holder | $29.33 RepairClinic |
| 0304 |  | Holder | - |
| 0305 |  | 00186929NLA Clip | Discontinued |
| 0305 |  | Screw | $9.38 RepairClinic |
| 0306 |  | Seal | $65.83 Part Advantage |
| 0307 |  | Rack guide rail | $38.03 PartSelect |
| 0308 |  | Front/Rear End Cap Set | $9.63 Part Advantage |
| 0309 |  | Attachment Brackets | $12.41 Part Advantage |
| 0310 |  | Hook | - |
| 0311 |  | Repair set-role | $63.01 Parts Dr |
| 0312 |  | Cover sheet | $52.90 RepairClinic |
| 0313 | | 00268589NLA Holder | Discontinued |
| 0314 | | Panel side | - |
| 0314 | | Screw | $6.41 PartSelect |
| 0315 | | Strip | - |
| 0317 |  | Hose-vent | - |
| 0318 |  | Cover | - |
| 0318 |  | Screw | $7.96 Part Advantage |
| 0319 | | Sealing | - |
| 0320 |  | Cover | - |
| 0401 |  | Cover | - |
| 0402 |  | Sensor-NTC | $54.05 Parts Dr |
| 0403 |  | Sealing | $8.79 Part Advantage |
| 0404 |  | Sealing | $8.79 Part Advantage |
| 0405 |  | Aqua Sensor | $50.51 Parts Dr |
| 0406 |  | Sealing | $9.21 Part Advantage |
| 0407 | | 00165283NLA Cover | Discontinued |
| 0408 |  | Switch | - |
| 0409 |  | Heater Assembly | $235.23 Parts Dr |
| 0410 |  | Sealing | $27.04 Parts Dr |
| 0411 |  | Screw | $1.67 Part Advantage |
| 0412 |  | Holder | - |
| 0413 |  | O-Ring | $9.21 Part Advantage |
| 0414 |  | Cover | $10.95 ApplianceParts Pro |
| 0415 |  | Pump-drain | $84.67 Part Advantage |
| 0416 |  | Valve-non return | $7.53 Part Advantage |
| 0417 |  | Sump | $77.40 Parts Dr |
| 0418 |  | 00167235NLA Capacitor | Discontinued |
| 0419 |  | 00239144NLA Pump-circulating | Discontinued |
| 0419 | | 00239144NLA Pump-circulating | Discontinued |
| 0420 |  | Suspension | $2.88 RepairClinic |
| 0421 |  | Pump Housing | $35.48 RepairClinic |
| 0422 |  | 00167085NLA Sealing kit | Discontinued |
| 0423 |  | Hose clamp | $17.16 Part Advantage |
| 0424 |  | Case-upper part | - |
| 0425 |  | Sealing | $22.19 Part Advantage |
| 0426 |  | Inlet Hose | $12.14 Part Advantage |
| 0427 |  | Hose | - |
| 0428 |  | Switch | $20.51 Part Advantage |
| 0429 |  | Complete Water Level System | $57.80 Parts Dr |
| 0430 |  | Regulator-water level | - |
| 0431 |  | Sump Drain Hose | $10.47 Part Advantage |
| 0432 |  | Drain Hose | $23.02 Part Advantage |
| 0433 |  | Fixture | - |
| 0434 |  | Cover | $15.36 ApplianceParts Pro |
| 0435 |  | Water inlet | $117.47 Parts Dr |
| 0501 |  | Hinge-cover | - |
| 0502 |  | Hinge Lever | $15.64 Part Advantage |
| 0502 |  | Screw | $7.22 RepairClinic |
| 0503 |  | Insulating part | $6.41 PartSelect |
| 0504 |  | Hinge Bushing | $10.88 Part Advantage |
| 0504 | | Hinge Bushing | $10.88 Part Advantage |
| 0505 |  | Door Spring | $14.44 RepairClinic |
| 0506 |  | Hinge | $43.11 Part Advantage |
| 0507 |  | Roller-tension | - |
| 0508 | | Cable harness | - |
| 0509 |  | Bracket | $54.07 ApplianceParts Pro |
| 0509 | | Screw | $9.38 RepairClinic |
| 0510 |  | Hood | - |
| 0511 |  | Float | $5.45 Part Advantage |
| 0512 |  | Tube | $8.89 RepairClinic |
| 0513 |  | Lever | $4.73 RepairClinic |
| 0514 |  | Stress-relief | - |

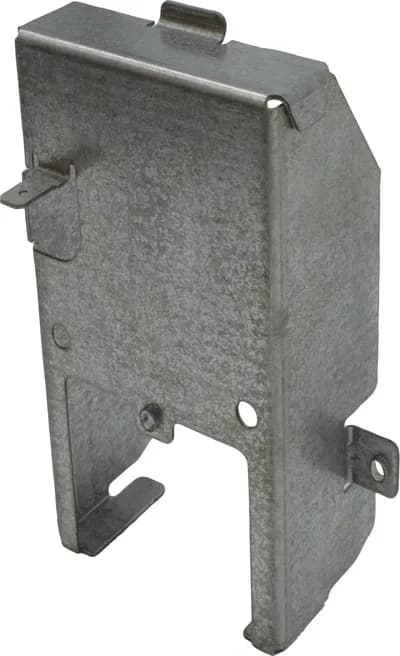

| 0514 |  | Terminal box | - |

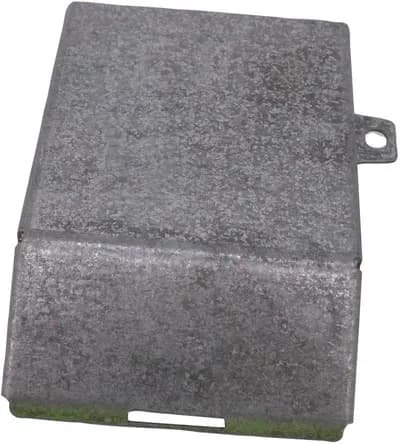

| 0514 |  | Cover | $10.95 ApplianceParts Pro |
| 0515 |  | Foot | $4.19 Part Advantage |
| 0516 |  | Rod | - |
| 0517 |  | Bushing | - |
| 0518 |  | 00446633NLA Panel-base | Discontinued |

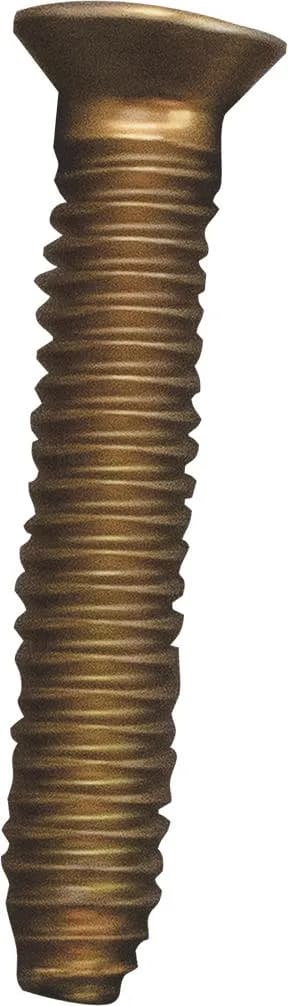

| 0518 |  | Screw | $3.35 Part Advantage |
| 0519 |  | Water Inlet Valve | $46.04 Part Advantage |
| 0520 | | Case-bottom | - |
| 0521 |  | Hinge | $41.85 Part Advantage |
| 0521 | | Screw | $7.22 RepairClinic |
| 0522 |  | Hinge-cover | $6.41 PartSelect |
| 0523 |  | Hinge Lever | $19.25 Part Advantage |
| 0523 | | Stop | $15.57 ApplianceParts Pro |
| 0524 |  | Foot | - |
| 0525 | | O-Ring | $9.21 Part Advantage |
| 0526 |  | Stress-relief | - |
| 0527 | | Drain Hose | $23.02 Part Advantage |
| 0528 |  | Adapter | $12.98 Part Advantage |
| 0601 |  | Tube | $80.57 Parts Dr |
| 0602 |  | Tall/Large Item Sprinkler Head | $15.93 RepairClinic |
| 0603 |  | 00359976NLA Spray arm | Discontinued |
| 0604 |  | 00249277NLA Crockery basket | Discontinued |
| 0605 |  | Wheel | $10.22 Parts Dr |
| 0606 |  | Holder | - |
| 0606 | | Insert | - |
| 0606 |  | Holder | - |
| 0607 |  | Lower Dishwasher Rack | $255.35 Part Advantage |
| 0608 |  | Spray Arm | $33.18 Parts Dr |
| 0609 |  | Coarse Filter & Micro-Filter | $42.69 Part Advantage |
| 0610 |  | 00353507NLA Filter-fine | Discontinued |
| 0611 |  | Dishwasher Rack Wheel | $6.30 Part Advantage |
| 0612 |  | Cutlery Basket | $38.50 Part Advantage |
