Model
Bosch SHU43C05UC/36
Dishwasher
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
SHU43C05UC/36Dishwasher
6 diagrams128 parts
Parts Sections (6)
Diagram

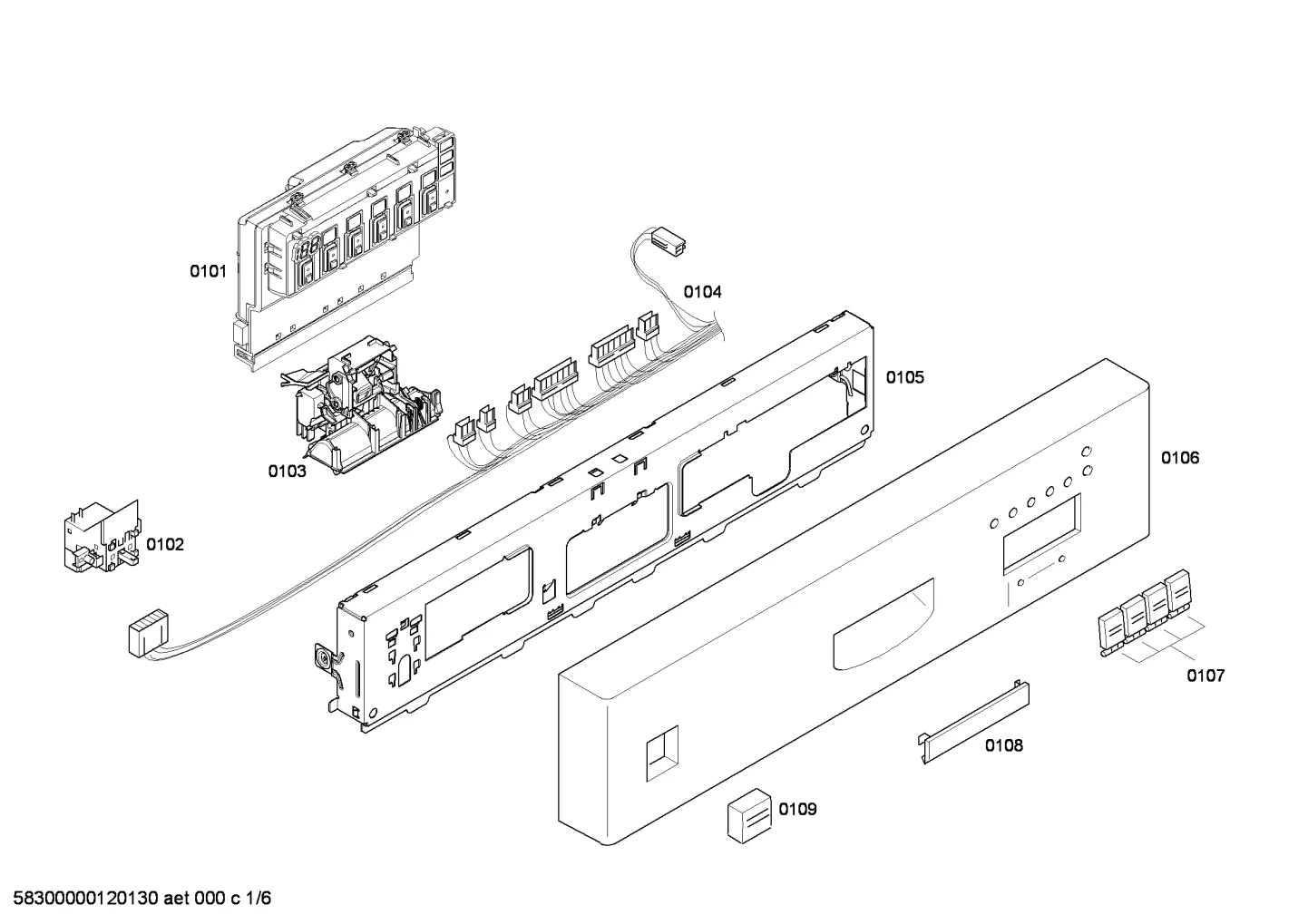

Diagram 1
Parts in Diagram 1
10 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | Control Module | $160.83 Parts Dr |
| 0102 |  | 00165242NLA Switch | Discontinued |
| 0103 |  | Lock | - |
| 0104 | | Cable harness | - |
| 0105 |  | Frame | $37.23 ApplianceParts Pro |
| 0106 | | Panel-facia | - |
| 0107 |  | Button, Program | $16.74 Part Advantage |
| 0108 | | Worktop | $12.95 ApplianceParts Pro |
| 0109 |  | Key | $10.93 RepairClinic |
| 8101 |  | Micro-Filter | $11.95 ApplianceParts Pro |
