Model
Bosch SHU66C02UC/47
Dishwasher
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
SHU66C02UC/47Dishwasher
6 diagrams145 parts
Parts Sections (6)
Diagram

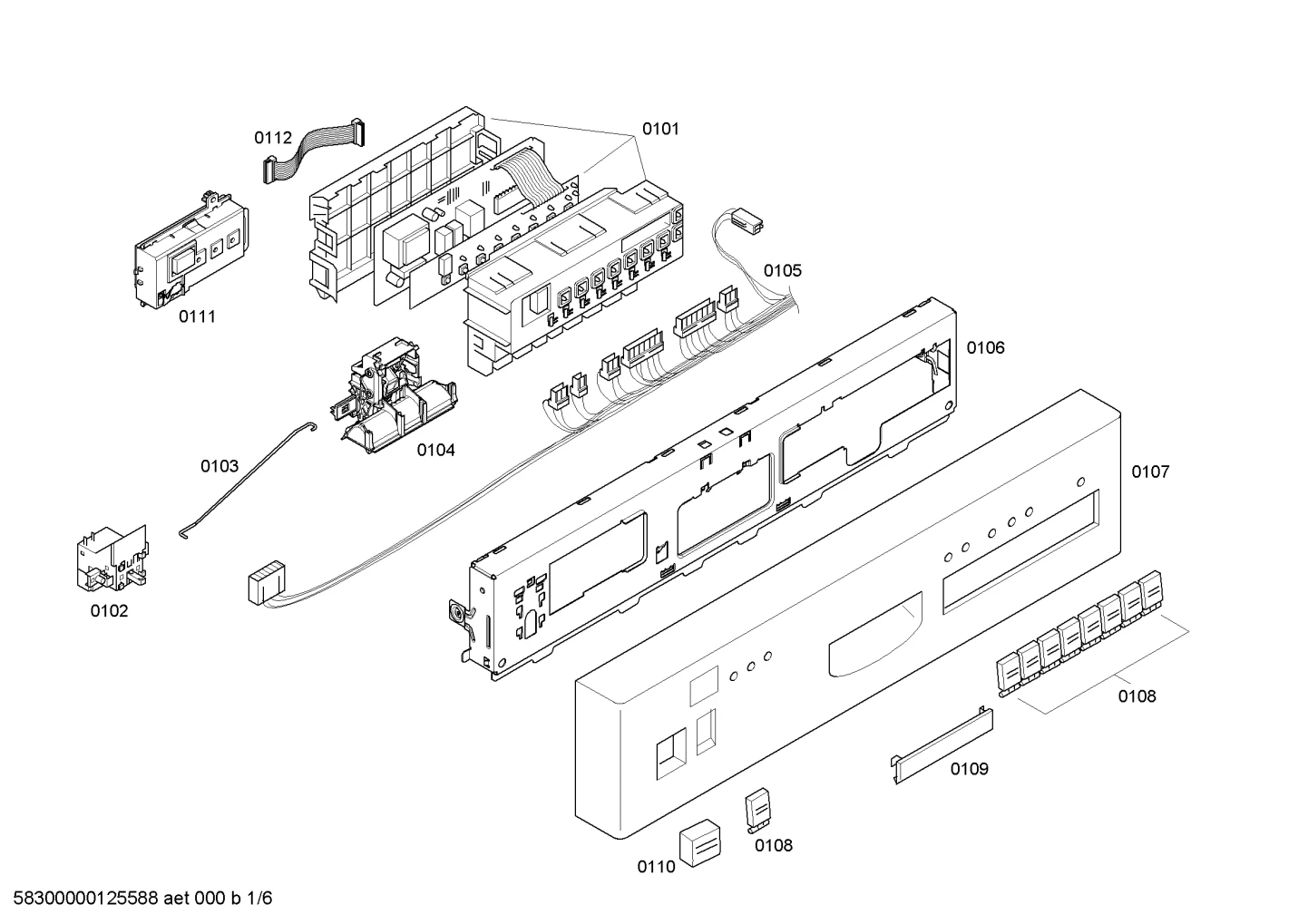

latches, Hoses (0101-8103)
Parts in latches, Hoses (0101-8103)
15 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | Control unit | - |
| 0102 |  | 00165242NLA Switch | Discontinued |
| 0103 |  | Rod | - |
| 0104 |  | Latch | $24.65 RepairClinic |
| 0105 |  | Cable harness | - |
| 0106 |  | Frame | $37.23 ApplianceParts Pro |
| 0107 | | Panel-facia | - |
| 0108 |  | Key | $50.92 Part Advantage |
| 0109 |  | Worktop | - |
| 0110 |  | Key | $18.95 ApplianceParts Pro |
| 0111 | | PC board | - |
| 0112 | | Cable harness | - |
| 8101 |  | Micro-Filter | $11.95 ApplianceParts Pro |
| 8102 |  | Power cord extended | $38.40 PartSelect |
| 8103 |  | Drain Hose Extension Kit | $18.84 Part Advantage |
