Model
Bosch SHU66C07UC/23
Dishwasher
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
SHU66C07UC/23Dishwasher
6 diagrams142 parts
Parts Sections (6)
Diagram

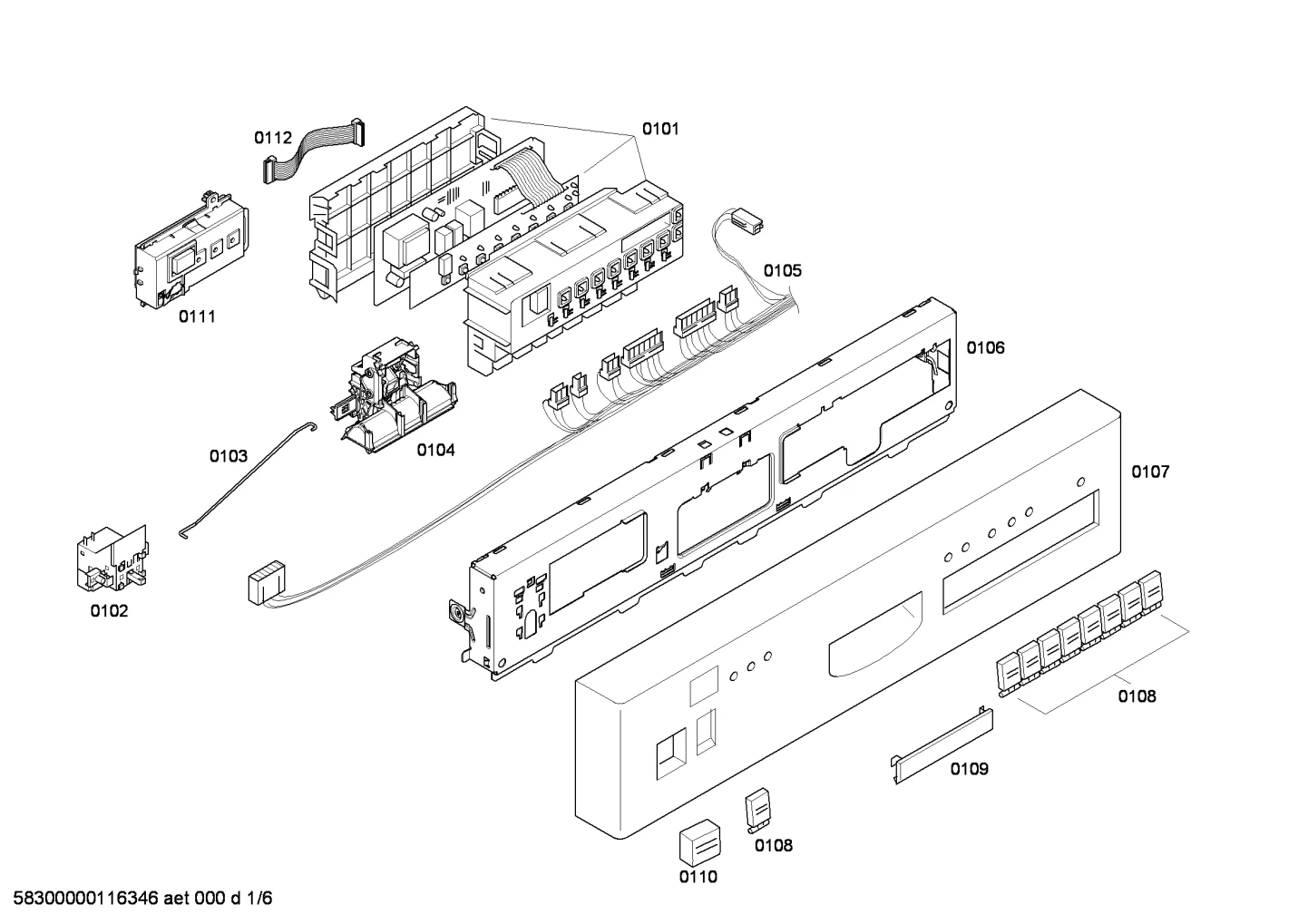

latches (0101-0112)
Parts in latches (0101-0112)
12 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | Control unit | - |
| 0102 |  | 00165242NLA Switch | Discontinued |
| 0103 |  | Rod | - |
| 0104 |  | Latch | $24.65 RepairClinic |
| 0105 |  | Cable harness | - |
| 0106 |  | Frame | $37.23 ApplianceParts Pro |
| 0107 | | Panel-facia | - |
| 0108 |  | Key | - |
| 0109 |  | Cover | $12.37 ApplianceParts Pro |
| 0110 | | Key | - |
| 0111 | | PC board | - |
| 0112 | | Cable harness | - |
