Model

Bosch SHV55M03AU/76

Name: Bosch SHV55M03AU/76
Brand: Bosch
Availability: InStock

Dishwasher

Parts Sections (6)

How to find your part

Find part on diagram

Zoom in & tap a highlighted area

Tap "Parts" tab

Switch to the parts list view

See details & prices

Your selected part is highlighted

ModelBosch

SHV55M03AU/76Dishwasher

6 diagrams117 parts

Parts Sections (6)

Diagram

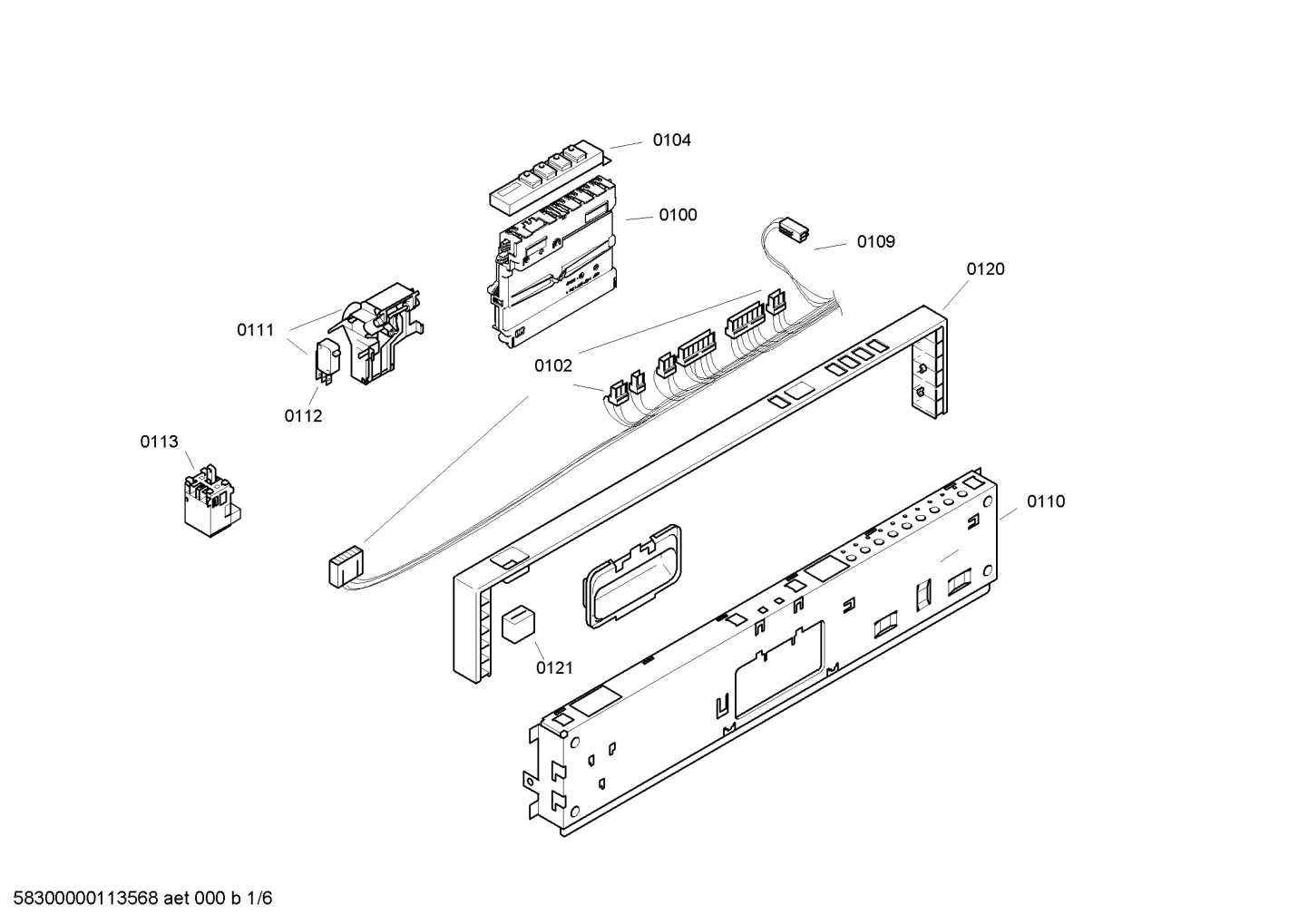

Switches, Door & Housing (0102-0199)

Parts in Switches, Door & Housing (0102-0199)

8 parts

Parts list for Switches, Door & Housing (0102-0199)
Ref	Part / Description	Best Price
0102	00496460 Plug	-
0109	00493906 Cable harness	-
0110	00677523NLA Frame	Discontinued
0111	00438026 Ball Bearing Door Latch	$48.55 Part Advantage
0112	00187205 Switch	-
0113	00424410 On/Off Main Switch	$48.55 Part Advantage
0121	00424501NLA Key	Discontinued
0199	00493906 Cable harness	-
