Model
Bosch SHV863WD3N/13
Dishwasher
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
SHV863WD3N/13Dishwasher
6 diagrams124 parts
Parts Sections (6)

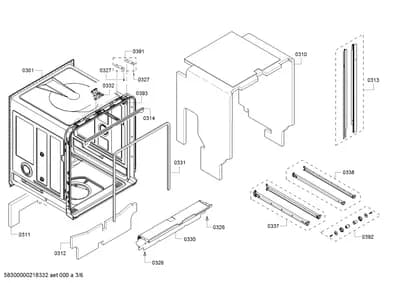

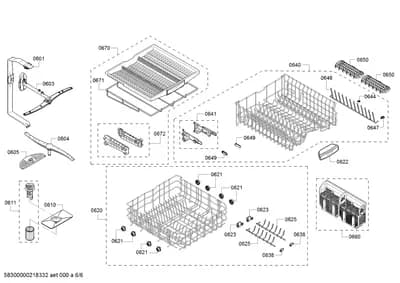

Diagram

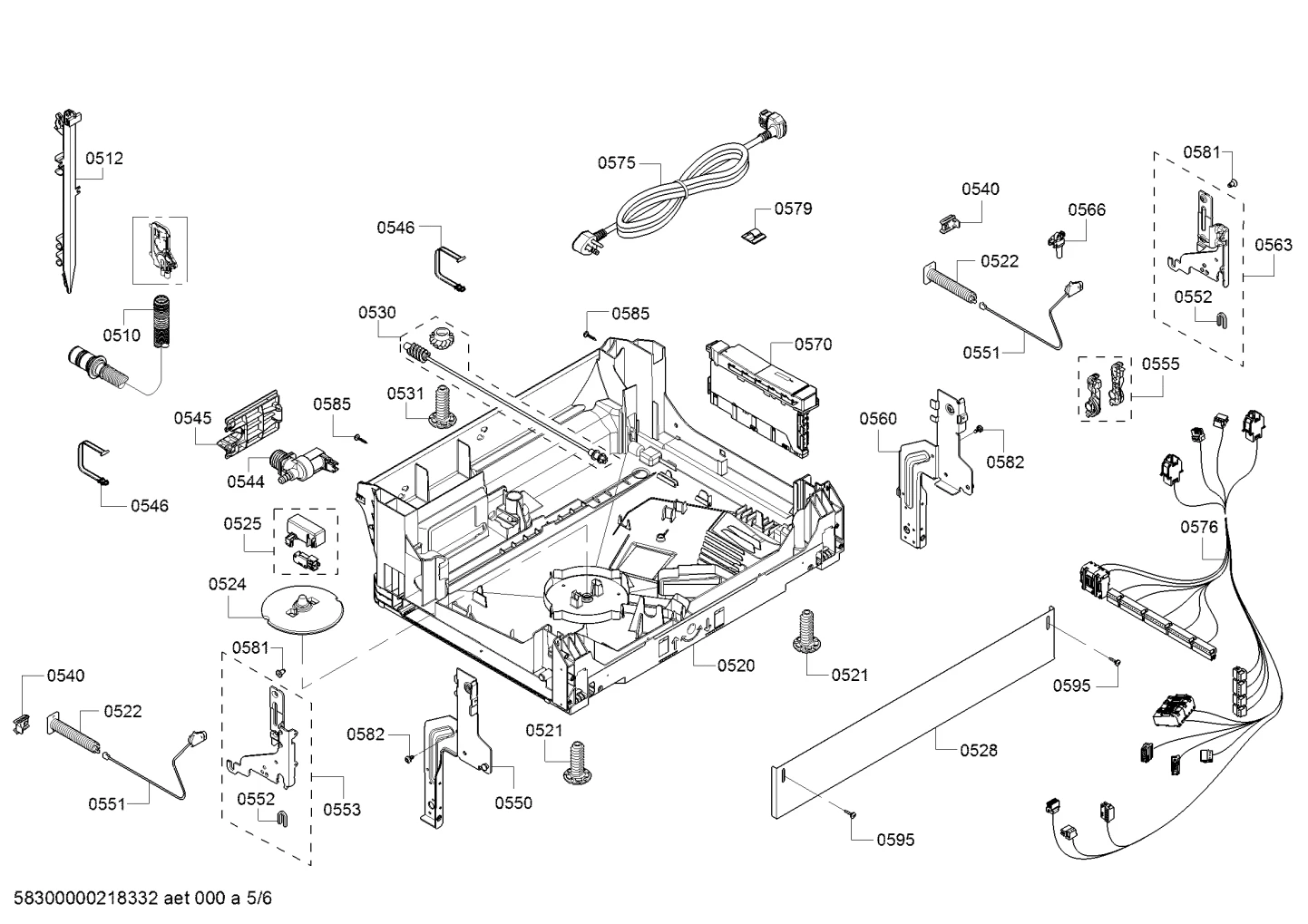

Door & Housing, Flaps & Holders (0510-8130)
Parts in Door & Housing, Flaps & Holders (0510-8130)
35 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0510 |  | Drain hose | $18.41 Part Advantage |
| 0512 |  | Holder | $5.57 ApplianceParts Pro |
| 0520 |  | Case-bottom | $57.13 Part Advantage |
| 0521 |  | Foot | $4.19 Part Advantage |
| 0522 |  | Spring | $18.41 Part Advantage |
| 0524 |  | Float | $16.33 Part Advantage |
| 0525 |  | Housing | $7.53 Part Advantage |
| 0528 |  | Panel-base | $12.56 Part Advantage |
| 0528 |  | Panel-base | $12.56 Part Advantage |
| 0530 |  | Worm gear | $9.21 Part Advantage |
| 0531 |  | Foot | $10.47 Part Advantage |
| 0540 |  | Holder | $5.02 Part Advantage |
| 0544 |  | Valve access | $20.51 Part Advantage |
| 0545 |  | Support | $4.19 Part Advantage |
| 0546 |  | Holder | $4.45 ApplianceParts Pro |
| 0550 |  | Hinge-plate | $17.58 Part Advantage |
| 0551 |  | Rope | $16.33 Part Advantage |
| 0552 |  | Hinge Bushing | $10.88 Part Advantage |
| 0553 |  | Lever | $9.45 Part Advantage |
| 0555 |  | Guide | $12.56 Part Advantage |
| 0560 |  | Hinge-plate | $17.58 Part Advantage |
| 0563 |  | Lever | $12.56 Part Advantage |
| 0566 |  | LED-announcement | $48.71 Parts Dr |
| 0570 |  | Power module not programmed | $241.64 PartSelect |
| 0570 |  | Power module programmed | $241.64 PartSelect |
| 0575 |  | Power cord | $19.33 Part Advantage |
| 0576 |  | Cable harness | $51.75 Part Advantage |
| 0579 |  | Clip | - |
| 0581 |  | Screw | $7.22 RepairClinic |
| 0582 |  | Screw | $9.38 RepairClinic |
| 0585 |  | Screw | $1.67 Part Advantage |
| 0595 |  | Screw | $7.96 Part Advantage |
| 8102 |  | Micro-Filter | $11.95 ApplianceParts Pro |
| 8110 |  | Tall/Large Item Sprinkler Head | $13.96 Parts Dr |
| 8130 |  | 00617210NLA Hard Water Test Strip | Discontinued |
