Model
Bosch SHV865WG3N/01
Dishwasher
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
SHV865WG3N/01Dishwasher
6 diagrams127 parts
Parts Sections (6)
Diagram

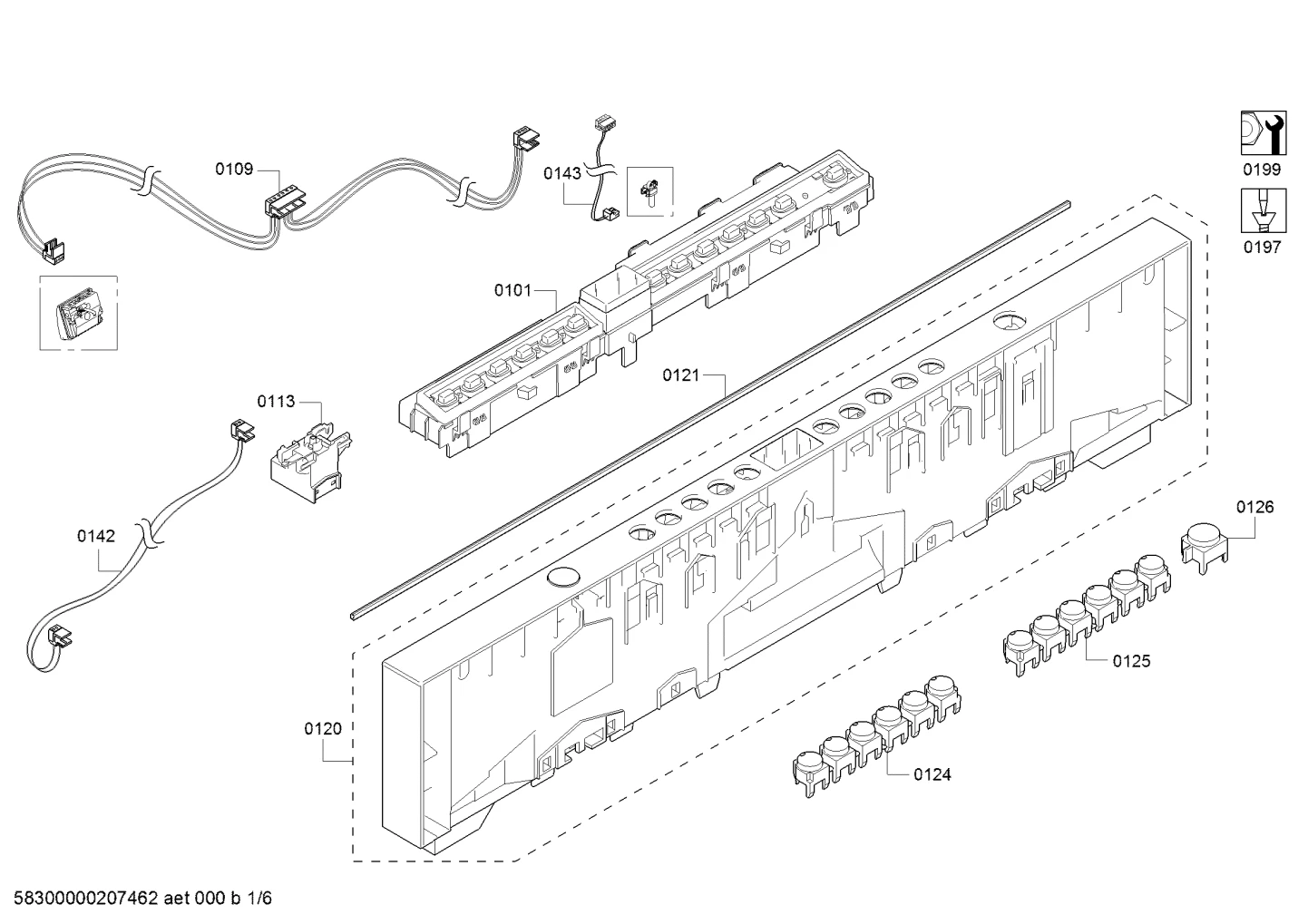

Handles & Knobs, Bearings (0101-8310)
Parts in Handles & Knobs, Bearings (0101-8310)
18 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | Operating module | $65.00 Part Advantage |
| 0113 |  | Switch | $30.97 Part Advantage |
| 0120 |  | Panel-facia | - |
| 0121 |  | Sealing | $3.35 Part Advantage |
| 0124 |  | Push button set | - |
| 0125 | | Push button set | - |
| 0126 |  | Key | $18.92 Parts Dr |
| 0143 |  | Cable | $62.10 Part Advantage |
| 0197 |  | Installation set | $30.13 Part Advantage |
| 0199 |  | Lid | $34.25 ApplianceParts Pro |
| 0199 |  | Repair-set | $49.38 Part Advantage |
| 0199 |  | Bearing | - |
| 0199 |  | Bearing | - |
| 8102 |  | Micro-Filter | $11.95 ApplianceParts Pro |
| 8110 |  | Tall/Large Item Sprinkler Head | $13.96 Parts Dr |
| 8130 |  | 00617210NLA Hard Water Test Strip | Discontinued |
| 8301 |  | 18032740NLA Instruction manual | Discontinued |
| 8310 | | Brochure | - |
