Model
Bosch SHVM4AYB3N/24
Dishwasher
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
SHVM4AYB3N/24Dishwasher
6 diagrams113 parts

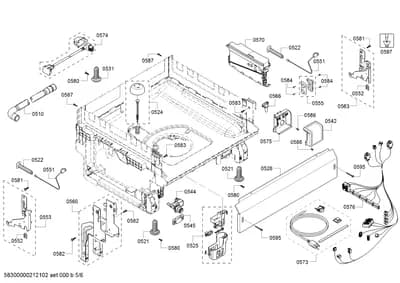

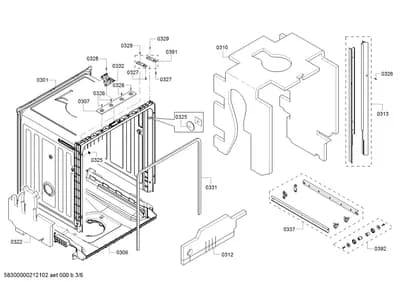

Parts Sections (6)
Diagram

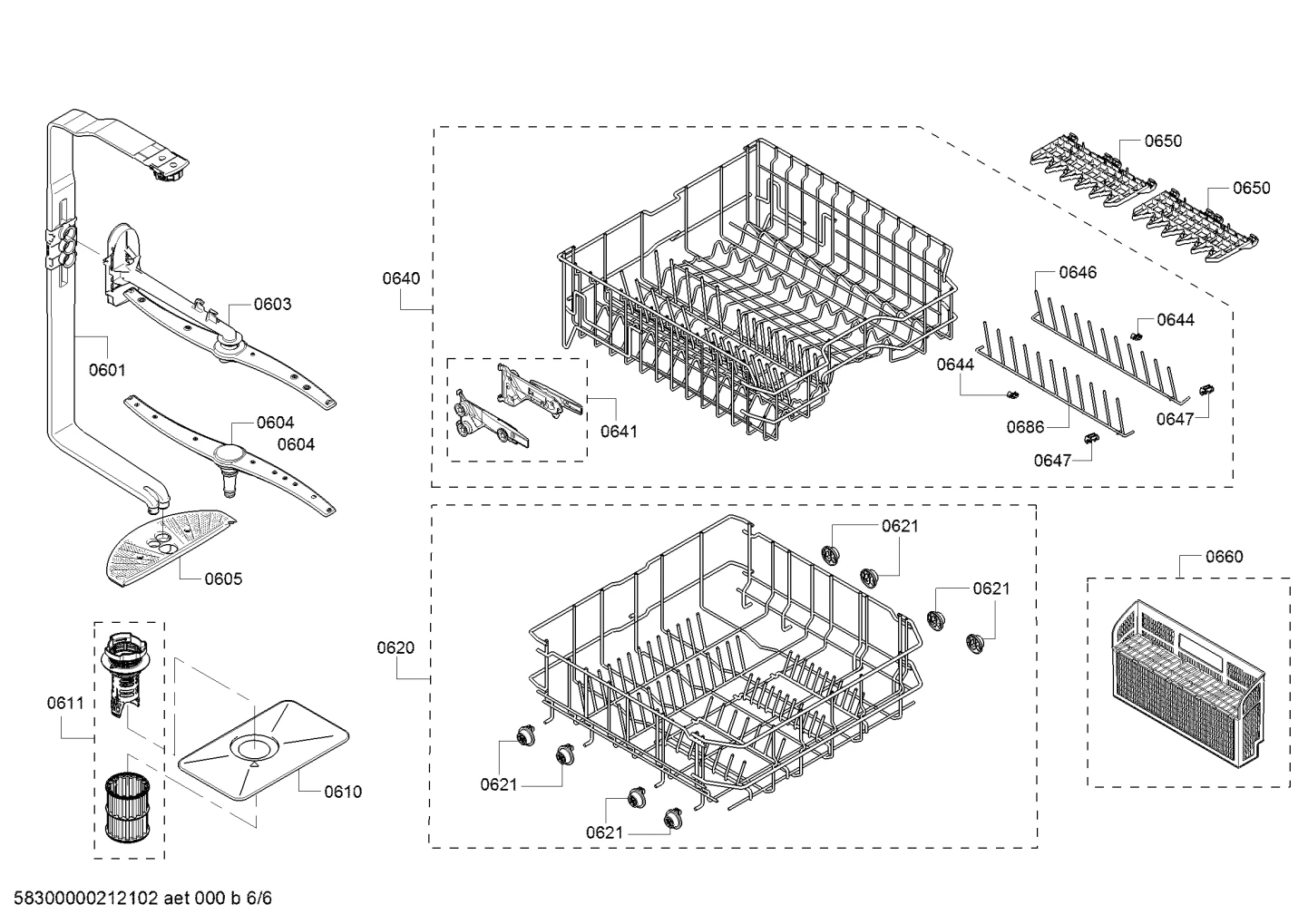

Baskets & Wheels, Spray Arms (0601-8310)
Parts in Baskets & Wheels, Spray Arms (0601-8310)
21 parts

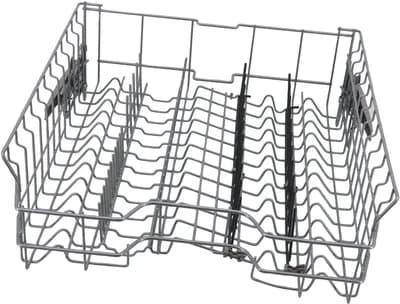

| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0601 |  | Tube | $26.43 Parts Dr |
| 0603 |  | Spray arm | $18.41 Part Advantage |
| 0604 |  | Spray arm | $12.16 Parts Dr |
| 0605 |  | Cover | $37.38 Parts Dr |
| 0610 |  | Drain Mesh Filter | $20.51 Part Advantage |
| 0611 |  | Coarse Filter & Micro-Filter | $30.13 Part Advantage |
| 0620 |  | 00770350NLA Crockery basket | Discontinued |
| 0621 | | Wheel | $90.57 Parts Dr |
| 0621 | | Wheel | $90.57 Parts Dr |
| 0640 |  | 00775433NLA Crockery basket | Discontinued |
| 0641 | | Rail-pull out | $61.09 |
| 0644 |  | Holder | $3.35 Part Advantage |
| 0646 |  | 00752982NLA Insert | Discontinued |
| 0647 |  | Holder | $3.35 Part Advantage |
| 0650 |  | Cup rack | - |

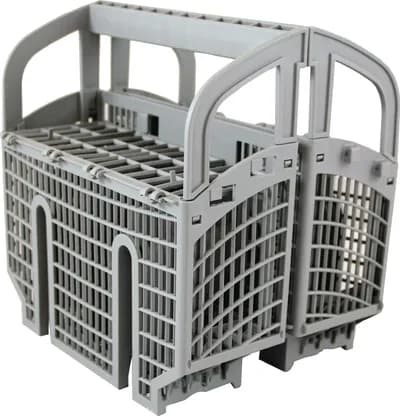

| 0660 |  | Cutlery Basket | $24.27 Part Advantage |
| 0686 |  | 00752981NLA Insert | Discontinued |
| 8102 |  | Micro-Filter | $11.95 ApplianceParts Pro |
| 8110 |  | Tall/Large Item Sprinkler Head | $13.96 Parts Dr |
| 8301 | | Instruction manual | - |
| 8310 | | Brochure | - |
