Model
Bosch SHVM4AYB3N/26
Dishwasher
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
SHVM4AYB3N/26Dishwasher
6 diagrams110 parts
Parts Sections (6)
Diagram

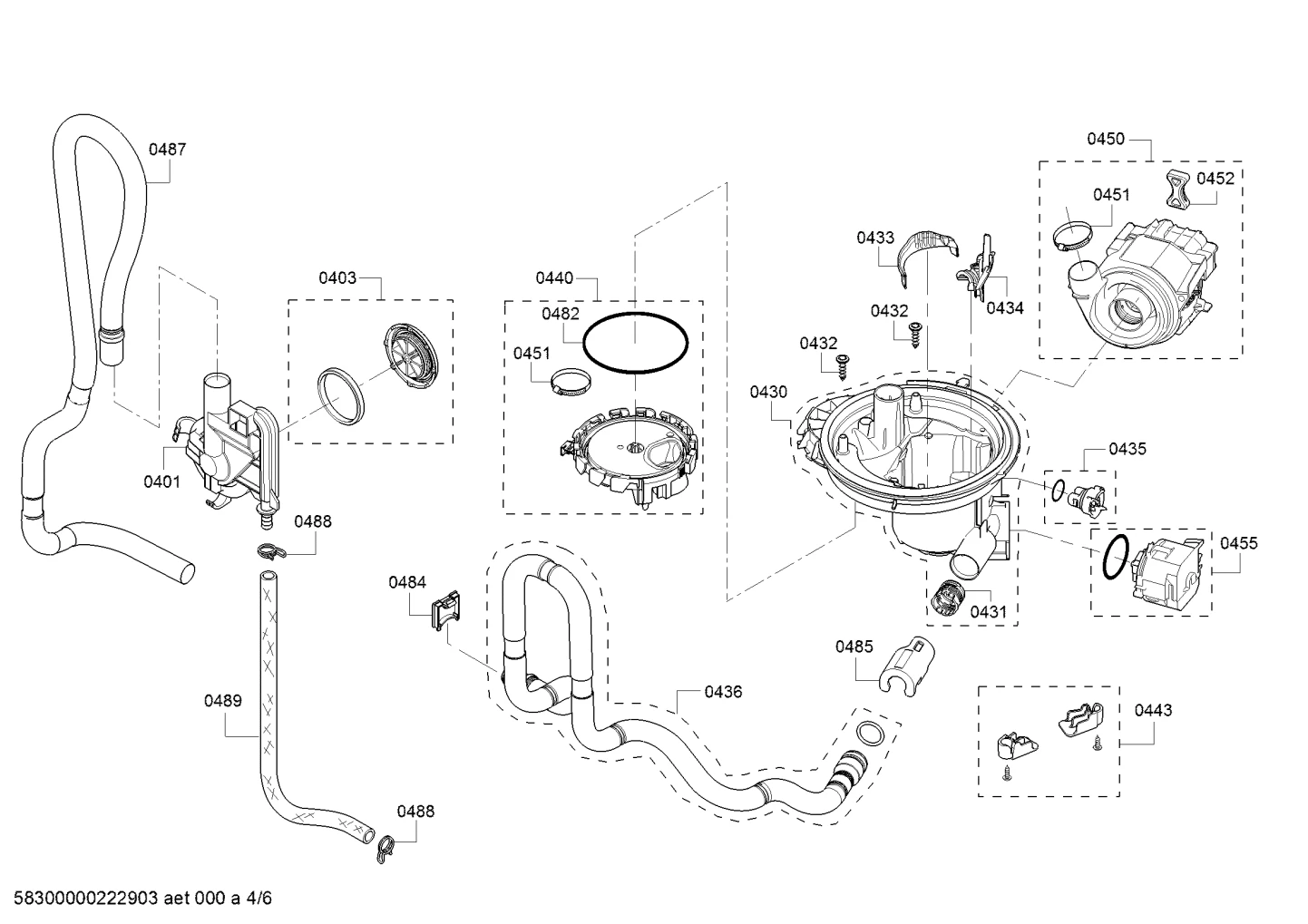

Door & Housing, Lids & Covers (0401-8110)
Parts in Door & Housing, Lids & Covers (0401-8110)
24 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0401 |  | Water inlet | $14.65 Part Advantage |
| 0403 |  | Cover | - |
| 0430 |  | Sump | $28.69 Part Advantage |
| 0431 |  | Valve-non return | $15.07 Part Advantage |
| 0432 |  | Screw | $1.67 Part Advantage |
| 0433 |  | Cover | $14.23 Part Advantage |
| 0434 |  | Lid | $15.49 Part Advantage |
| 0435 |  | Sensor | $31.01 Parts Dr |
| 0436 |  | Drain hose | $14.23 Part Advantage |
| 0440 |  | Lid | $42.36 Parts Dr |
| 0443 |  | Lock-clamp | $5.02 ApplianceParts Pro |
| 0450 |  | Heat pump | $95.37 Part Advantage |
| 0451 |  | Hose clamp | $17.16 Part Advantage |
| 0452 |  | Suspension | $6.41 PartSelect |
| 0455 |  | Pump-drain | $29.81 Part Advantage |
| 0456 |  | Protective cover | - |
| 0482 |  | Sealing | $3.35 Part Advantage |
| 0484 |  | Stress-relief | $7.48 Parts Dr |
| 0485 |  | Lock-clamp | - |
| 0487 |  | Hose-vent | $10.47 Part Advantage |
| 0488 |  | Hose clamp | $13.34 ApplianceParts Pro |
| 0489 |  | Hose-inlet | $16.74 Part Advantage |
| 8102 |  | Micro-Filter | $11.95 ApplianceParts Pro |
| 8110 |  | Tall/Large Item Sprinkler Head | $13.96 Parts Dr |
