Model
Bosch SHVM88Z73N/01
Dishwasher
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
SHVM88Z73N/01Dishwasher
9 diagrams147 parts
Parts Sections (9)
Diagram

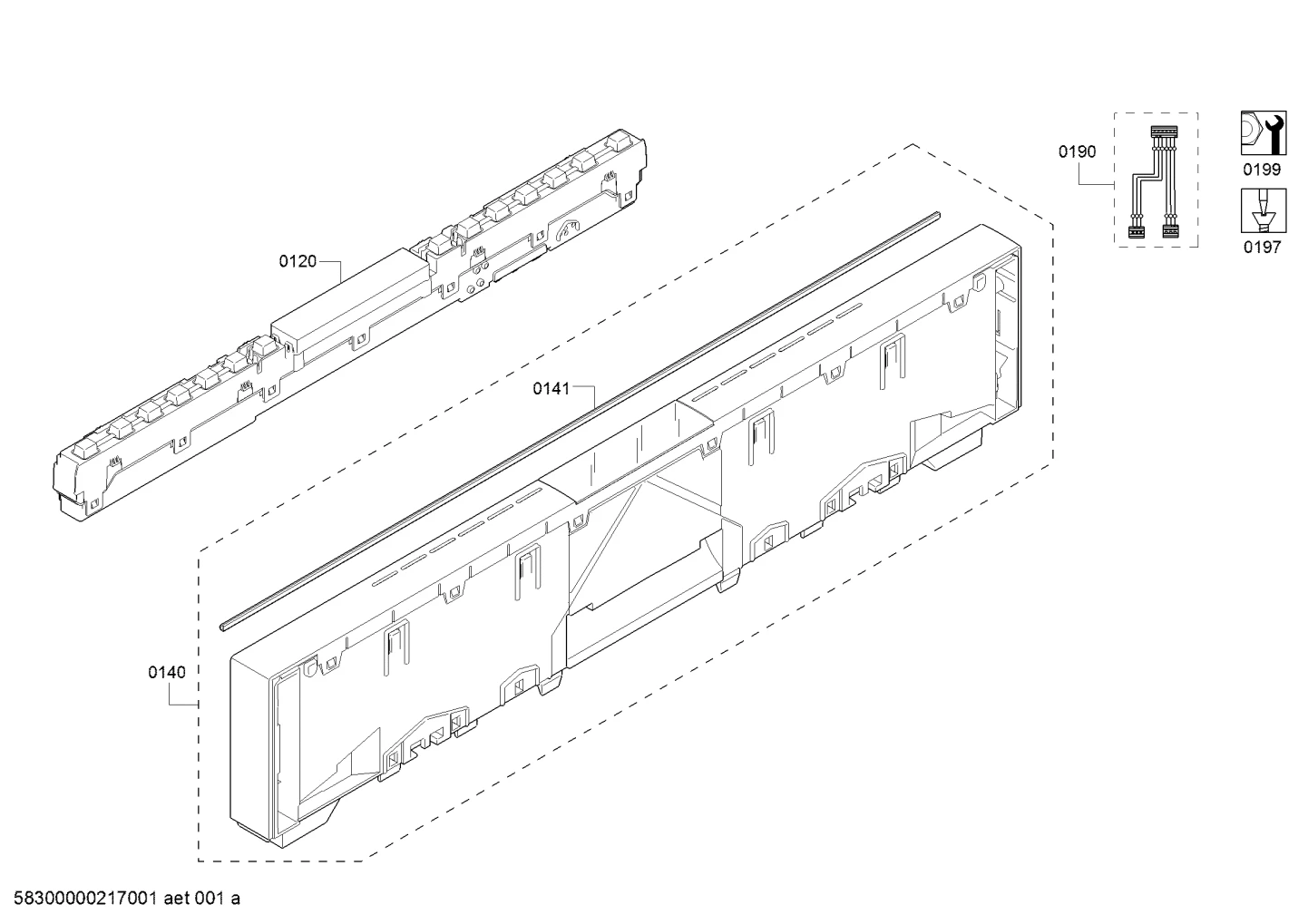

Door & Housing, Bearings (0120-0199)
Parts in Door & Housing, Bearings (0120-0199)
15 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0120 |  | Operating module not programmed | - |
| 0120 |  | Operating module programmed | $124.50 ApplianceParts Pro |
| 0140 |  | Panel-facia | - |
| 0141 |  | Sealing | $3.35 Part Advantage |
| 0190 |  | Cable harness | $7.79 ApplianceParts Pro |
| 0190 |  | Cable harness | $12.44 Parts Dr |
| 0197 |  | Installation set | $30.13 Part Advantage |
| 0197 |  | Template | $35.47 PartSelect |
| 0199 |  | Lid | $34.25 ApplianceParts Pro |
| 0199 |  | Repair set-pump sump-seal | $36.83 Part Advantage |
| 0199 |  | Repair-set | $49.38 Part Advantage |
| 0199 |  | Cover | $7.53 Part Advantage |
| 0199 |  | Tube | $31.81 Part Advantage |
| 0199 |  | Bearing | - |
| 0199 |  | Bearing | - |
