Model
Bosch SHVM98W73N/13
Dishwasher
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
SHVM98W73N/13Dishwasher
6 diagrams132 parts
Parts Sections (6)
Diagram

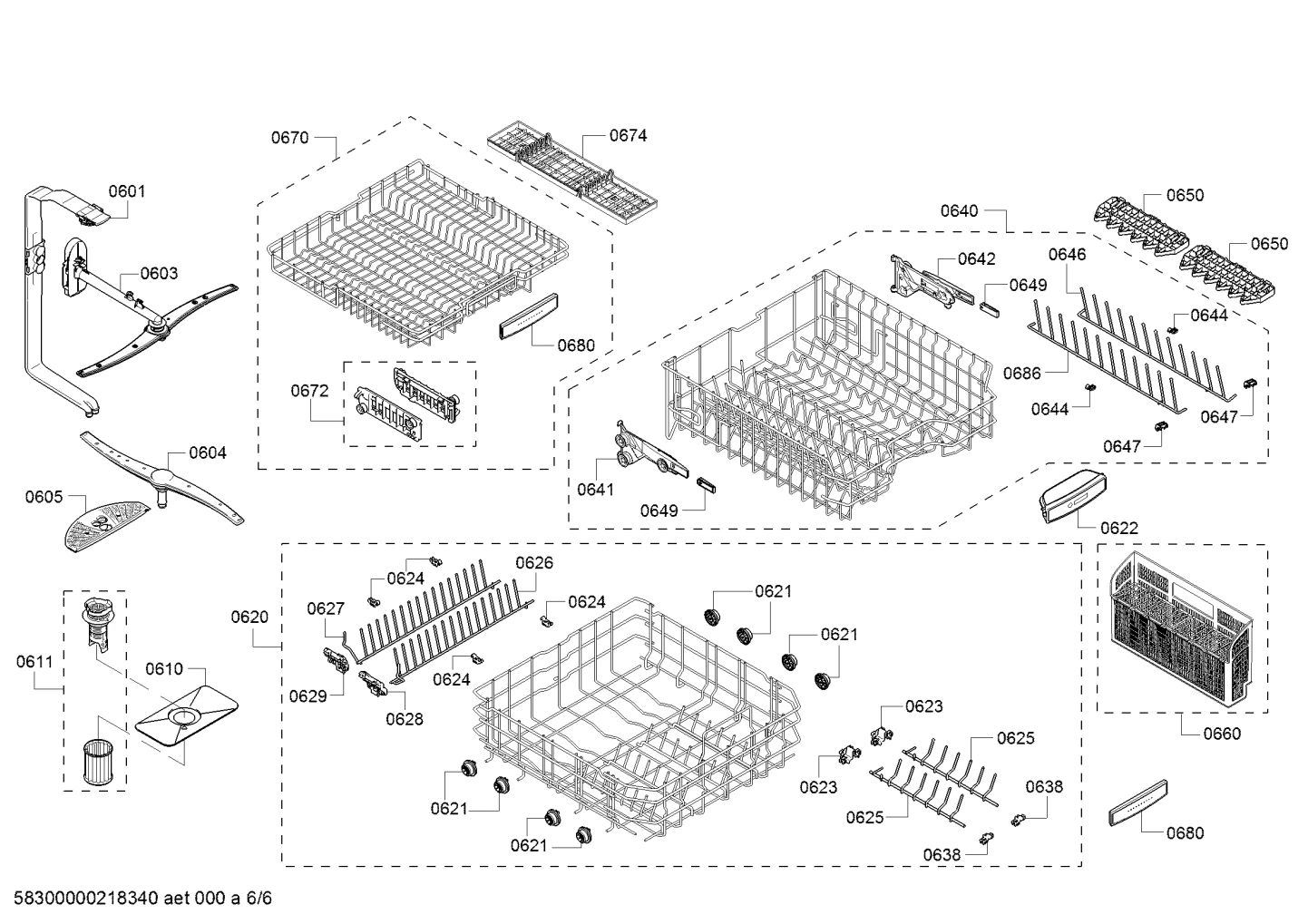

Flaps & Holders, Baskets & Wheels (0601-8130)
Parts in Flaps & Holders, Baskets & Wheels (0601-8130)
35 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0601 |  | Tube | $31.81 Part Advantage |
| 0603 |  | Spray arm top | $20.93 Part Advantage |
| 0604 |  | Spray arm bottom | $10.04 Part Advantage |
| 0605 |  | Cover | $37.38 Parts Dr |
| 0610 |  | Drain Mesh Filter | $20.51 Part Advantage |
| 0611 |  | Coarse Filter & Micro-Filter | $30.13 Part Advantage |
| 0620 |  | Crockery basket | $105.08 Part Advantage |
| 0621 | | Wheel | $90.57 Parts Dr |
| 0621 | | Wheel | $90.57 Parts Dr |
| 0621 |  | Wheel | $38.17 Parts Dr |
| 0622 |  | Handle | $15.92 ApplianceParts Pro |
| 0623 |  | Holder | $3.35 Part Advantage |
| 0624 |  | Flip Tine | $3.35 Part Advantage |
| 0625 |  | 12016780NLA Insert | Discontinued |
| 0626 |  | 12014099NLA Insert | Discontinued |
| 0627 |  | 12014098NLA Insert | Discontinued |
| 0628 |  | Holder | $5.02 Part Advantage |
| 0629 |  | Holder | $5.02 Part Advantage |
| 0638 |  | Holder | $4.45 ApplianceParts Pro |
| 0640 | | Crockery basket | $106.70 Part Advantage |
| 0641 |  | 12014546NLA Rail-pull out | Discontinued |
| 0642 |  | 12014547NLA Rail-pull out | Discontinued |
| 0644 |  | Holder | $3.35 Part Advantage |
| 0646 |  | 00752276NLA Insert | Discontinued |
| 0647 |  | Holder | $3.35 Part Advantage |
| 0649 |  | Insert | $1.73 RepairClinic |
| 0650 |  | Cup rack | $6.41 PartSelect |
| 0660 |  | Cutlery Basket | $24.27 Part Advantage |
| 0670 |  | Flexible 3rd Rack | $49.38 Part Advantage |
| 0672 |  | Holder | $39.34 Part Advantage |
| 0674 |  | MyWay™ Rack Silverware Accessory | $16.68 RepairClinic |
| 0680 |  | Handle | - |
| 0686 |  | 00752274NLA Insert | Discontinued |
| 8102 |  | Micro-Filter | $11.95 ApplianceParts Pro |
| 8130 |  | 00617210NLA Hard Water Test Strip | Discontinued |
