Model
Bosch SHX3AR75UC/14
Dishwasher
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
SHX3AR75UC/14Dishwasher
6 diagrams103 parts
Parts Sections (6)
Diagram

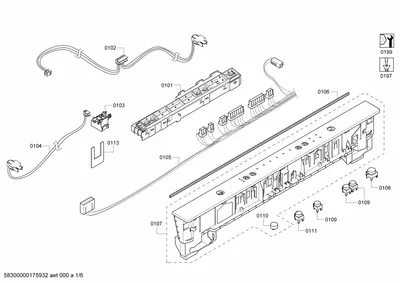

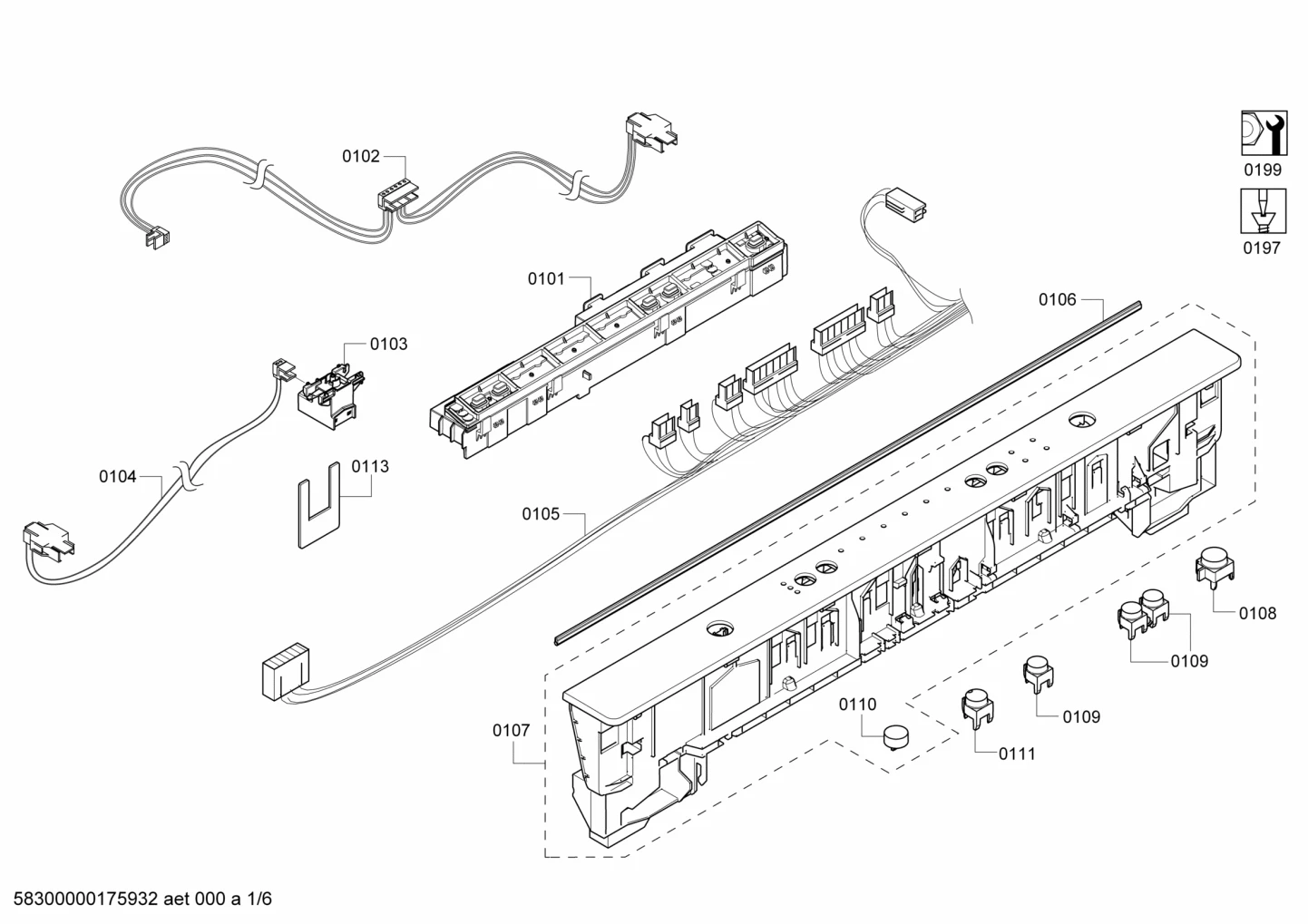

Switches, Seals & Gaskets (0101-0199)
Parts in Switches, Seals & Gaskets (0101-0199)
14 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | Operating module | $63.89 Parts Dr |
| 0102 |  | Cable | $62.10 Part Advantage |
| 0103 |  | On/Off Main Switch | $21.35 Part Advantage |
| 0104 | | Cable | $62.10 Part Advantage |
| 0105 |  | Cable harness | $86.94 Part Advantage |
| 0106 |  | Sealing | $3.35 Part Advantage |
| 0107 |  | Panel-facia | $63.35 Parts Dr |
| 0108 |  | Key | $11.95 ApplianceParts Pro |
| 0109 |  | Key | $4.19 Part Advantage |
| 0110 |  | Key | - |
| 0111 |  | Key | - |
| 0113 |  | Support | - |
| 0197 |  | Installation set | - |
| 0199 |  | Part not included in this appliance | - |
