Model
Bosch SHX3AR76UC/24
Dishwasher
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
SHX3AR76UC/24Dishwasher
6 diagrams117 parts
Parts Sections (6)

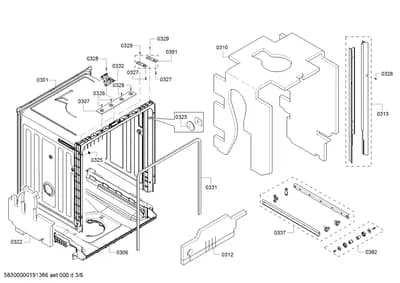

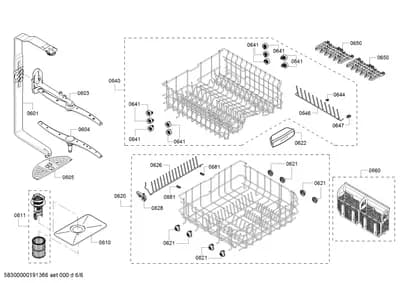

Diagram

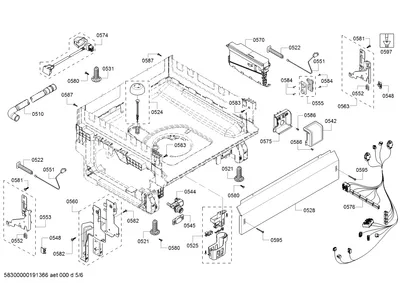

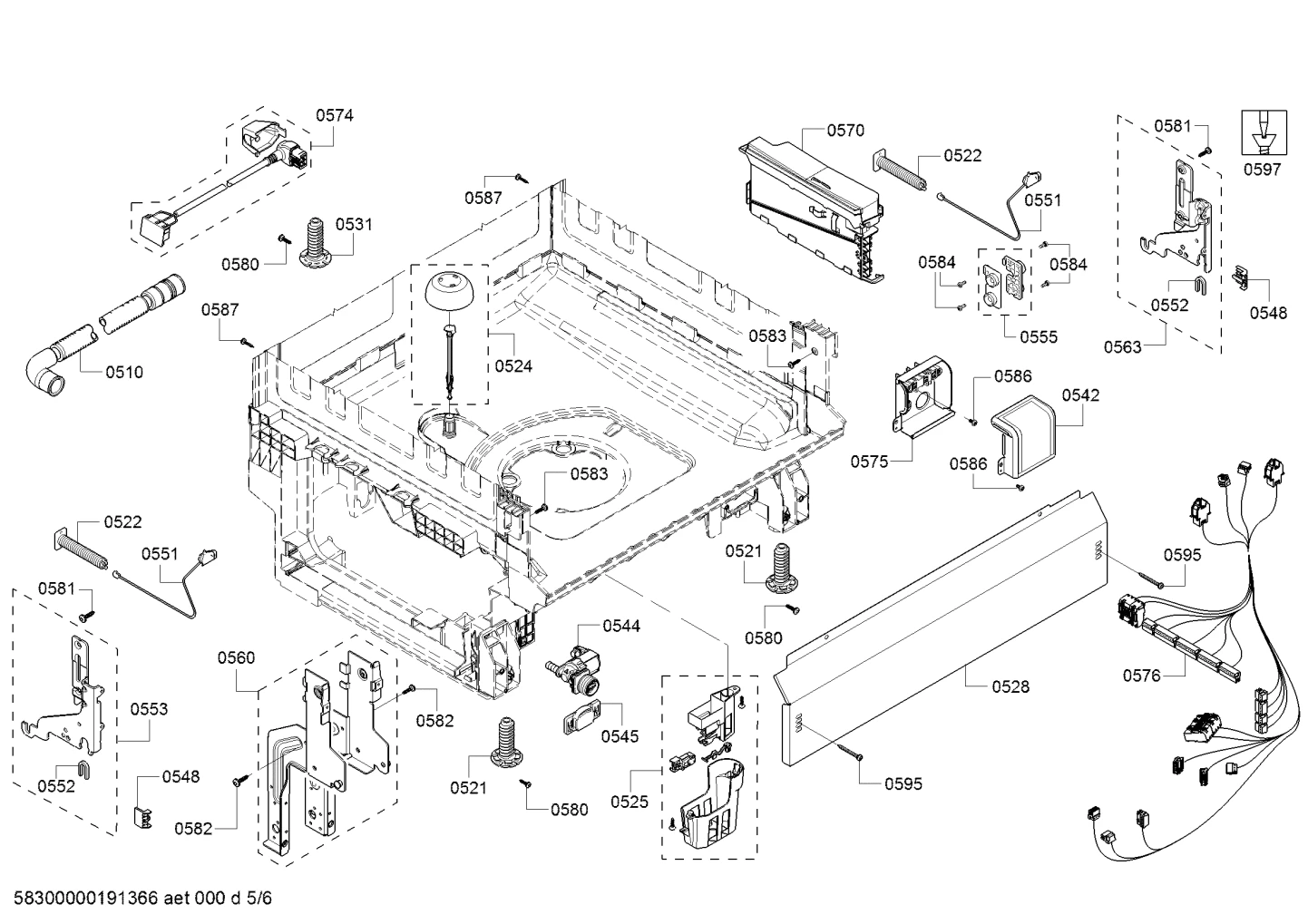

Screws, Door & Housing (0510-8310)
Parts in Screws, Door & Housing (0510-8310)
34 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0510 |  | Drain Hose | $21.74 Part Advantage |
| 0521 |  | Foot | $12.56 Part Advantage |
| 0522 |  | Spring | $7.54 ApplianceParts Pro |
| 0524 |  | Hood | $7.79 ApplianceParts Pro |
| 0525 |  | Housing | $22.88 Parts Dr |
| 0528 |  | Black Toe Panel | $49.68 Part Advantage |
| 0531 |  | Foot | $4.19 Part Advantage |
| 0542 |  | Cover | $9.63 Part Advantage |
| 0544 |  | Valve access | $15.56 Part Advantage |
| 0545 |  | Lock-clamp | - |
| 0548 |  | Support | $8.10 ApplianceParts Pro |
| 0551 |  | Rope | $5.86 Part Advantage |
| 0552 |  | Hinge Bushing | $10.88 Part Advantage |
| 0553 |  | Hinge Lever | $19.25 Part Advantage |
| 0555 |  | Adjusting device | - |
| 0560 |  | Hinge-plate | $26.78 Part Advantage |
| 0563 |  | Hinge Lever | $15.64 Part Advantage |
| 0570 |  | 12026962replaces 12026543 Power module not programmed | $241.64 PartSelect |
| 0570 |  | Power module programmed | $197.35 Part Advantage |
| 0574 |  | Power cord | $25.70 Parts Dr |
| 0575 |  | Terminal box | $20.93 Part Advantage |
| 0576 |  | Cable harness | $59.04 Parts Dr |
| 0580 |  | Screw | $7.96 Part Advantage |
| 0581 |  | Screw | $7.22 RepairClinic |
| 0582 |  | Screw | $1.95 ApplianceParts Pro |
| 0583 |  | Screw | $4.19 Part Advantage |
| 0584 |  | Screw | $4.52 Parts Dr |
| 0586 |  | Screw | $4.19 Part Advantage |
| 0587 |  | Screw | $4.19 Part Advantage |
| 0595 |  | Screw | $2.51 Part Advantage |
| 8102 |  | Micro-Filter | $11.95 ApplianceParts Pro |
| 8110 |  | Tall/Large Item Sprinkler Head | $15.93 RepairClinic |
| 8301 |  | Instruction manual | - |
| 8310 | | Brochure | - |
