Model
Bosch SHX46A05UC/21
Dishwasher
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
SHX46A05UC/21Dishwasher
6 diagrams146 parts
Parts Sections (6)
Diagram

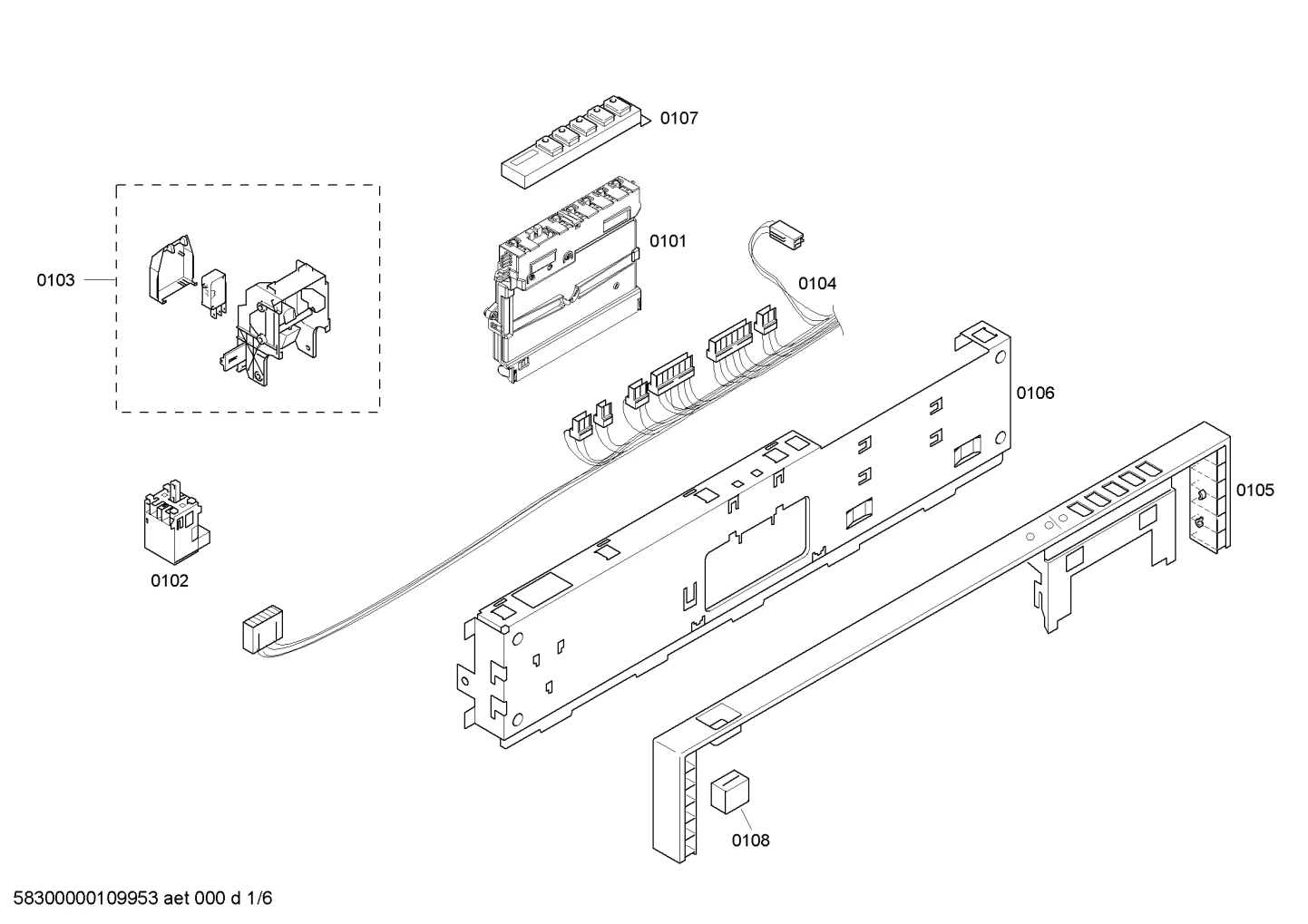

Switches, Door & Housing (0101-8101)
Parts in Switches, Door & Housing (0101-8101)
12 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | 00496013NLA Control unit | Discontinued |
| 0102 |  | Switch | - |
| 0102 |  | 00175338NLA Switch | Discontinued |
| 0102 |  | On/Off Main Switch | $48.55 Part Advantage |
| 0103 |  | 00165887NLA Lock | Discontinued |
| 0104 |  | 00496018NLA Cable harness | Discontinued |
| 0105 | | Panel-facia | - |
| 0106 |  | 00677523NLA Frame | Discontinued |
| 0106 | | 00677523NLA Frame | Discontinued |
| 0107 |  | 00488429NLA Push button set | Discontinued |
| 0108 |  | 00424501NLA Key | Discontinued |
| 8101 |  | Micro-Filter | $11.95 ApplianceParts Pro |
