Model
Bosch SHX46A06UC/30
Dishwasher
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
SHX46A06UC/30Dishwasher
6 diagrams146 parts
Parts Sections (6)
Diagram

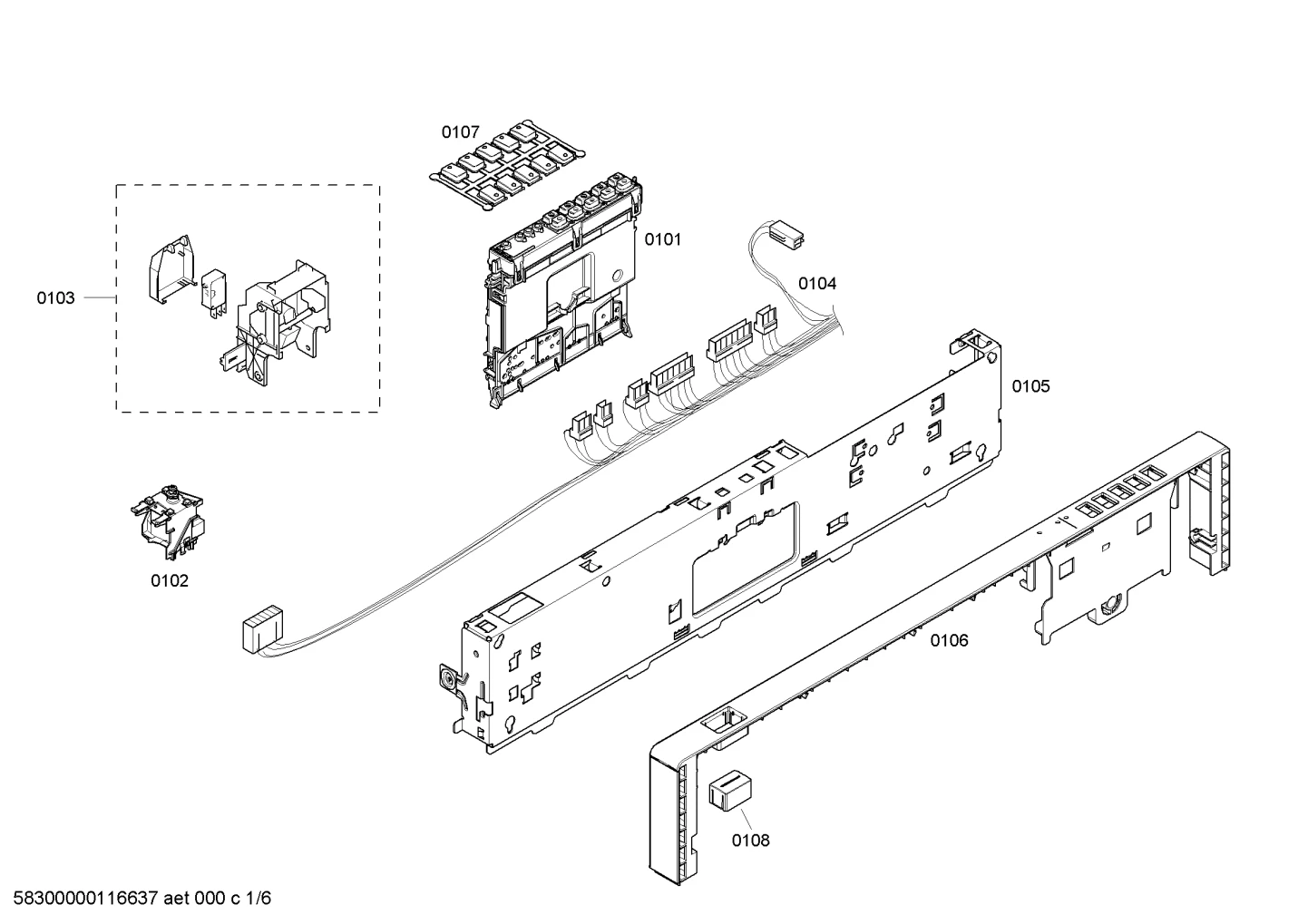

Switches, latches (0101-8101)
Parts in Switches, latches (0101-8101)
9 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | Control Module | $229.35 Parts Dr |
| 0102 |  | On/Off Main Switch | $48.55 Part Advantage |
| 0103 |  | Door Latch | $67.48 Part Advantage |
| 0104 |  | Cable harness | - |
| 0105 |  | 00677523NLA Frame | Discontinued |
| 0106 |  | 00447129NLA Panel-facia | Discontinued |
| 0107 |  | Push Button Array | $22.60 Part Advantage |
| 0108 |  | 00424501NLA Key | Discontinued |
| 8101 |  | Micro-Filter | $11.95 ApplianceParts Pro |
