ModelBosch
SHX53DM5N/37Dishwasher
9 diagrams108 parts
Parts Sections (9)
Diagram

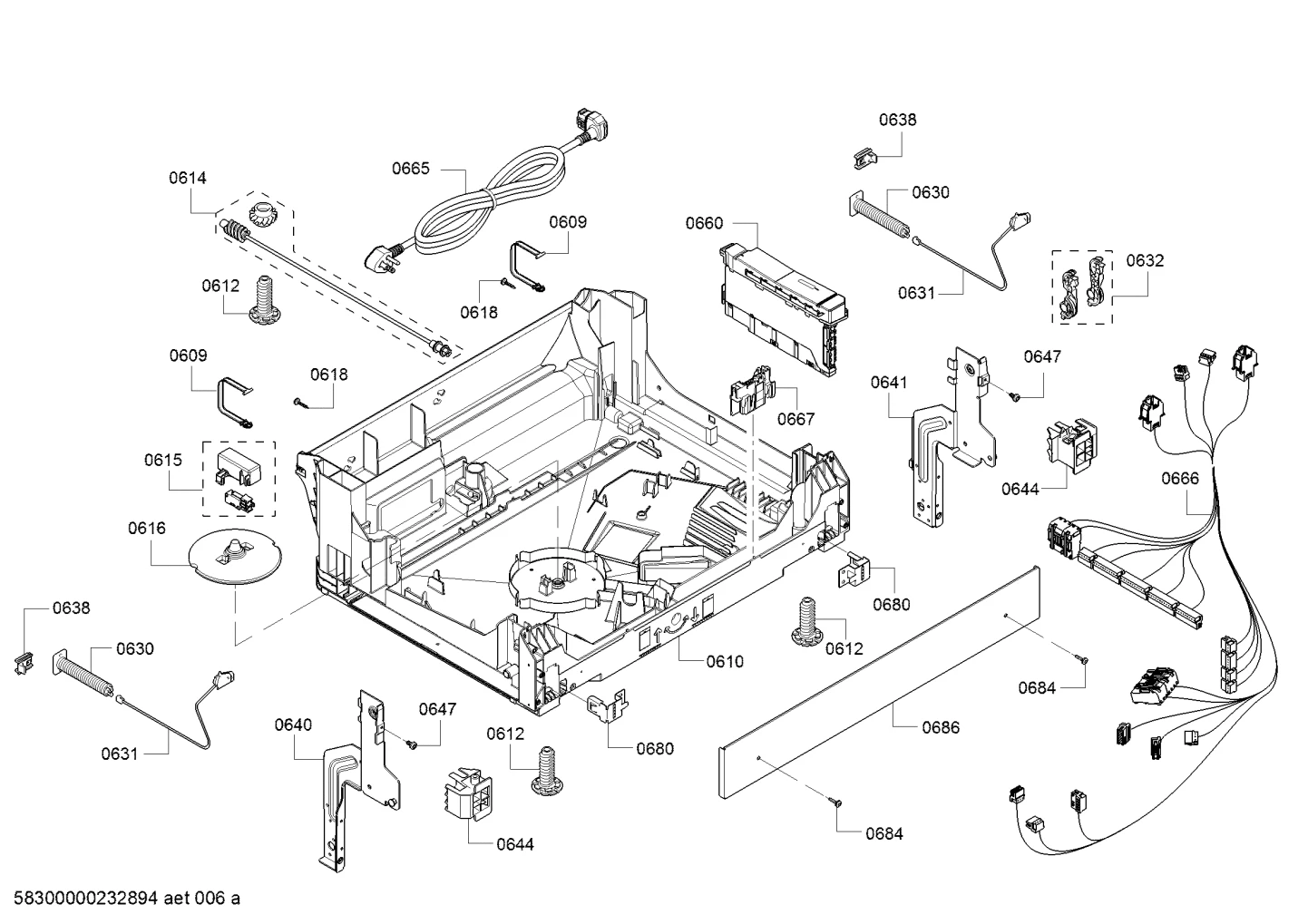

Door & Housing, Flaps & Holders (0609-0686)
Parts in Door & Housing, Flaps & Holders (0609-0686)
22 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0609 |  | Holder | $4.45 ApplianceParts Pro |
| 0610 |  | Case-bottom | $57.13 Part Advantage |
| 0612 |  | Foot | $12.56 Part Advantage |
| 0614 |  | Worm gear | $9.21 Part Advantage |
| 0615 |  | Housing | $7.53 Part Advantage |
| 0616 |  | Float | $16.33 Part Advantage |
| 0618 |  | Screw | $1.67 Part Advantage |
| 0630 |  | Spring | $23.02 Part Advantage |
| 0631 |  | Rope | $16.33 Part Advantage |
| 0632 |  | Guide | $12.56 Part Advantage |
| 0638 |  | Holder | $5.02 Part Advantage |
| 0640 |  | Hinge-plate | $17.58 Part Advantage |
| 0641 |  | Hinge-plate | $17.58 Part Advantage |
| 0644 |  | Support | $5.95 ApplianceParts Pro |
| 0647 |  | Screw | $9.38 RepairClinic |
| 0660 |  | Power module programmed | $136.71 Part Advantage |
| 0665 |  | Power cord | $19.33 Part Advantage |
| 0666 | | Cable harness | $55.46 ApplianceParts Pro |
| 0667 |  | SMM not programmed | $207.02 Part Advantage |
| 0680 |  | Support | $13.50 Parts Dr |
| 0684 |  | Screw | $7.96 Part Advantage |
| 0686 |  | Panel-base | $12.56 Part Advantage |
