Model
Bosch SHX53T55UC/02
Dishwasher
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
SHX53T55UC/02Dishwasher
6 diagrams120 parts
Parts Sections (6)
Diagram

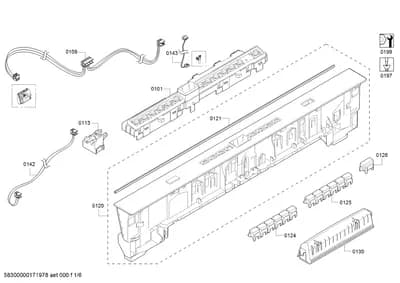

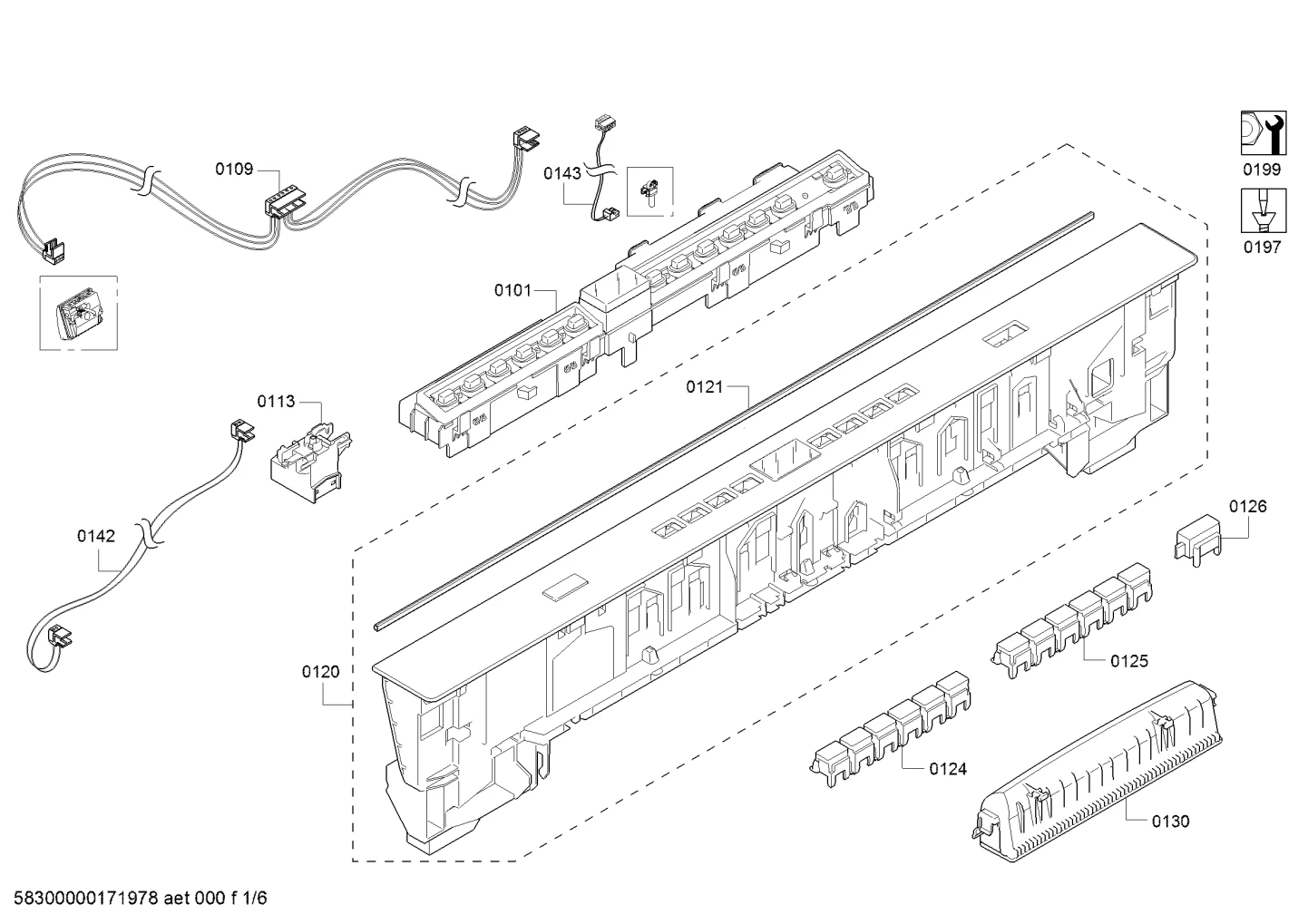

Handles & Knobs, Mounting & Fixing (0101-8110)
Parts in Handles & Knobs, Mounting & Fixing (0101-8110)
23 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | Operating module | $76.18 Part Advantage |
| 0109 |  | Cable | $62.10 Part Advantage |
| 0113 |  | Switch | $30.97 Part Advantage |
| 0113 |  | Support | - |
| 0120 |  | Panel-facia | $83.95 ApplianceParts Pro |
| 0121 |  | Sealing | $3.35 Part Advantage |
| 0124 |  | Push button set | $6.33 RepairClinic |
| 0125 | | Push button set | $6.33 RepairClinic |
| 0126 |  | Key | $18.92 Parts Dr |
| 0130 |  | Handle | $11.30 Part Advantage |
| 0142 | | Cable | $62.10 Part Advantage |
| 0143 | | Cable | $62.10 Part Advantage |
| 0197 |  | Installation set | $19.25 Part Advantage |
| 0199 |  | Repair set-pump sump-seal | $36.83 Part Advantage |
| 0199 |  | Power cord | $96.86 Part Advantage |
| 0199 | | Power cord | $96.86 Part Advantage |
| 0199 |  | Power cord | $52.97 Part Advantage |
| 0199 |  | Power cord | $30.95 Part Advantage |
| 0199 |  | Mounting set | $10.04 Part Advantage |
| 0199 |  | Repair set-pump sump-seal | $23.26 ApplianceParts Pro |
| 0199 |  | Repair-set | $49.38 Part Advantage |
| 8102 |  | Micro-Filter | $11.95 ApplianceParts Pro |
| 8110 |  | Tall/Large Item Sprinkler Head | $13.96 Parts Dr |
