Model
Bosch SHX53TL5UC/02
Dishwasher
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
SHX53TL5UC/02Dishwasher
6 diagrams120 parts
Parts Sections (6)
Diagram

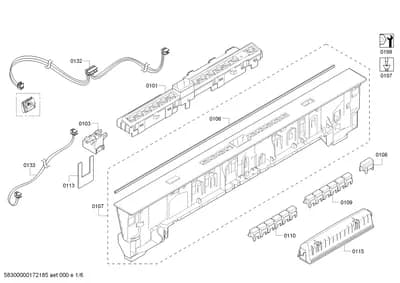

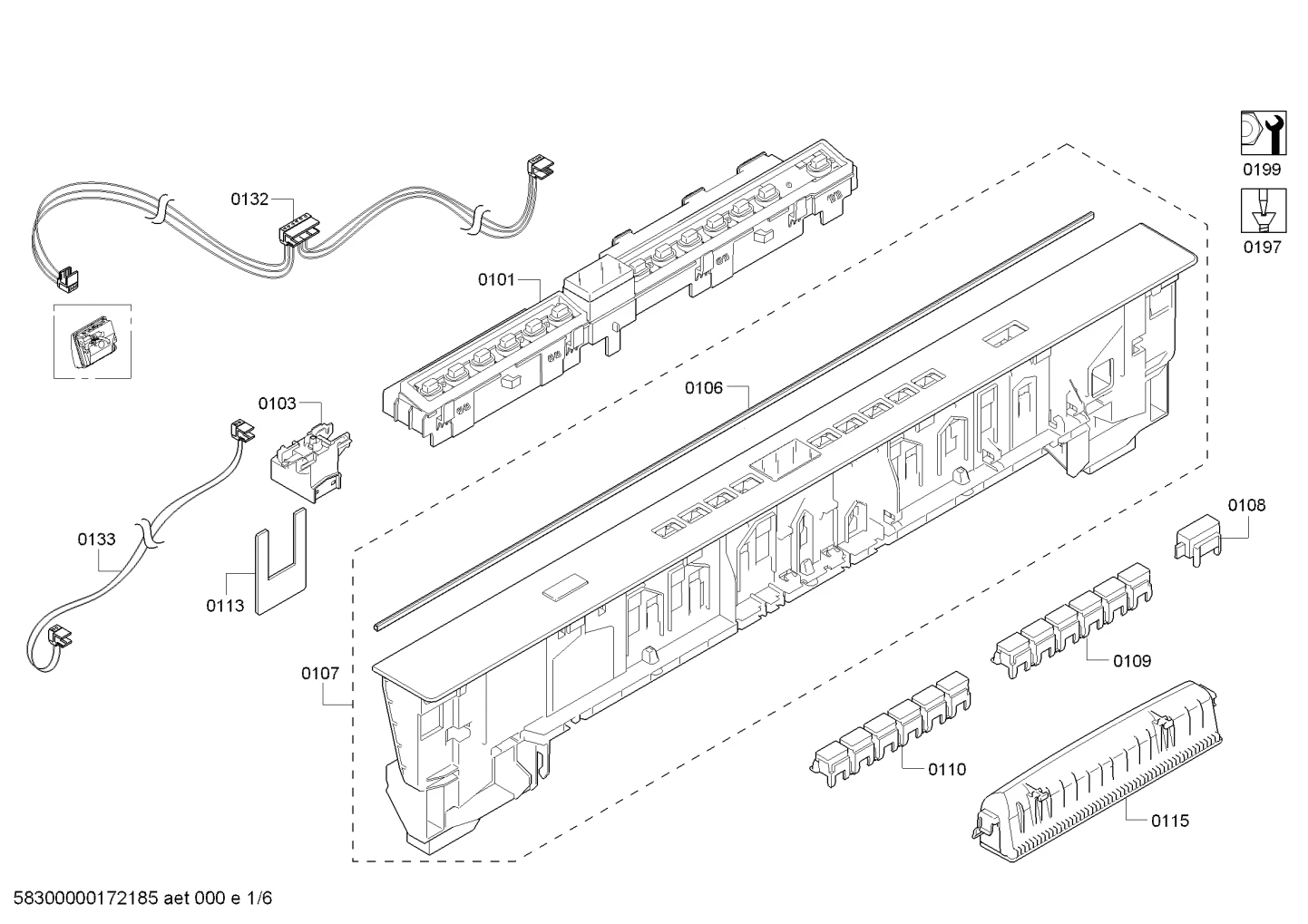

Handles & Knobs, Mounting & Fixing (0101-0199)
Parts in Handles & Knobs, Mounting & Fixing (0101-0199)
20 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | Operating module | $76.18 Part Advantage |
| 0103 |  | Switch | $30.97 Part Advantage |
| 0106 |  | Sealing | $3.35 Part Advantage |
| 0107 |  | Panel-facia | - |
| 0108 |  | Button | $3.35 Part Advantage |
| 0109 |  | Push button set | $6.33 RepairClinic |
| 0110 | | Push button set | $6.33 RepairClinic |
| 0113 |  | Support | - |
| 0115 |  | Handle | $11.30 Part Advantage |
| 0132 |  | Cable | $62.10 Part Advantage |
| 0133 | | Cable | $62.10 Part Advantage |
| 0197 |  | Installation set | $19.25 Part Advantage |
| 0199 |  | Repair set-pump sump-seal | $36.83 Part Advantage |
| 0199 |  | Power cord | $96.86 Part Advantage |
| 0199 | | Power cord | $96.86 Part Advantage |
| 0199 |  | Power cord | $52.97 Part Advantage |
| 0199 |  | Power cord | $30.95 Part Advantage |
| 0199 |  | Mounting set | $10.04 Part Advantage |
| 0199 |  | Repair set-pump sump-seal | $23.26 ApplianceParts Pro |
| 0199 |  | Repair-set | $49.38 Part Advantage |
