Model
Bosch SHX5AEM2N/01
Dishwasher
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
SHX5AEM2N/01Dishwasher
9 diagrams112 parts
Parts Sections (9)
Diagram

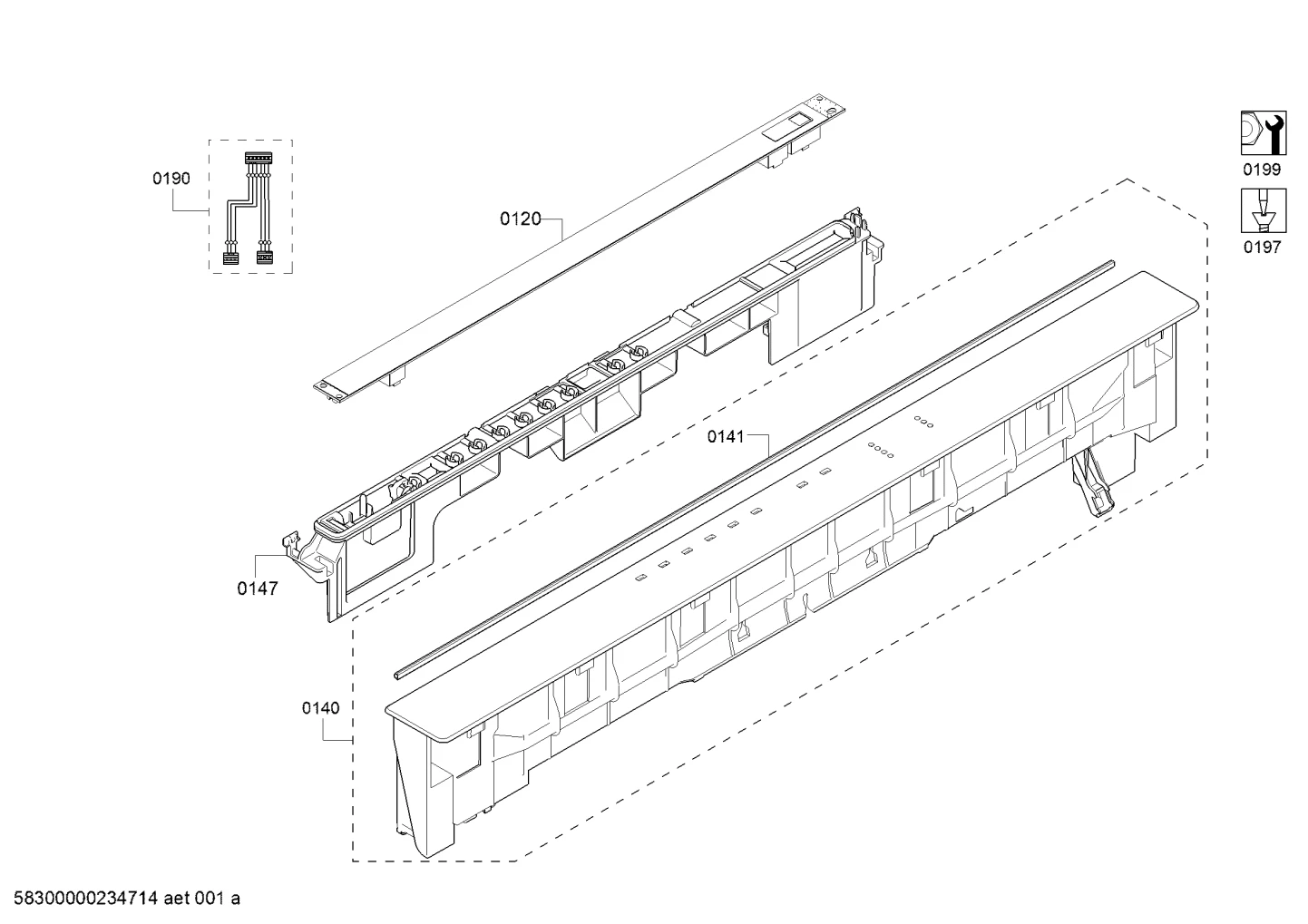

Door & Housing, Seals & Gaskets (0120-0199)
Parts in Door & Housing, Seals & Gaskets (0120-0199)
10 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0120 |  | Operating module | $50.09 Part Advantage |
| 0140 | | Panel-facia | - |
| 0141 |  | Sealing | $3.35 Part Advantage |
| 0147 | | Cover | $9.95 ApplianceParts Pro |
| 0190 |  | Cable harness | $7.79 ApplianceParts Pro |
| 0190 |  | Cable | $61.63 ApplianceParts Pro |
| 0197 | | Installation set | $11.28 ApplianceParts Pro |
| 0199 | | Part not included in this appliance | - |
| 0199 |  | Lid | $34.25 ApplianceParts Pro |
| 0199 |  | Repair set-pump sump-seal | $36.83 Part Advantage |
