Model
Bosch SHX6AP02UC/06
Dishwasher
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
SHX6AP02UC/06Dishwasher
6 diagrams105 parts
Parts Sections (6)
Diagram

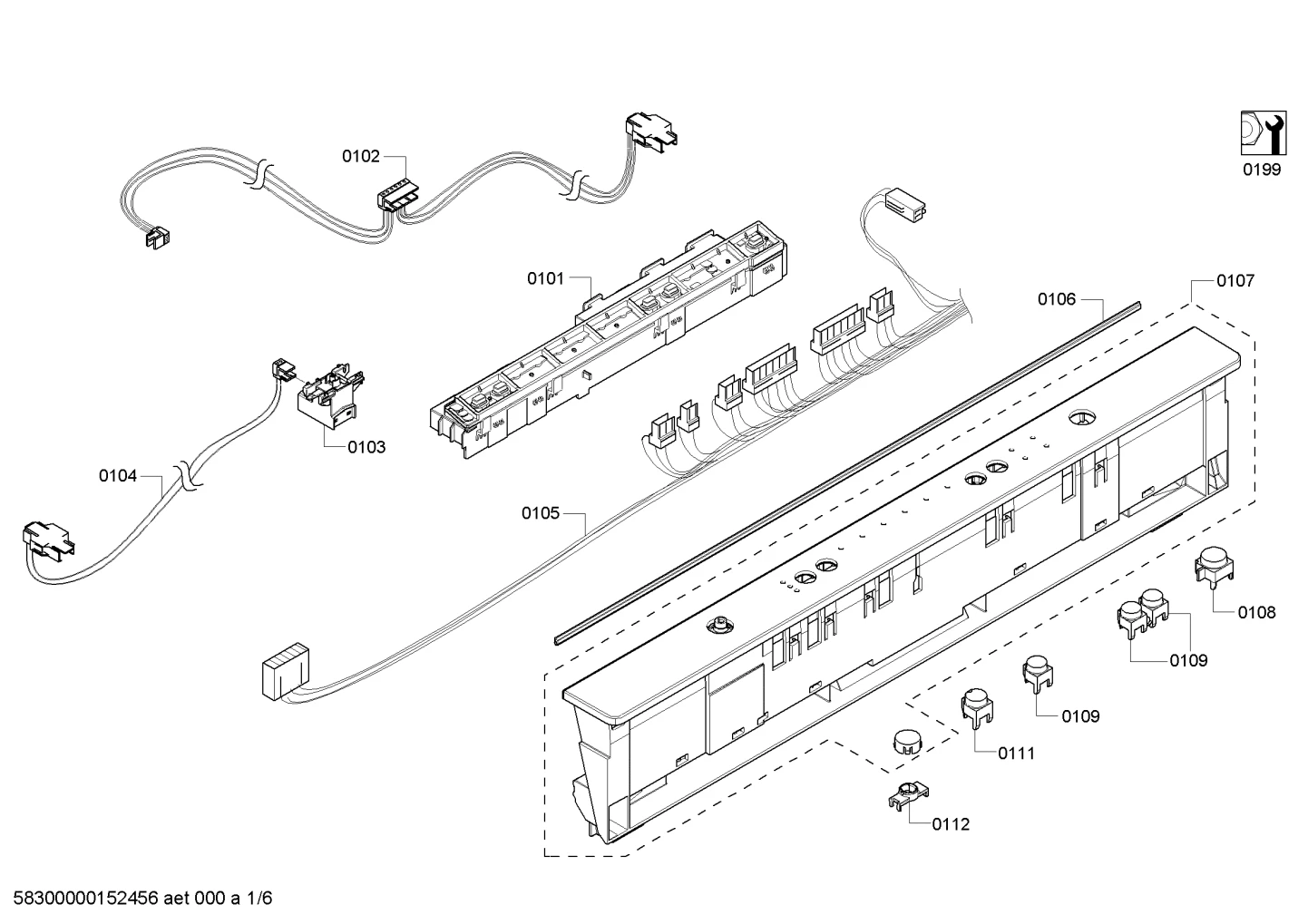

Switches, Seals & Gaskets (0101-0199)
Parts in Switches, Seals & Gaskets (0101-0199)
12 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | Operating module | $128.66 PartSelect |
| 0102 |  | Cable | $62.10 Part Advantage |
| 0103 |  | On/Off Main Switch | $21.35 Part Advantage |
| 0104 | | Cable | $62.10 Part Advantage |
| 0105 |  | Cable harness | $151.95 ApplianceParts Pro |
| 0106 |  | Sealing | $22.47 ApplianceParts Pro |
| 0107 |  | Panel-facia | $88.60 Part Advantage |
| 0108 |  | Key | $5.18 RepairClinic |
| 0109 |  | Key | $3.45 RepairClinic |
| 0111 |  | Key | $14.09 PartSelect |
| 0112 |  | Key | - |
| 0199 |  | Part not included in this appliance | - |
