Model
Bosch SHX84AAF5N/01
Dishwasher
Parts Sections (7)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
SHX84AAF5N/01Dishwasher
7 diagrams113 parts
Parts Sections (7)
Diagram

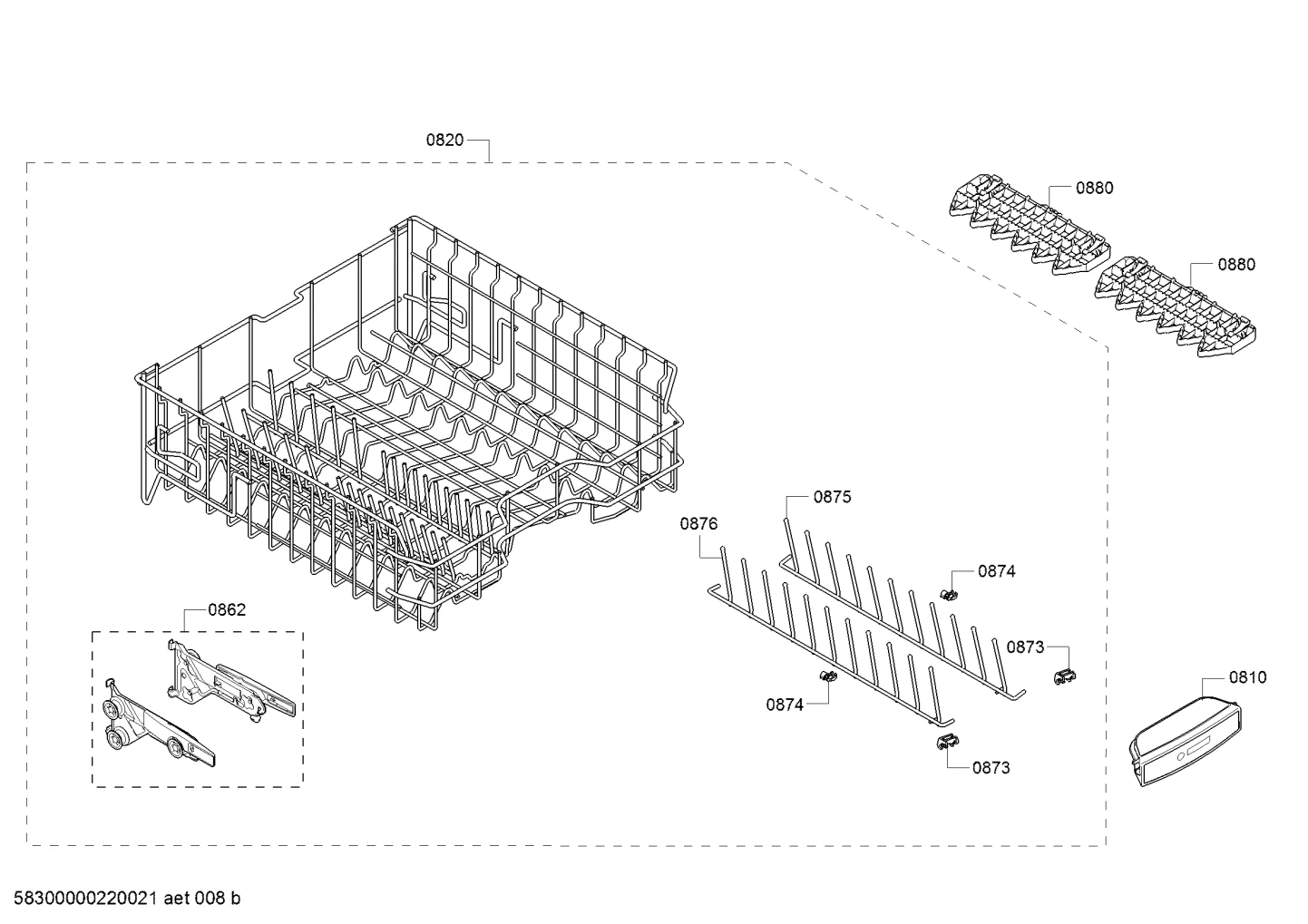

Baskets & Wheels, Flaps & Holders (0810-8110)
Parts in Baskets & Wheels, Flaps & Holders (0810-8110)
10 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0810 |  | Handle | $8.10 ApplianceParts Pro |
| 0820 |  | 00775433NLA Crockery basket | Discontinued |
| 0862 |  | Rail-pull out | $61.09 |
| 0873 |  | Holder | $3.35 Part Advantage |
| 0874 |  | Holder | $3.35 Part Advantage |
| 0875 |  | 00752982NLA Insert | Discontinued |
| 0876 |  | 00752981NLA Insert | Discontinued |
| 0880 |  | Cup rack | $6.41 PartSelect |
| 8102 |  | Micro-Filter | $11.95 ApplianceParts Pro |
| 8110 |  | Tall/Large Item Sprinkler Head | $15.93 RepairClinic |
