Model
Bosch SHX88CL5N/01
Dishwasher
Parts Sections (9)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
SHX88CL5N/01Dishwasher
9 diagrams146 parts

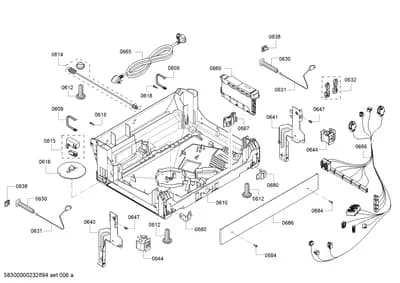

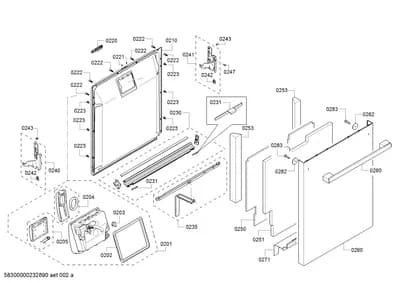

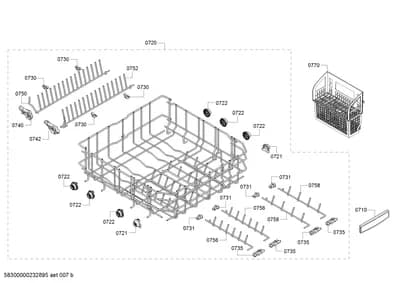

Parts Sections (9)
Diagram

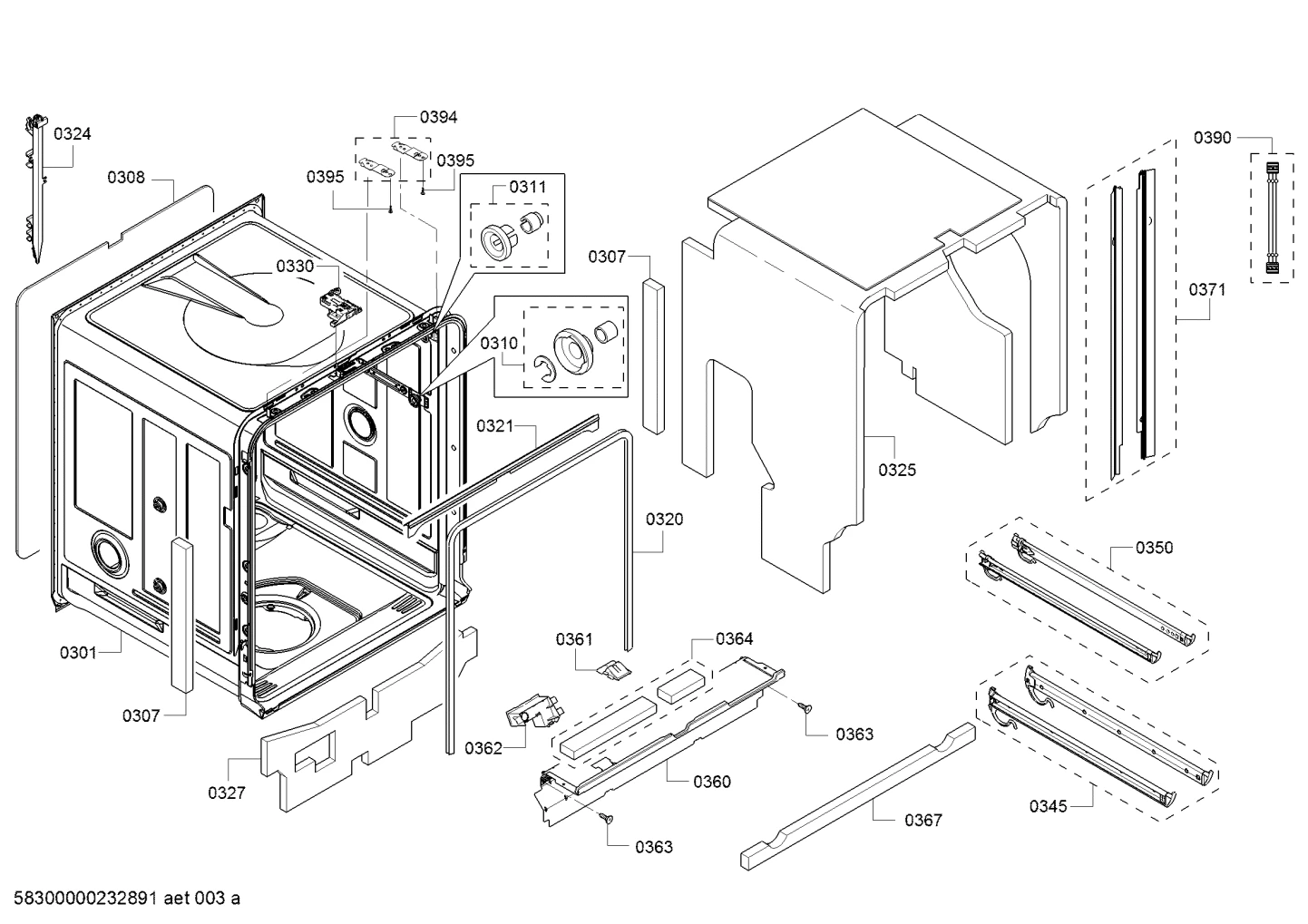

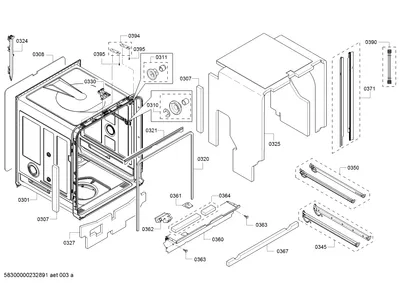

Rails, Screws (0307-0395)
Parts in Rails, Screws (0307-0395)
23 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0307 |  | Insulating part | $3.77 ApplianceParts Pro |
| 0308 |  | Insulating part | - |
| 0310 |  | Repair set-role | $46.33 ApplianceParts Pro |
| 0311 |  | Repair set-role | $93.10 PartSelect |
| 0320 |  | Sealing | $11.30 Part Advantage |
| 0321 |  | Strip | $4.19 Part Advantage |
| 0324 |  | Holder | $5.57 ApplianceParts Pro |
| 0325 |  | Insulating part | $42.80 Parts Dr |
| 0327 | | Insulating part | - |
| 0330 |  | Lock | $19.25 Part Advantage |
| 0345 | | Rail | $16.32 ApplianceParts Pro |
| 0350 | | Rail | $10.86 ApplianceParts Pro |
| 0360 |  | Cover sheet | $24.64 ApplianceParts Pro |
| 0361 |  | Housing | $27.76 Parts Dr |
| 0362 |  | Display module | - |
| 0363 |  | Screw | $9.38 RepairClinic |
| 0364 |  | Insulating part | $12.38 Parts Dr |
| 0367 | | Insulating part | - |
| 0371 |  | Strip | $10.88 Part Advantage |
| 0390 | | Cable harness | $6.68 ApplianceParts Pro |
| 0390 | | Cable harness | - |
| 0394 |  | Mounting Bracket | $6.70 Part Advantage |
| 0395 |  | Screw | $4.19 Part Advantage |
