ModelBosch
SHX89PW75N/52Dishwasher
8 diagrams157 parts
Parts Sections (8)
Diagram

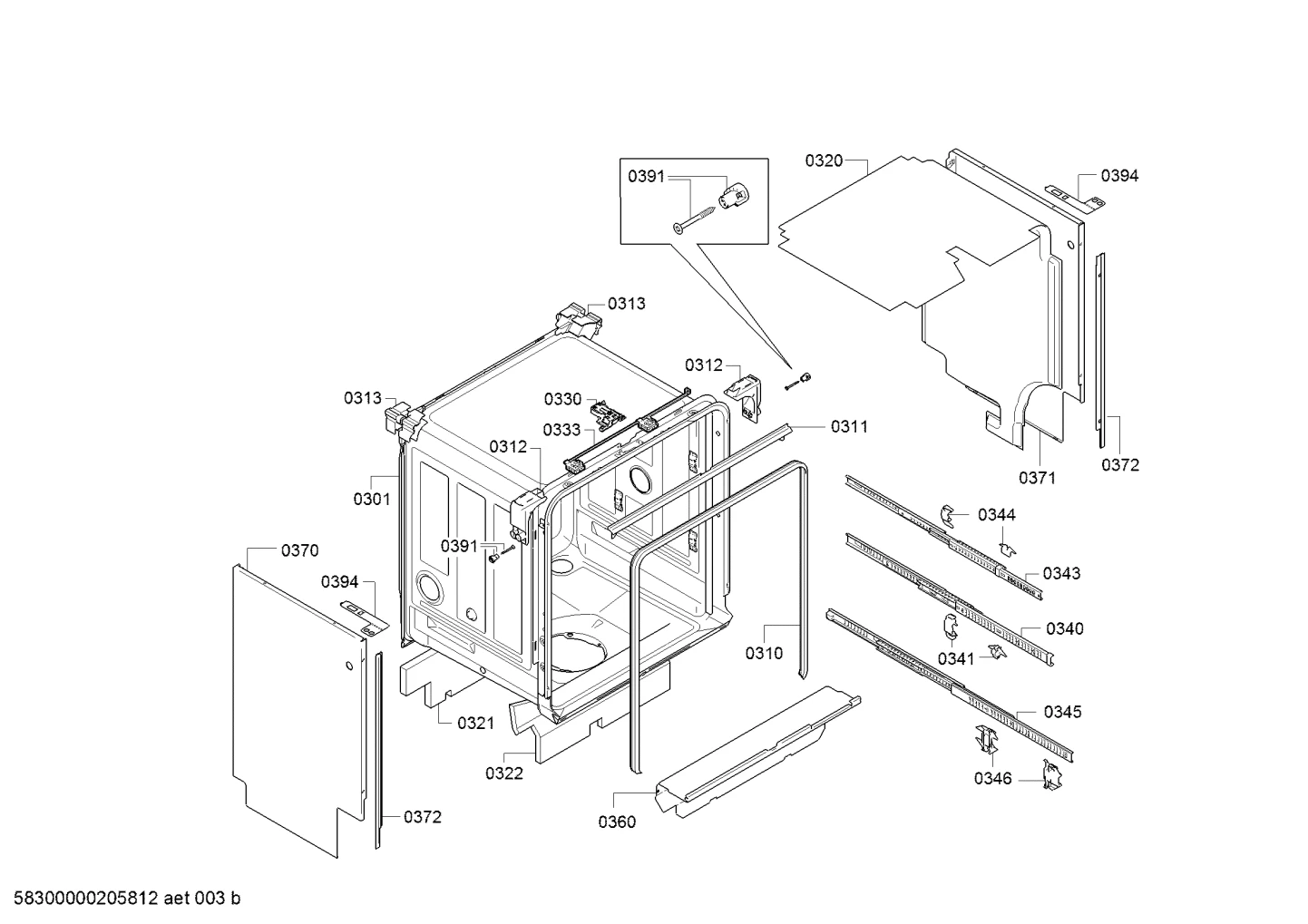

Flaps & Holders, Mounting & Fixing (0310-8102)
Parts in Flaps & Holders, Mounting & Fixing (0310-8102)
24 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0310 |  | Seal | $65.83 Part Advantage |
| 0311 |  | Strip | $37.65 Parts Dr |
| 0312 |  | Spacer | - |
| 0313 |  | Spacer | - |
| 0320 |  | Insulating plate | - |
| 0321 |  | Insulating plate | - |
| 0322 |  | Insulating plate | - |
| 0330 |  | Lock | $28.04 Part Advantage |
| 0333 |  | Interior lighting | - |
| 0340 |  | Rack guide rail | - |
| 0341 |  | Holder | - |
| 0343 |  | Rack guide rail | $68.86 PartSelect |
| 0344 |  | Holder | $12.41 ApplianceParts Pro |
| 0345 |  | Rack guide rail | $58.79 Part Advantage |
| 0346 |  | Holder | $16.25 ApplianceParts Pro |
| 0360 |  | Base | $51.98 ApplianceParts Pro |
| 0370 |  | Panel side | - |
| 0371 |  | Panel side | - |
| 0372 |  | Strip | - |
| 0391 |  | Left/Right Attachment Brackets | $25.91 Parts Dr |
| 0394 |  | Fixing kit | $19.67 Part Advantage |
| 8100 |  | Attachment Brackets | $20.57 ApplianceParts Pro |
| 8101 |  | Door Hinge Covers | - |
| 8102 |  | Micro-Filter | $11.95 ApplianceParts Pro |
