Model
Bosch SHX99A15UC/40
Dishwasher
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
SHX99A15UC/40Dishwasher
6 diagrams159 parts
Parts Sections (6)
Diagram

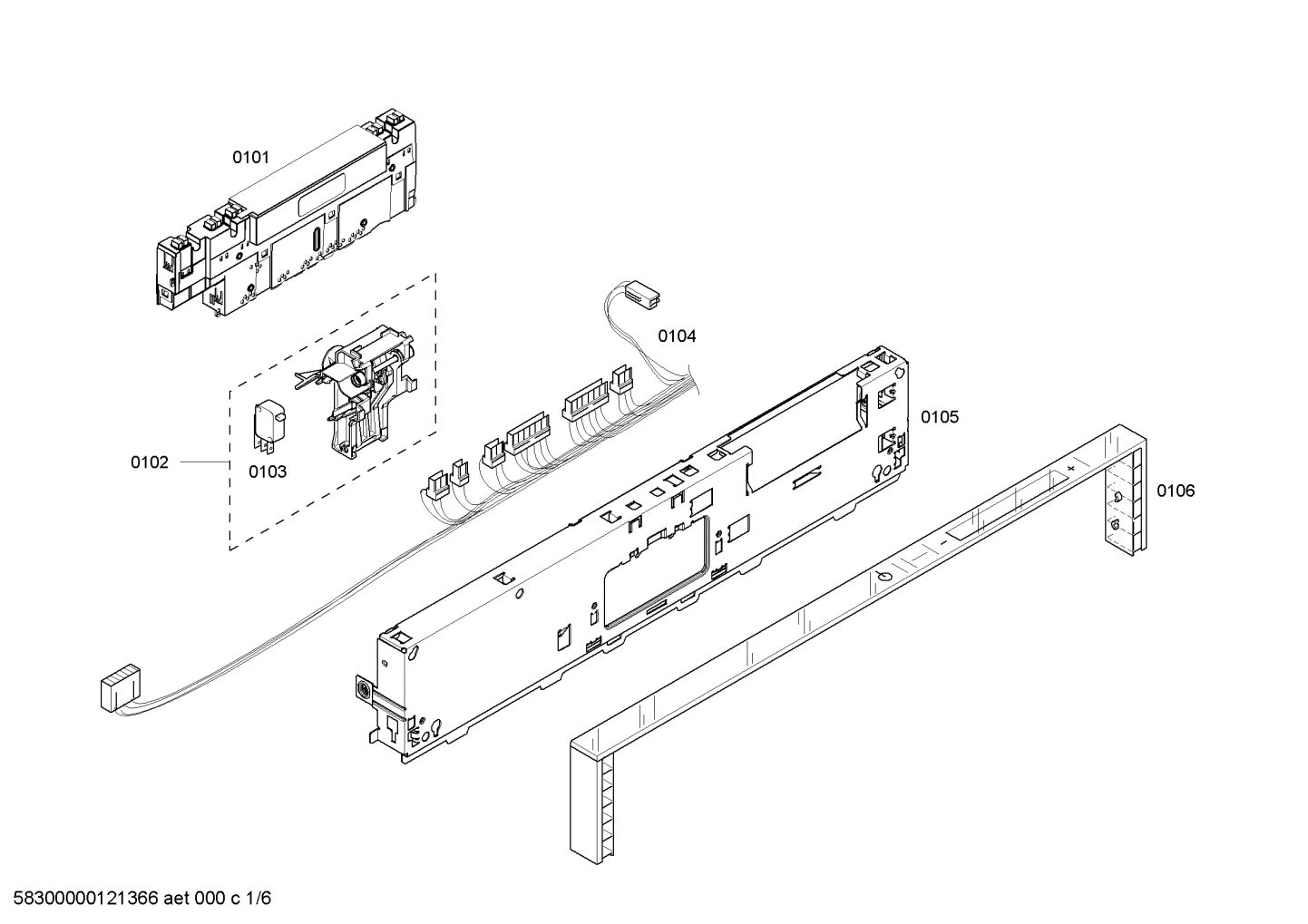

Switches, Hoses (0101-8103)
Parts in Switches, Hoses (0101-8103)
9 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | 00498022NLA Operating module | Discontinued |
| 0102 |  | Ball Bearing Door Latch | $48.55 Part Advantage |
| 0103 |  | Switch | - |
| 0104 |  | Cable harness | - |
| 0105 |  | Frame | - |
| 0106 | | 00242755NLA Panel-facia | Discontinued |
| 8101 |  | Micro-Filter | $11.95 ApplianceParts Pro |
| 8102 |  | Drain Hose Extension Kit | $18.84 Part Advantage |
| 8103 |  | Power cord extended | $38.40 PartSelect |
