Model
Bosch SHXM98W75N/10
Dishwasher
Parts Sections (6)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
SHXM98W75N/10Dishwasher
6 diagrams132 parts
Parts Sections (6)
Diagram

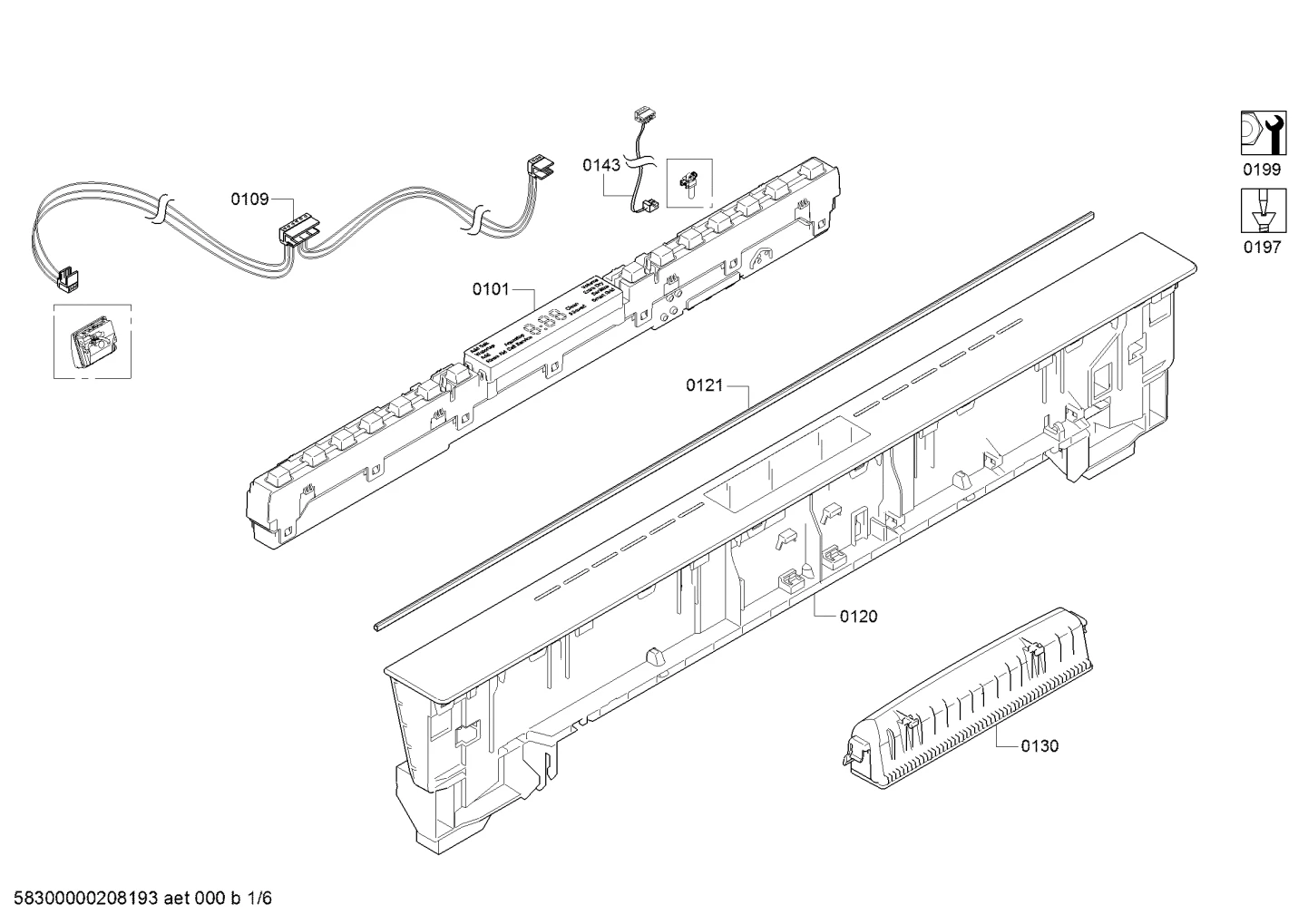

Door & Housing, Seals & Gaskets (0101-8310)
Parts in Door & Housing, Seals & Gaskets (0101-8310)
13 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0101 |  | Operating module programmed | $127.49 Parts Dr |
| 0109 |  | Cable harness | $12.44 Parts Dr |
| 0120 |  | Panel-facia | $46.00 RepairClinic |
| 0121 |  | Sealing | $3.35 Part Advantage |
| 0130 |  | Handle | $11.30 Part Advantage |
| 0143 |  | Cable | $62.10 Part Advantage |
| 0197 |  | Installation set | $42.29 Parts Dr |
| 0199 |  | Lid | $34.25 ApplianceParts Pro |
| 0199 |  | Repair-set | $49.38 Part Advantage |
| 8102 |  | Micro-Filter | $11.95 ApplianceParts Pro |
| 8130 |  | 00617210NLA Hard Water Test Strip | Discontinued |
| 8301 |  | Instruction manual | - |
| 8310 | | Brochure | - |
