Model
Bosch SMI9022GB/01
Dishwasher
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
SMI9022GB/01Dishwasher
1 diagram73 parts
Parts Sections (1)
Diagram

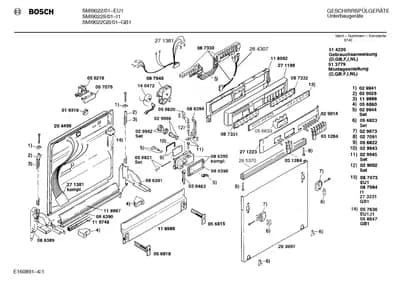

Seals & Gaskets (0001-0163)
Parts in Seals & Gaskets (0001-0163)
73 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0001 |  | Switch-door | $42.34 ApplianceParts Pro |
| 0002 |  | 00027091NLA Bolt | Discontinued |
| 0003 |  | Spring | $16.68 ApplianceParts Pro |
| 0004 |  | Spring | $15.95 ApplianceParts Pro |
| 0005 |  | Holder | - |
| 0007 |  | Adjusting device | - |
| 0009 | | Sealing | - |
| 0010 |  | Tripping device | - |
| 0011 |  | Plunger | - |
| 0016 |  | Lock | $89.95 ApplianceParts Pro |
| 0017 |  | Handle | - |
| 0018 |  | 00056481NLA Handle | Discontinued |
| 0021 | | Lever | - |
| 0022 | | 00056821NLA Spring | Discontinued |
| 0025 | | Insert | - |
| 0027 |  | Hinge | $55.29 PartSelect |
| 0028 | | Sealing | - |
| 0029 |  | Hinge | - |
| 0030 | | 00086394NLA Lever | Discontinued |
| 0032 | | Sealing | - |
| 0040 | | 00118987NLA Rail | Discontinued |
| 0042 | | Panel frame | - |
| 0043 | | Strip | - |
| 0044 |  | Sealing | - |
| 0045 | | Spring | - |
| 0046 | | Motor | - |
| 0058 |  | Sealing | - |
| 0062 |  | Sealing | $18.34 ApplianceParts Pro |
| 0063 |  | Fixture | - |
| 0064 | | 00022483NLA Suspension | Discontinued |
| 0065 |  | Impeller jug | - |
| 0068 |  | Sealing | - |
| 0071 | | Sieve | - |
| 0072 |  | Sealing | - |
| 0073 | | Latch | - |
| 0078 |  | Sealing | - |
| 0080 | | Clip | - |
| 0081 | | 00030349NLA Holder | Discontinued |
| 0085 |  | Sealing | - |
| 0087 | | Filter-large | - |
| 0092 | | Insert | - |
| 0102 | | 00081709NLA Clamp | Discontinued |
| 0103 |  | Filter-micro | $20.86 RepairClinic |
| 0106 | | 00084240NLA Installation set | Discontinued |
| 0108 |  | Hose | - |
| 0113 |  | Hose | - |
| 0114 | | 00112728NLA Sieve | Discontinued |
| 0117 |  | Hose | - |
| 0119 | | Spray arm | - |
| 0126 | | 00204587NLA Air channel exhaust | Discontinued |
| 0129 |  | Switch | $18.98 RepairClinic |
| 0130 |  | Float | - |
| 0132 |  | Foot | - |
| 0134 | | Guide | - |
| 0137 | | 00086400NLA Suspension | Discontinued |
| 0140 |  | Steam Safety Sheet | - |
| 0142 | | Bowl | - |
| 0143 | | Rail | - |
| 0144 | | Panel side | - |
| 0145 | | Panel side | - |
| 0146 |  | Clip | $9.36 ApplianceParts Pro |
| 0149 |  | Roller set | $9.50 RepairClinic |
| 0152 | | Handle | - |
| 0153 |  | Anti-Tarnish Silverware Holder | $52.36 PartSelect |
| 0154 | | Rail-pull out | - |
| 0155 | | Cup rack | - |
| 0156 | | 00286932NLA Insert | Discontinued |
| 0157 |  | 00282979NLA Spray arm | Discontinued |
| 0158 |  | Dishwasher Rack | $229.93 PartSelect |
| 0160 |  | 00203987NLA Basket | Discontinued |
| 0161 |  | 00286931NLA Insert | Discontinued |
| 0162 | | 00282977NLA Grid | Discontinued |

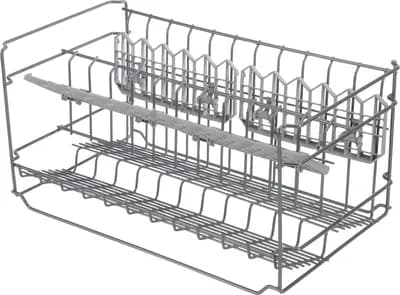

| 0163 |  | Cup & Wine Glass Basket | $82.17 RepairClinic |
