Model
Bosch SMU4052US/09
Dishwasher
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
SMU4052US/09Dishwasher
1 diagram121 parts
Parts Sections (1)
Diagram

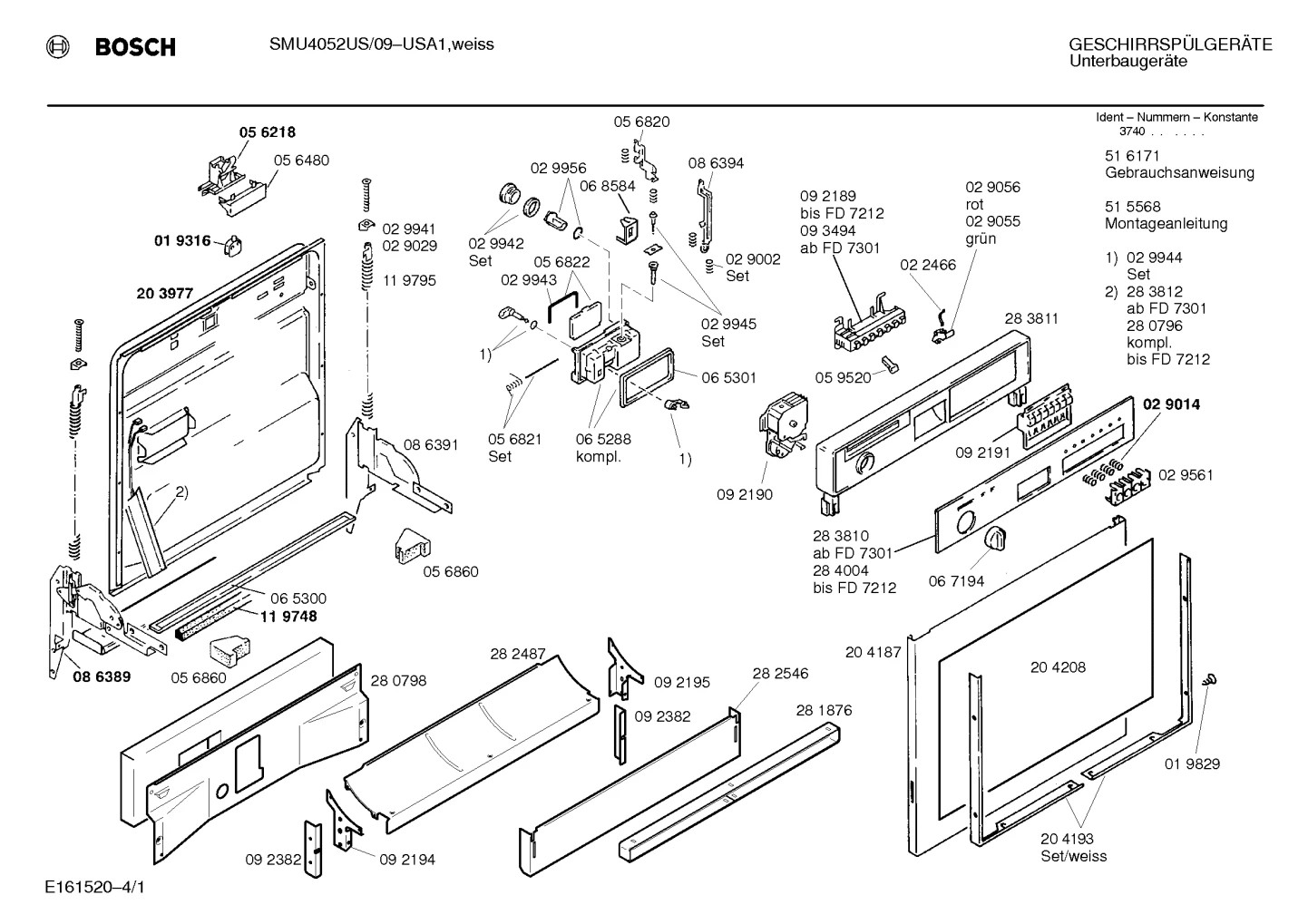

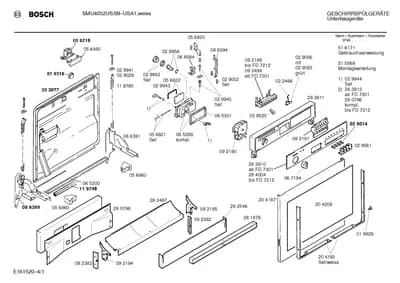

Seals & Gaskets (0001-0146)
Parts in Seals & Gaskets (0001-0146)
129 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0001 |  | Switch-door | $42.34 ApplianceParts Pro |
| 0002 |  | Screw | $5.75 RepairClinic |
| 0003 |  | Spring | - |
| 0004 |  | Spring | $16.68 ApplianceParts Pro |
| 0005 |  | Spring | $15.95 ApplianceParts Pro |
| 0006 |  | Holder | - |
| 0007 | | 00029055NLA Display | Discontinued |
| 0008 |  | Display | - |
| 0009 |  | Adjusting device | - |
| 0011 | | Sealing | - |
| 0012 |  | Tripping device | - |
| 0013 |  | Plunger | - |
| 0015 |  | Lock | $89.95 ApplianceParts Pro |
| 0018 | | Lever | - |
| 0019 | | 00056821NLA Spring | Discontinued |
| 0021 | | Insert | - |
| 0022 |  | Handle | - |
| 0024 | | Knob | - |
| 0025 | | Lightguide | - |
| 0026 | | 00065300NLA Seal-door | Discontinued |
| 0027 |  | Hinge | $55.29 PartSelect |
| 0028 |  | Hinge | - |
| 0029 | | 00086394NLA Lever | Discontinued |
| 0031 | | Sealing | - |
| 0032 | | 00092189NLA Switch-selector | Discontinued |
| 0033 |  | 00092190NLA Control unit | Discontinued |
| 0035 | | Holder | - |
| 0036 | | Holder | $5.68 RepairClinic |
| 0037 | | 00092382NLA Bracket | Discontinued |
| 0038 |  | Sealing | - |
| 0039 |  | Spring | - |
| 0040 | | 00203977NLA Door-inner | Discontinued |
| 0041 | | Plate | - |
| 0042 |  | Strip-decor | - |
| 0043 | | Door-outer | - |
| 0045 | | Cable harness | - |
| 0046 | | 00286310NLA Panel | Discontinued |
| 0047 | | Base | - |
| 0048 | | Panel-base | - |
| 0049 | | 00298755NLA Panel frame | Discontinued |
| 0050 | | Base | - |
| 0052 | | Instruction Manual Gaggenau | - |
| 0053 | | Instruction Manual Gaggenau | - |
| 0054 | | Instruction Manual Gaggenau | - |
| 0055 | | Installation instructions | - |
| 0056 | | Installation instructions | - |
| 0057 | | Installation instructions | - |
| 0058 |  | Sealing | - |
| 0059 |  | Sealing | - |
| 0060 |  | Fixture | - |
| 0061 | | 00022483NLA Suspension | Discontinued |
| 0062 |  | Impeller jug | - |
| 0063 |  | Sealing | - |
| 0064 | | Latch | - |
| 0068 | | Clip | - |
| 0069 | | 00030349NLA Holder | Discontinued |
| 0070 | | 00032371NLA Regulator-temperature | Discontinued |
| 0071 |  | Sealing | - |
| 0072 | | Filter-large | - |
| 0073 | | Insert | - |
| 0074 |  | Hose | - |
| 0075 | | Hose | - |
| 0076 | | Housing | - |
| 0077 | | Cover | - |
| 0078 | | 00065293NLA Hose | Discontinued |
| 0079 | | Bearing plate | - |
| 0080 | | 00065298NLA Valve | Discontinued |
| 0081 | | Sealing | - |
| 0082 |  | Sealing | $18.34 ApplianceParts Pro |
| 0083 | | Sealing | - |
| 0084 | | 00065358NLA Regulator-temperature | Discontinued |
| 0085 | | 00081709NLA Clamp | Discontinued |
| 0086 |  | Filter-micro | $20.86 RepairClinic |
| 0089 | | 00084240NLA Installation set | Discontinued |
| 0090 |  | Hose | - |
| 0093 |  | Valve-magnet | $207.84 Parts Dr |
| 0094 |  | Pump-drain | - |
| 0094 | | Pump-drain | - |
| 0095 |  | Connection | - |
| 0096 | | Sealing | - |
| 0097 |  | Hose | - |
| 0098 | | 00112728NLA Sieve | Discontinued |
| 0099 |  | Hose | - |
| 0100 | | Spray arm | - |
| 0101 | | Motor | - |
| 0102 | | 00207539NLA Strip-decor | Discontinued |
| 0103 | | 00207540NLA Strip-decor | Discontinued |
| 0104 | | 00206981NLA Heating element | Discontinued |
| 0105 |  | Water inlet | $72.04 Part Advantage |
| 0106 | | 00280794NLA Hose-inlet | Discontinued |
| 0107 |  | 00298564replaces 00280795 Outlet hose | $23.02 Part Advantage |
| 0108 | | Sump | - |
| 0109 | | 00282217NLA Tube | Discontinued |
| 0110 |  | Strip | $12.95 ApplianceParts Pro |
| 0111 |  | Switch | $18.98 RepairClinic |
| 0112 |  | Float | - |
| 0113 | | 00154360NLA Foot | Discontinued |
| 0114 | | Guide | - |
| 0115 | | 00059516NLA Capacitor | Discontinued |
| 0116 | | Holder | - |
| 0117 | | 00086400NLA Suspension | Discontinued |
| 0118 | | 00092193NLA Support | Discontinued |
| 0119 |  | Steam Safety Sheet | - |
| 0121 | | Bowl | - |
| 0122 | | Rail | - |
| 0123 | | Panel side | - |
| 0124 | | Panel side | - |
| 0125 |  | Clip | $9.36 ApplianceParts Pro |
| 0126 |  | Roller set | - |
| 0127 |  | Roller Set | $16.33 Part Advantage |
| 0128 |  | Roller set | $9.50 RepairClinic |
| 0129 |  | Cutlery Basket | $38.50 Part Advantage |
| 0130 | | Cutlery Basket | $38.50 Part Advantage |
| 0131 | | Rail-pull out | - |
| 0132 |  | 00093044NLA Cup rack | Discontinued |
| 0133 | | 00286932NLA Insert | Discontinued |
| 0134 |  | 00282979NLA Spray arm | Discontinued |
| 0135 |  | 00203987NLA Basket | Discontinued |
| 0136 |  | Dishwasher Rack | $229.93 PartSelect |
| 0137 | | Cup rack | - |
| 0138 | | 00282977NLA Grid | Discontinued |
| 0139 | | 00093494NLA Switch-selector | Discontinued |
| 0140 | | Cable harness | - |
| 0141 | | 00286310NLA Panel | Discontinued |
| 0142 | | Heating element | - |
| 0143 | | Fixture | - |
| 0144 | | Support | - |
| 0145 |  | 00067195NLA Regulator-temperature | Discontinued |
| 0146 | | 00068584NLA Guide | Discontinued |
