Model
Bosch SPI5432GB/03
Dishwasher
Parts Sections (1)
How to find your part
Find part on diagram
Zoom in & tap a highlighted area
Tap "Parts" tab
Switch to the parts list view
See details & prices
Your selected part is highlighted
ModelBosch
SPI5432GB/03Dishwasher
1 diagram42 parts
Parts Sections (1)
Diagram

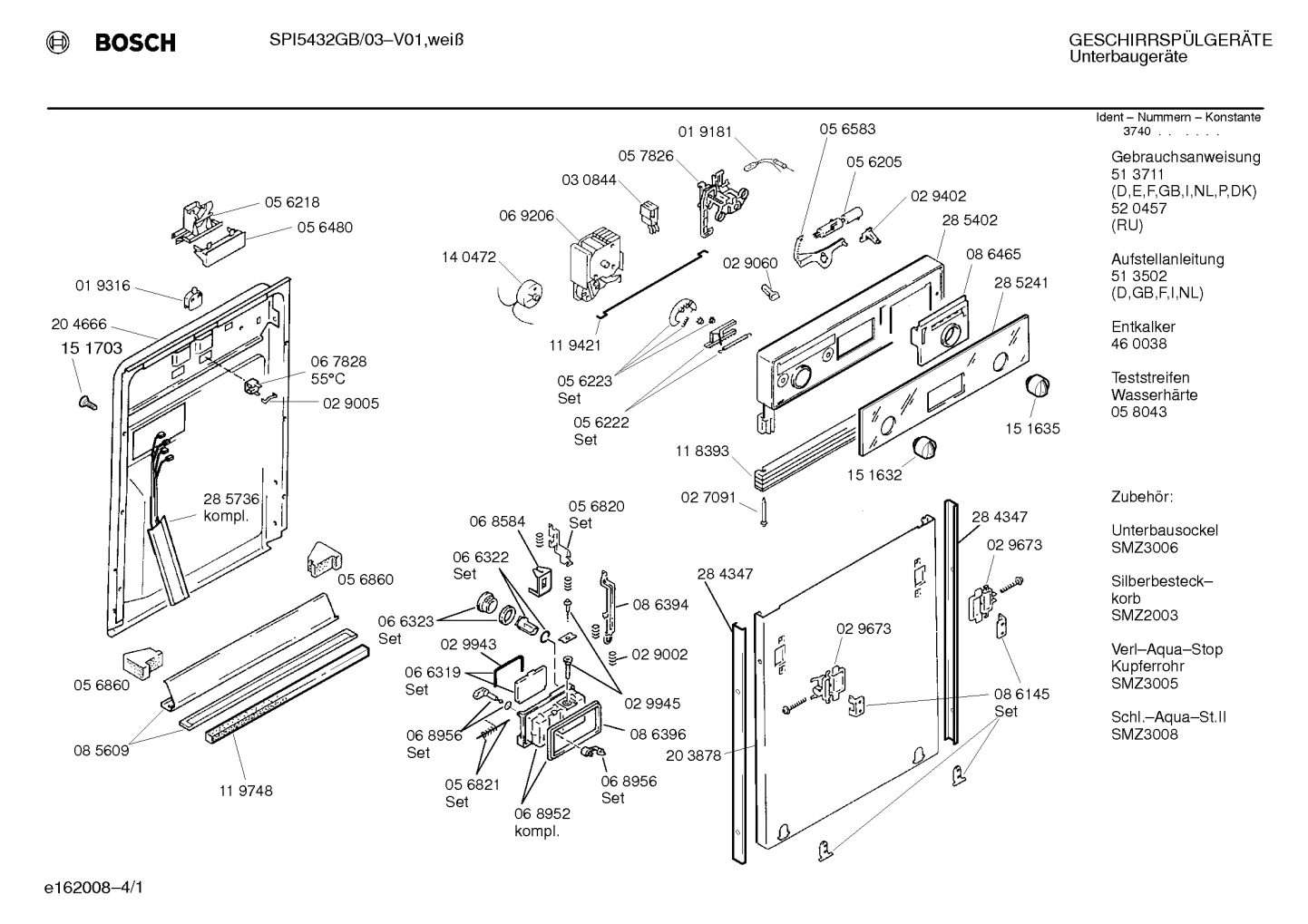

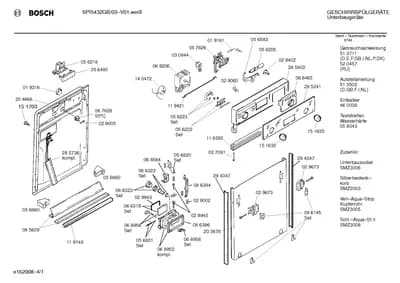

Seals & Gaskets, Flaps & Holders (0002-0158)
Parts in Seals & Gaskets, Flaps & Holders (0002-0158)
44 parts
| Ref | Image | Part / Description | Best Price |
|---|---|---|---|
| 0002 |  | Switch-door | $42.34 ApplianceParts Pro |
| 0003 |  | 00027091NLA Bolt | Discontinued |
| 0004 |  | Spring | $16.68 ApplianceParts Pro |
| 0006 | | Clip | - |
| 0007 |  | Holder | - |
| 0008 | | Holder | - |
| 0012 |  | Lid | $17.58 Part Advantage |
| 0013 | | Sealing | - |
| 0014 |  | Tripping device | $25.07 Parts Dr |
| 0015 |  | Plunger | - |
| 0016 | | Dosing device | - |
| 0019 |  | Lock | $89.95 ApplianceParts Pro |
| 0020 |  | Display-programme | - |
| 0021 | | 00056223NLA Drive | Discontinued |
| 0024 |  | Handle | - |
| 0026 | | Lever | - |
| 0027 | | 00056821NLA Spring | Discontinued |
| 0028 |  | Lid | $13.95 ApplianceParts Pro |
| 0029 | | Switch-selector | - |
| 0033 | | 00086394NLA Lever | Discontinued |
| 0034 | | Sealing | - |
| 0036 |  | 00068952NLA Dispenser | Discontinued |
| 0043 |  | Sealing | - |
| 0044 | | Motor | - |
| 0056 |  | Sealing | - |
| 0057 | | Sealing | - |
| 0058 | | Latch | - |
| 0073 |  | Switch | - |
| 0085 |  | Screw | $6.70 Part Advantage |
| 0088 |  | Sealing | - |
| 0101 |  | Hose | - |
| 0109 |  | Clip | $9.36 ApplianceParts Pro |
| 0110 |  | Roller set | - |
| 0111 |  | Roller Set | $16.33 Part Advantage |
| 0113 |  | Switch | $18.98 RepairClinic |
| 0114 |  | Float | - |
| 0122 |  | Strip | $12.95 ApplianceParts Pro |
| 0123 |  | Foot | - |
| 0137 | | Rail | - |
| 0142 | | Filter-large | - |
| 0143 |  | Roller set | $9.50 RepairClinic |
| 0145 | | Cup rack | - |
| 0155 | | 00068584NLA Guide | Discontinued |
| 0158 |  | Holder | $14.40 ApplianceParts Pro |
